Professional Supplier Fully Ground HSS Jobber Drill HSS Co Drills M42 HSS Twist Drill Bit (SED-HT42)

Quantity:
Inquire Add to Basket

  • Customized

  • DIN

  • Jobber-length

  • Twist Drill Bit

  • High Speed Steel

  • Metal Drilling

  • SED-HT42

  • 1mm-20mm

  • Bright or Tin-Coated

  • 1000PCS/Size

  • Fully Ground

  • PVC,Box,Setcase,Tube

  • PVC Bag, Blister Card, Plastic Box, Set Case

  • HSS

  • EASYDRILL

  • China

  • 820750900

  • 100, 000PCS/Month

  • US$ 10/Piece 1 Piece(Min.Order) | Request Sample

Product Description

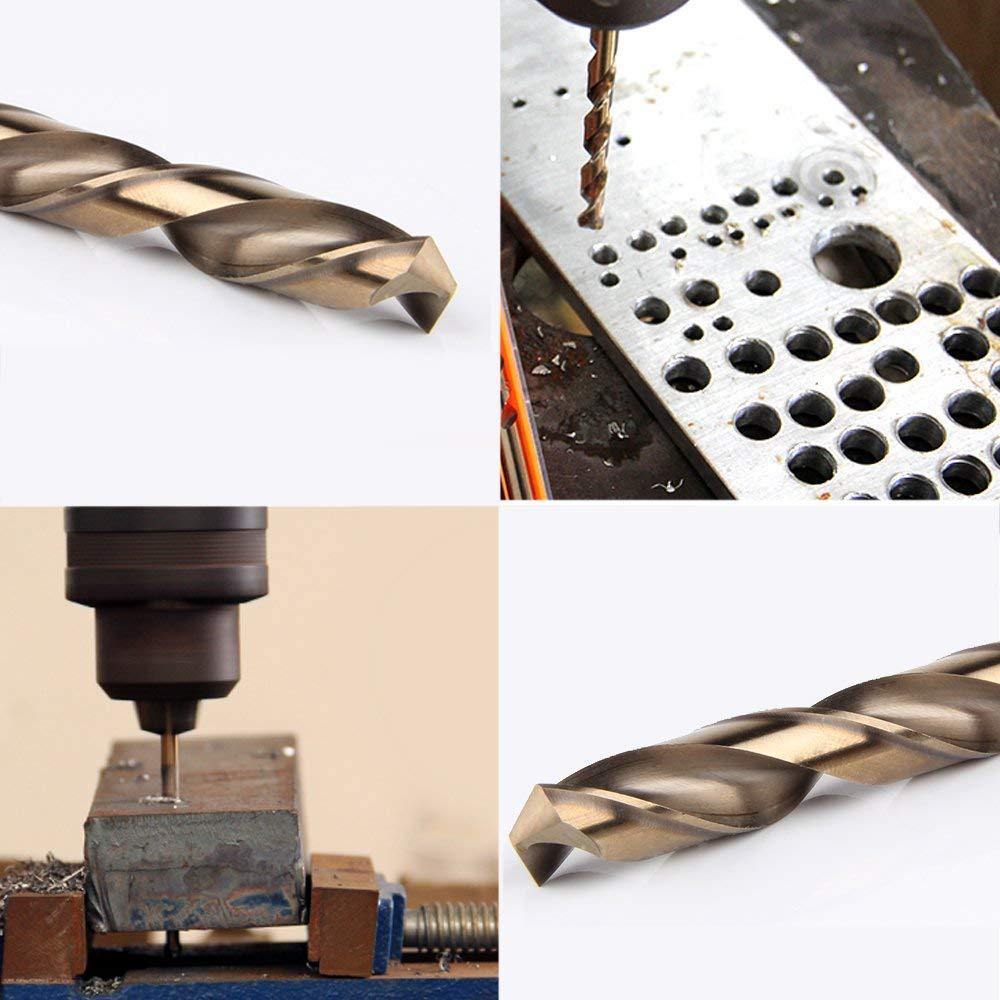

Professional supplier Fully Ground HSS jobber drill HSS Co drills M42 HSS Twist Drill Bit

1. Material: 4241, 4341, 9341, 6542, M2, M35, and M42 +Co 5% etc. (pic M42)
2. Manufacturing Art: Fully ground, roll forged and edge forged twist drill (Pic fully ground)
3. Application: For drilling in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastic,or wood.
4. Packing: Paper box, or Plastic box,punch bag,set case etc
5. Dia Size: 0.2mm-21mm
6.Surface finish:bright white,black,tin-coated, black&yellow,bronze coated etc
7.Standard: DIN338,DIN345,DIN340,DIN1897 etc
8.135 split point angle or 118 degree
Diameter (mm) Flute Length(mm) Overall Length (mm) Diameter (mm) Flute Length(mm) Overall Length(mm) Diameter (mm) Flute Length(mm) Overall Length(mm)
0.2 2.5 19.0 5.6 57.0 93.0 11.0 94.0 142.0
0.3 3.0 19.0 5.7 57.0 93.0 11.1 94.0 142.0
0.4 5.0 20.0 5.8 57.0 93.0 11.2 94.0 142.0
0.5 6.0 22.0 5.9 57.0 93.0 11.3 94.0 142.0
0.6 7.0 24.0 6.0 57.0 93.0 11.4 94.0 142.0
0.7 9.0 28.0 6.1 63.0 101.0 11.5 94.0 142.0
0.8 10.0 30.0 6.2 63.0 101.0 11.6 94.0 142.0
0.9 11.0 32.0 6.3 63.0 101.0 11.7 94.0 142.0
1.0 12.0 34.0 6.4 63.0 101.0 11.8 94.0 142.0
1.1 14.0 36.0 6.5 63.0 101.0 11.9 101.0 151.0
1.2 16.0 38.0 6.6 63.0 101.0 12.0 101.0 151.0
1.3 16.0 38.0 6.7 63.0 101.0 12.1 101.0 151.0
1.4 18.0 40.0 6.8 69.0 109.0 12.2 101.0 151.0
1.5 18.0 40.0 6.9 69.0 109.0 12.3 101.0 151.0
1.6 20.0 43.0 7.0 69.0 109.0 12.4 101.0 151.0
1.7 20.0 43.0 7.1 69.0 109.0 12.5 101.0 151.0
1.8 22.0 46.0 7.2 69.0 109.0 12.6 101.0 151.0
1.9 22.0 46.0 7.3 69.0 109.0 12.7 101.0 151.0
2.0 24.0 49.0 7.4 69.0 109.0 12.8 101.0 151.0
2.1 24.0 49.0 7.5 69.0 109.0 12.9 101.0 151.0
2.2 27.0 53.0 7.6 75.0 117.0 13.0 101.0 151.0
2.3 27.0 53.0 7.7 75.0 117.0 13.1 101.0 151.0
2.4 30.0 57.0 7.8 75.0 117.0 13.2 101.0 151.0
2.5 30.0 57.0 7.9 75.0 117.0 13.3 108.0 160.0
2.6 30.0 57.0 8.0 75.0 117.0 13.4 108.0 160.0
2.7 33.0 61.0 8.1 75.0 117.0 13.5 108.0 160.0
2.8 33.0 61.0 8.2 75.0 117.0 13.6 108.0 160.0
2.9 33.0 61.0 8.3 75.0 117.0 13.7 108.0 160.0
3.0 33.0 61.0 8.4 75.0 117.0 13.8 108.0 160.0
3.1 36.0 65.0 8.5 75.0 117.0 13.9 108.0 160.0
3.2 36.0 65.0 8.6 81.0 125.0 14.0 108.0 160.0
3.3 36.0 65.0 8.7 81.0 125.0 14.3 114.0 169.0
3.4 39.0 70.0 8.8 81.0 125.0 14.5 114.0 169.0
3.5 39.0 70.0 8.9 81.0 125.0 14.8 114.0 169.0
3.6 39.0 70.0 9.0 81.0 125.0 15.0 114.0 169.0
3.7 39.0 70.0 9.1 81.0 125.0 15.3 120.0 178.0
3.8 43.0 75.0 9.2 81.0 125.0 15.5 120.0 178.0
3.9 43.0 75.0 9.3 81.0 125.0 15.8 120.0 178.0
4.0 43.0 75.0 9.4 81.0 125.0 16.0 120.0 178.0
4.1 43.0 75.0 9.5 81.0 125.0 16.3 125.0 184.0
4.2 43.0 75.0 9.6 87.0 133.0 16.5 125.0 184.0
4.3 47.0 80.0 9.7 87.0 133.0 16.8 125.0 184.0
4.4 47.0 80.0 9.8 87.0 133.0 17.0 125.0 184.0
4.5 47.0 80.0 9.9 87.0 133.0 17.3 130.0 191.0
4.6 47.0 80.0 10.0 87.0 133.0 17.5 130.0 191.0
4.7 47.0 80.0 10.1 87.0 133.0 17.8 130.0 191.0
4.8 52.0 86.0 10.2 87.0 133.0 18.0 130.0 191.0
4.9 52.0 86.0 10.3 87.0 133.0 18.5 135.0 198.0
5.0 52.0 86.0 10.4 87.0 133.0 18.8 135.0 198.0
5.1 52.0 86.0 10.5 87.0 133.0 19.0 135.0 198.0
5.2 52.0 86.0 10.6 87.0 133.0 19.3 140.0 205.0
5.3 52.0 86.0 10.7 94.0 142.0 19.5 140.0 205.0
5.4 57.0 93.0 10.8 94.0 142.0 19.8 140.0 205.0
5.5 57.0 93.0 10.9 94.0 142.0 20.0 140.0 205.0
Professional Supplier Fully Ground HSS Jobber Drill HSS Co Drills M42 HSS Twist Drill Bit (SED-HT42) Professional Supplier Fully Ground HSS Jobber Drill HSS Co Drills M42 HSS Twist Drill Bit (SED-HT42) Professional Supplier Fully Ground HSS Jobber Drill HSS Co Drills M42 HSS Twist Drill Bit (SED-HT42) Professional Supplier Fully Ground HSS Jobber Drill HSS Co Drills M42 HSS Twist Drill Bit (SED-HT42) Professional Supplier Fully Ground HSS Jobber Drill HSS Co Drills M42 HSS Twist Drill Bit (SED-HT42)
