DIN338 Jobber Length HSS Drills HSS M2 Twist Drill Bit with Amber&Black Coating (SED-TDB-AB)

Quantity:
  • Customized

  • DIN

  • Jobber-length

  • Twist Drill Bit

  • High Speed Steel

  • Metal Drilling

  • SED-TDB-AB

  • 1.0mm-20mm

  • Fully Ground or Forged

  • 1000PCS/Size

  • PVC Bag,Setcase,Plastic Box,Metal Box

  • 118 or 135

  • Spiral

  • PVC Bag, Blister Card, Plastic Box, Metal Box etc

  • ISO9001, SGS, CE

  • EASYDRILL

  • China

  • 820750900

  • 200, 000PCS/Month

  • US$ 1/Piece 1 Piece(Min.Order) | Request Sample

Product Description

DIN338 Jobber Length HSS drills HSS M2 Twist Drill Bit with amber&black coating for Metal, Stainless Steel, Aluminium


Type: Twist Drill Bits
Material: High Speed Steel, HSS and HSS Cobalt
Use: Metal Drilling
Process: Fully Ground
Standard: DIN338, Jobber length
Point Angle: 118 Degree 135
Shank: Parallel shank
Helix Angle: Type N Spiral Flute Right Hand
Size: 1-20mm, 1/16"-1", #1-#90, A-Z
Surface Finish: Black and Gold
Application: Heavy duty.
Product Name DIN338 Jobber Length HSS Twist Drill Bit with amber&black coating
Material HSS (HSS Cobalt is Available)
Process Fully Ground (Fully Ground, Rolled, Milled are Available)
Standard

DIN338 (Stub DIN1897, Long DIN340, Extra Long DIN1869,

Blacksmith Reduced Shank 10mm, 13mm, DIN345 Taper Shank are Available)

Jobber Length (Stub Screw Machine Length, Long Taper Length, Airctraft Extensoin,

Extra Long 12", 18", 24", Silver & Deming 1/2" Reduced Shank are Available)

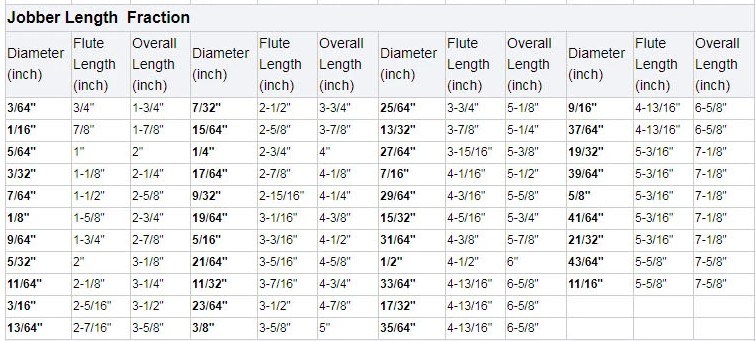

Size 1 - 20mm, 1/16" - 1" , A - Z, 1# - 90#
Point Type 118 Degree Regular Point ( 135 Degree Split Point, Turbo Max Point, Pilot Point are Available)

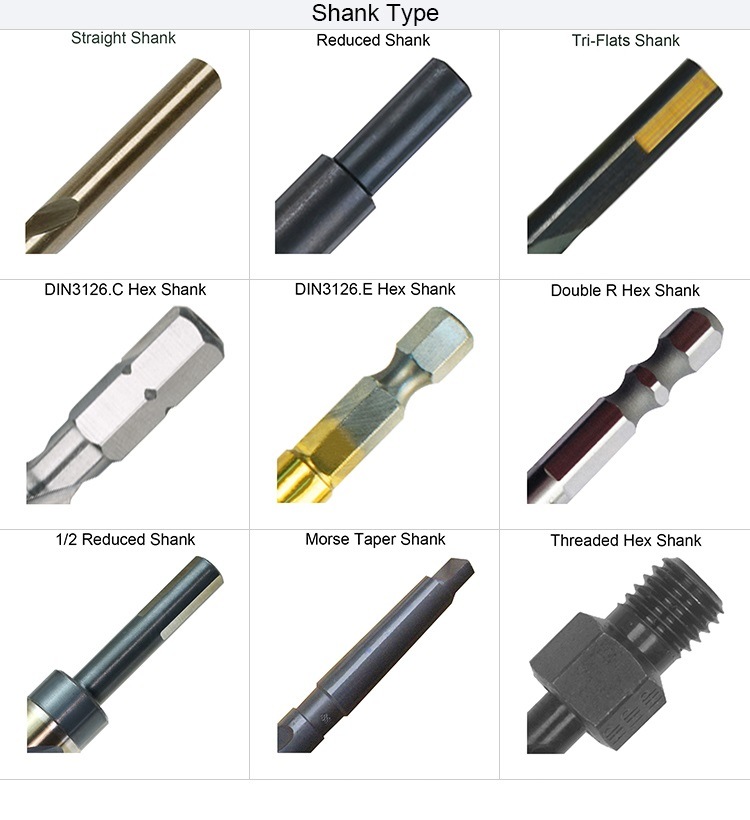

Shank Type

Straight Shank (Hex Shank, Tri-Flats Shank, Double R Hex Shank, Reduced Shank,

Threaded Hex Shank,Taper Shank are Available)

Helix Angle Regular Spiral Type N (Slow Spiral Type H, Fast Spiral Type W, Left Hand Spiral are Available)
Web & Flute Type Regular Web & Flute (Thick Web with Parabolic Flute, Heavy Duty Web with Regular Flute are Available)
Surface Finish Bright (Black Oxide, Amber Color, Titanium, Black & Gold, Black & Bright are Available)
Package 10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell.
Features

1.High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance.

2.Universal 118° point shape for drilling a wide selection of materials.

3.Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance.
4.Ground flutes provide fast chip removal to maximize accuracy and efficiency along the full working surface

of the bit.
5.DIN 338 jobber series drill bits are ideal for many trade and industrial projects.

DIN338 Jobber Length HSS Drills HSS M2 Twist Drill Bit with Amber&Black Coating (SED-TDB-AB)
DIN338 Jobber Length HSS Drills HSS M2 Twist Drill Bit with Amber&Black Coating (SED-TDB-AB)
DIN338 Jobber Length HSS Drills HSS M2 Twist Drill Bit with Amber&Black Coating (SED-TDB-AB)
DIN338 Jobber Length HSS Drills HSS M2 Twist Drill Bit with Amber&Black Coating (SED-TDB-AB) DIN338 Jobber Length HSS Drills HSS M2 Twist Drill Bit with Amber&Black Coating (SED-TDB-AB) DIN338 Jobber Length HSS Drills HSS M2 Twist Drill Bit with Amber&Black Coating (SED-TDB-AB)
DIN338 Jobber Length HSS Drills HSS M2 Twist Drill Bit with Amber&Black Coating (SED-TDB-AB)
DIN338 Jobber Length HSS Drills HSS M2 Twist Drill Bit with Amber&Black Coating (SED-TDB-AB)
