Standard Straight Shank HSS Drills Screw Machine HSS Left Hand Twist Drill Bit for Metal Drilling (SED-HTLS)

Quantity:
Inquire Add to Basket

  • Customized

  • DIN

  • Jobber-length

  • Twist Drill Bit

  • High Speed Steel

  • Metal Drilling

  • SED-HTLS

  • 3/64" - 1/2"

  • Fully Ground or Forged

  • 1000PCS/Size

  • PVC Bag,Setcase,Plastic Box,Metal Box

  • Bright White

  • PVC Bag, Blister Card, Plastic Box, Metal Box etc

  • ISO9001, SGS, CE

  • EASYDRILL

  • China

  • 820750900

  • 200, 000PCS/Month

  • US$ 10/Piece 1 Piece(Min.Order) | Request Sample

Product Description

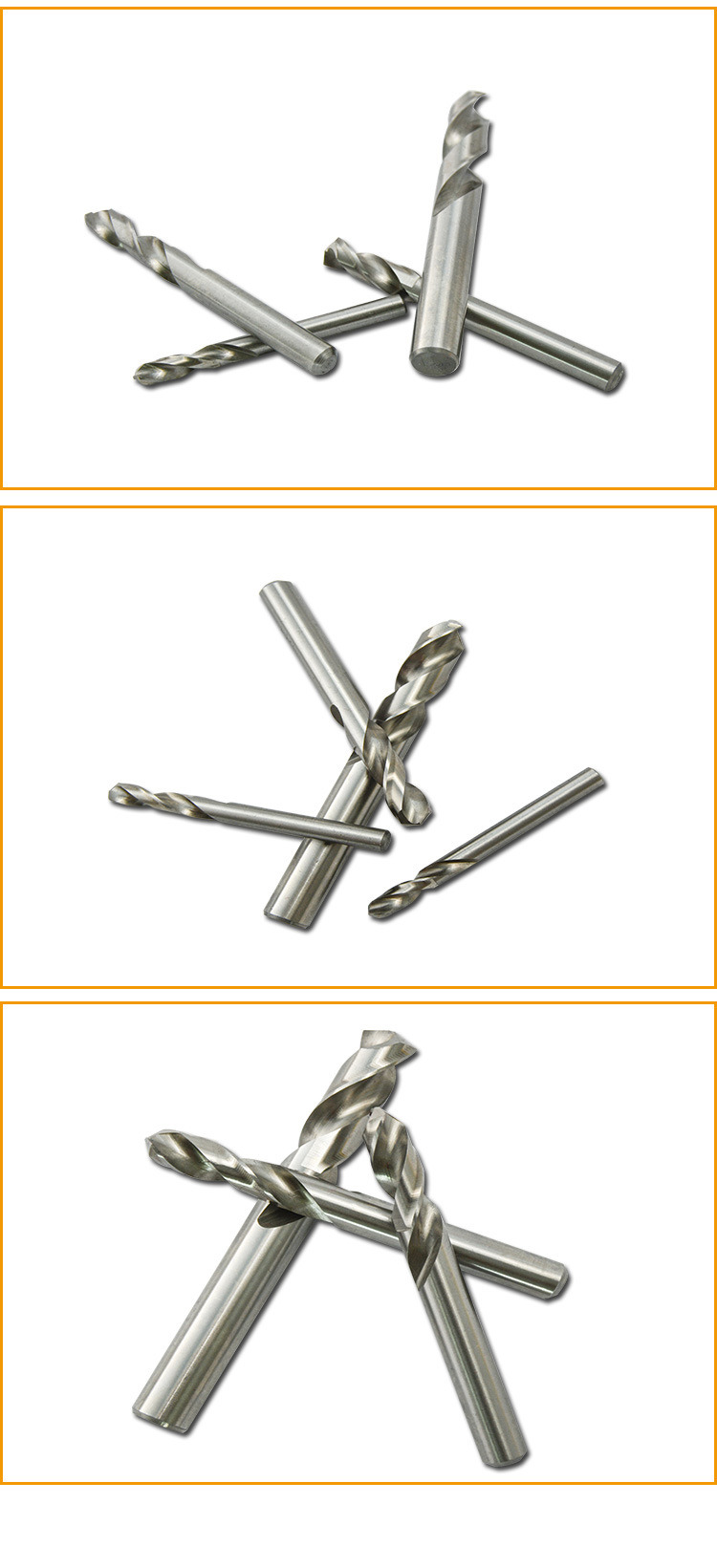

HSS drills Straight Shank Screw Machine HSS Left Hand Twist Drill Bit for Metal Drilling

Material:HSS and HSS Cobalt
Process:Fully Ground
Size: 3/64" - 1/2"
Standard:Jobber Length
Point Angle:118 Degree Split Point
Flute Type:Type N Left Hand Cutting
Shank Type:Straight Shank
Surface Finish:Amber Color
Usage:Metal Drilling
Surface Finish:bright.
Product Name Straight Shank Screw Machine Standard HSS Left Hand Drill Bit for Metal Drilling
Material HSS 4241 4341 6542-M2 (Cobalt 5% M35 is Also Available)
Process Fully Ground
Standard Screw Machine Length (DIN338 / Jobber Length is Also Available)

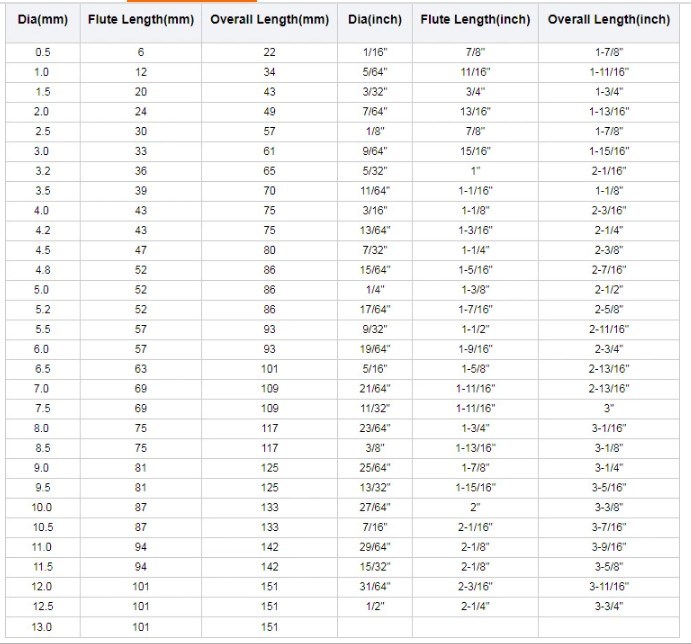

Size 3/64" - 1/2"
Point Angle 118 Degree (135 Degree Split Point is Available)
Flute Type Type N Left Hand Cutting (Left Hand Broken Screw Extractor is Available)
Surface Finish Bright (Amber Color, Titanium Coating, Black & Gold, Black Oxide, Rainbow Color are Also Available)
Package One Piece Packed in PVC Bag, Skin Card or Double Blister
Features

1.Left hand drill bits are ideal for extracting broken, righthand threaded studs and bolts.Designed for use in reversible

drills, lathes and milling machines.
2.Unlike right handed drill bits, the drilling action will assist to loosen sheared off bolts or studs rather than tightening them

further.And made for drilling into hardened steel bolts for creating pilot holes for screw extractors.
3.These unique drill bits are used with your drill operating in reverse and are designed to aid in drilling out broken and

sheared bolts and studs

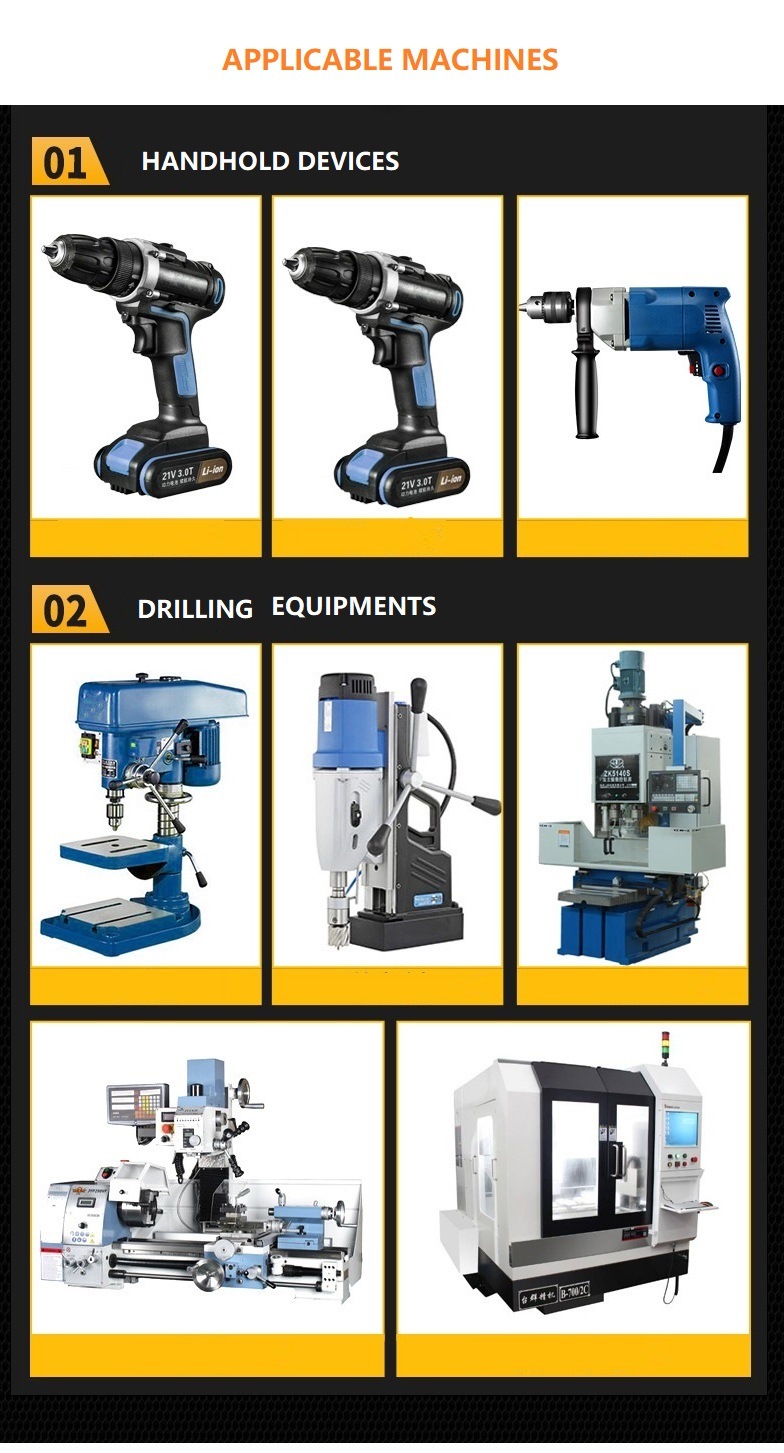

4.Left Hand Drills for use in left hand rotation of multiple spindles, gear driven drilling heads, screw machine operations, and lathes.
5.Bit is constructed of M2 high speed steel for the best combination of strength, heat resistance, and wear resistance.
6.The fully ground twist drill bit has a more precise concentricity.

Standard Straight Shank HSS Drills Screw Machine HSS Left Hand Twist Drill Bit for Metal Drilling (SED-HTLS) Standard Straight Shank HSS Drills Screw Machine HSS Left Hand Twist Drill Bit for Metal Drilling (SED-HTLS) Standard Straight Shank HSS Drills Screw Machine HSS Left Hand Twist Drill Bit for Metal Drilling (SED-HTLS) Standard Straight Shank HSS Drills Screw Machine HSS Left Hand Twist Drill Bit for Metal Drilling (SED-HTLS)
Standard Straight Shank HSS Drills Screw Machine HSS Left Hand Twist Drill Bit for Metal Drilling (SED-HTLS)
