| Quantity: | |
|---|---|
Customized
DIN
Jobber-length
Twist Drill Bit
High Speed Steel

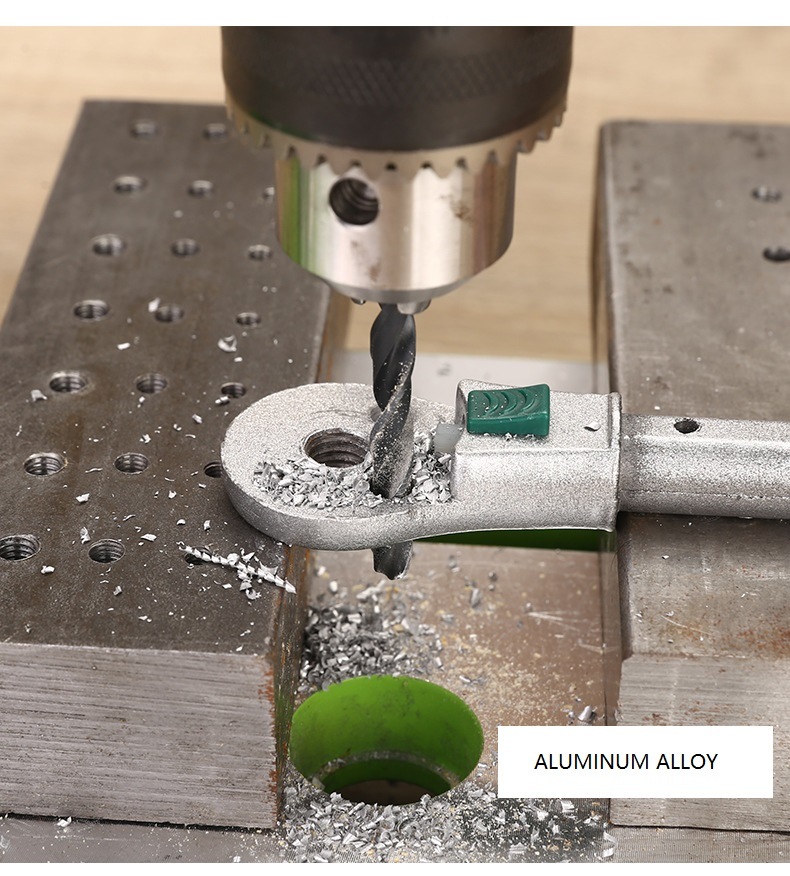

Metal Drilling
SED-HTFG1
1.0mm-20mm
Fully Ground
1000PCS/Size
PVC Bag,Setcase,Plastic Box,Metal Box
Bright White
PVC Bag, Blister Card, Plastic Box, Metal Box etc
ISO9001, SGS, CE
EASYDRILL
China
820750900
200, 000PCS/Month
US$ 10/Piece 1 Piece(Min.Order) | Request Sample
Product Description
| Product Name | DIN338 Rolled and Polished Bright Finish Jobber Length HSS twist drill bit for Metal |
| Material | HSS (HSS Cobalt is Available) |
| Process | Rolled & Polished (Fully Ground, Roll Forged, Milled are Available) |

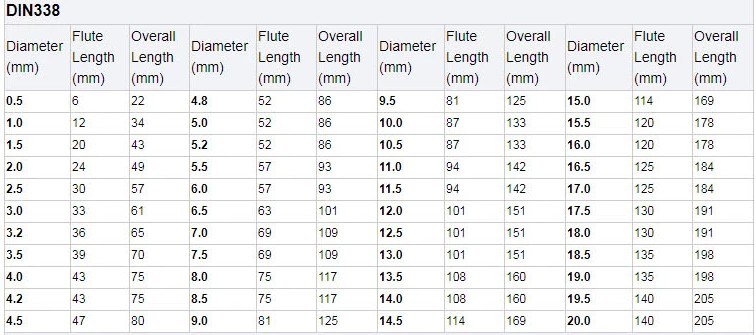

| Standard | DIN338 (Stub DIN1897, Long DIN340, Extra Long DIN1869, Blacksmith Reduced Shank 10mm, 13mm, DIN345 Taper Shank are Available) Jobber Length (Stub Screw Machine Length, Long Taper Length, Airctraft Extensoin, Extra Long 12", 18", 24", Silver & Deming 1/2" Reduced Shank are Available) |

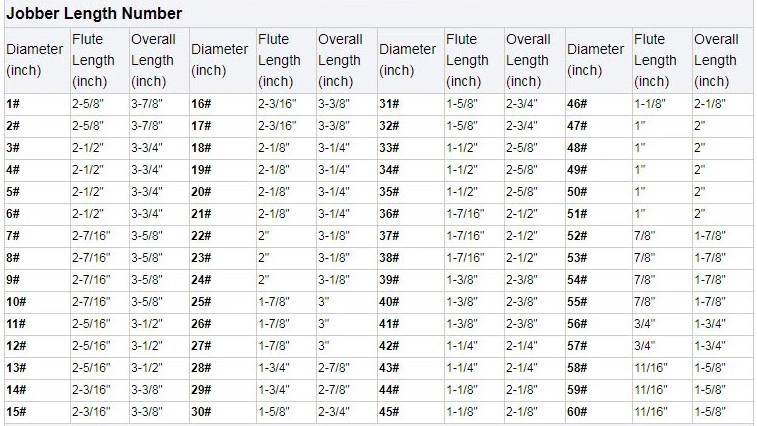

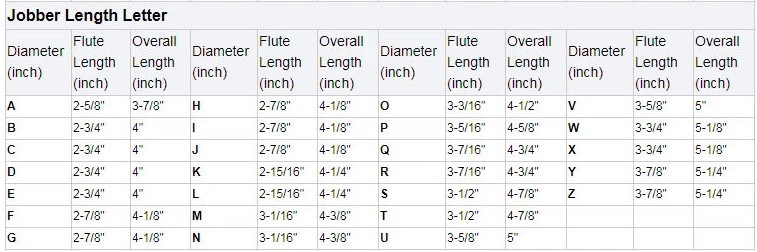

| Size | 1 - 20mm, 1/16" - 1" , A - Z, 1# - 90# |
| Point Type | 118 Degree Regular Point (135 Degree Split Point, Turbo Max Point, Pilot Point are Available) |

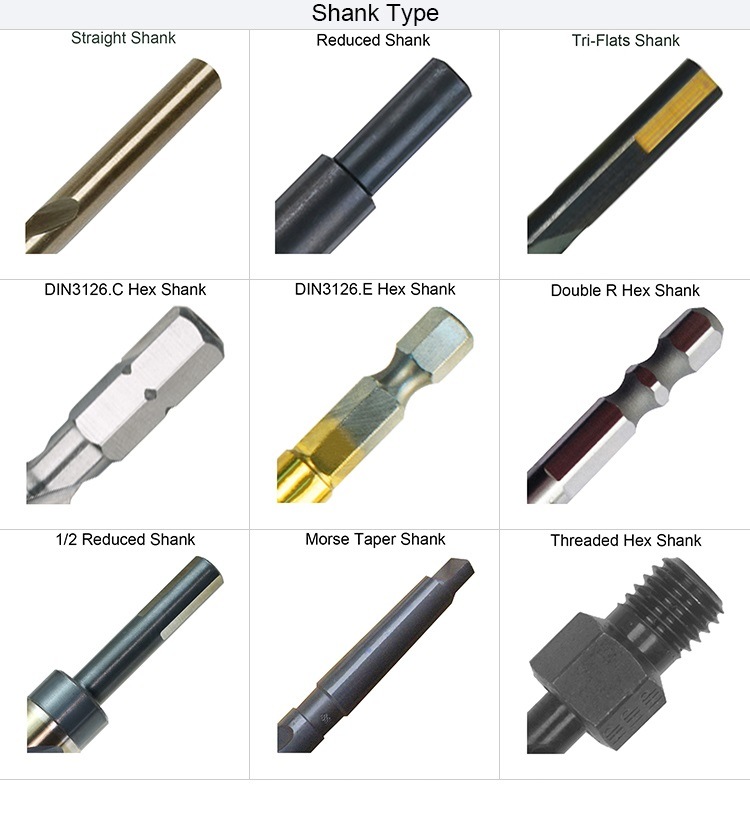

| Shank Type | Straight Shank (Hex Shank, Tri-Flats Shank, Double R Hex Shank, Reduced Shank, Threaded Hex Shank, Taper Shank are Available) |
| Helix Angle | Regular Spiral Type N (Slow Spiral Type H, Fast Spiral Type W, Left Hand Spiral are Available) |
| Web & Flute Type | Regular Web & Flute (Thick Web with Parabolic Flute, Heavy Duty Web with Regular Flute are Available) |
| Surface Finish | Bright (Black Oxide, Amber Color, Titanium, Black & Gold, Black & Bright are Available) |
| Package | 10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell. |
| Features | 1.High quality HSS brocas for drilling holes in metal sheet. 2.Universal 118° point shape for drilling a wide selection of materials. 3.Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance. of the bit. |
