DIN8375 90 Degree HSS Jobber Drills Subland Taper Shank Twist Drill Bit for Metal Drilling and Kreg Pocket Hole Jigging (SED-HTSS)

Quantity:
  • Customized

  • DIN

  • Taper-length

  • Twist Drill Bit

  • High Speed Steel

  • Metal Drilling

  • SED-HTSS

  • Taper Shank

  • Rolled

  • Black

  • 135 or 118

  • 200PCS

  • Oil Paper, Paper Box, Plastic Tube, Set Cases

  • SGS

  • EASYDRILL

  • China

  • 820750900

  • 20, 000PCS/Month

  • Available | Customized Request

Product Description

DIN8375 Taper Shank HSS drills 90 Degree HSS Subland twist Drill Bit for Metal Drilling and Kreg Pocket Hole Jigging
Material: HSS 4241, 4341, 9341, M2, M35
Size: 6.0-100.0mm
Process: Rolled
Surface: White, Black, White Edge, Tin-Coated
Standard:DIN345 and ANSI
MT No: No.1 to 6
usage:Metal,Wood, Plastic Drilling.

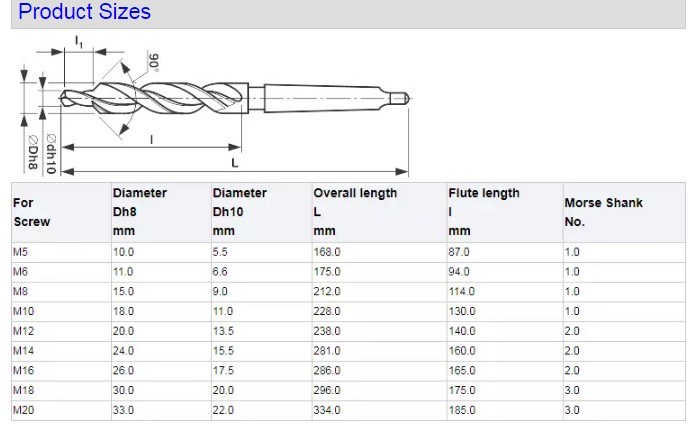

Procuct Name DIN8375 Taper Shank 90 Degree HSS Subland Two Steps Twist Drill Bit for Metal Drilling
Material HSS
Process Fully Ground
Standard DIN8375 (DIN8374, DIN8376 are Available)
Size M5 - M20
Point Angle 90 Degree (180 Degree is Available)
Shank Taper Shank (Straight Shank, Hex Shank are Available)
Surface Finish Black Oxide (Bright, Titanium Coated are Available)
Package 10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell.
Features 1. A Subland Drill is basically two drills of different diameters combined into one tool, retaining the individual characteristics and proper geometry for each diameter.
2. The dual cutting diameters produce holes properly sized for each size screw.
3. Recommended for use with corded high-rpm drills.
4. The Subland Drill provides superior tool life compared to that of a basic step drill.
5. Useful for applications like cabinet making, fastening, woodworking, and other home and professional applications.

Details:
1. Process: 6.0-33.0mm Roll Forged, 31.0-100.0mm Milled
2. Standard: Strictly as per DIN345 specification requested.
Point Angle:118 angle and 135angle
3. Application: Drilling deep hole on Non-Alloy Steel, Alloy Steel, Grey Cast Iron, Malleable Cast Iron, special aluminum or magnesium alloy.
4.118degree or 135 degree
5. Package: One PC into a Paper Tube or Plastic Tube, also Set Cases are available.
DIN8375 90 Degree HSS Jobber Drills Subland Taper Shank Twist Drill Bit for Metal Drilling and Kreg Pocket Hole Jigging (SED-HTSS)
DIN8375 90 Degree HSS Jobber Drills Subland Taper Shank Twist Drill Bit for Metal Drilling and Kreg Pocket Hole Jigging (SED-HTSS)

DIN8375 90 Degree HSS Jobber Drills Subland Taper Shank Twist Drill Bit for Metal Drilling and Kreg Pocket Hole Jigging (SED-HTSS) DIN8375 90 Degree HSS Jobber Drills Subland Taper Shank Twist Drill Bit for Metal Drilling and Kreg Pocket Hole Jigging (SED-HTSS) DIN8375 90 Degree HSS Jobber Drills Subland Taper Shank Twist Drill Bit for Metal Drilling and Kreg Pocket Hole Jigging (SED-HTSS)
