135 Degree DIN345 HSS Morse Taper Shank Twist Drill Bit for Metal Drilling (SED-HTSB)

Product Description

135 Degree Split Point HSS drills DIN345 HSS Morse Taper Shank Twist Drill Bit for Metal Drilling
Material: HSS 4241, 4341, 9341, M2, M35
Size: 6.0-100.0mm
Process: Rolled
Surface: White, Black, White Edge, Tin-Coated
Standard:DIN345 and ANSI
MT No: No.1 to 6
usage:Metal,Wood, Plastic Drilling.

Procuct Name	135 Degree Split Point DIN345 HSS Morse Taper Shank Twist Drill Bit for Metal Drilling
Material	HSS 4241 4341 6542-M2 (Cobalt 5% M35 is Available)
Process	Milled (Roll Forged is Available)
Standard	DIN345 (ANSI, DIN1870, DIN341 are Also Available)
MT No.	No.1 to No.6

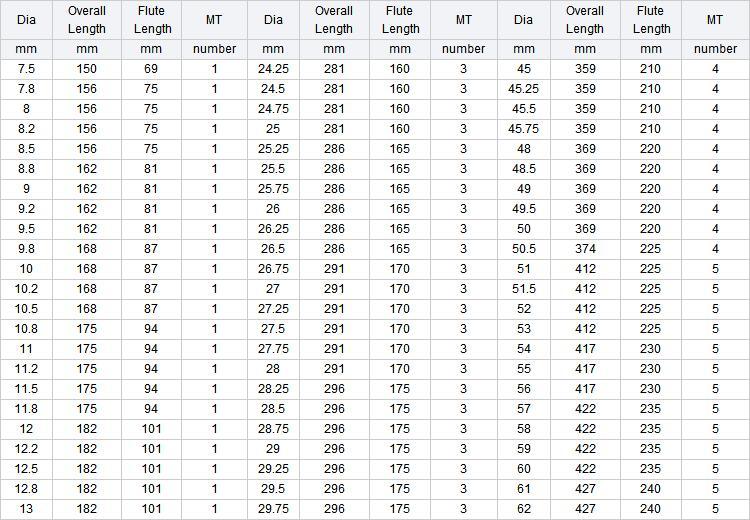

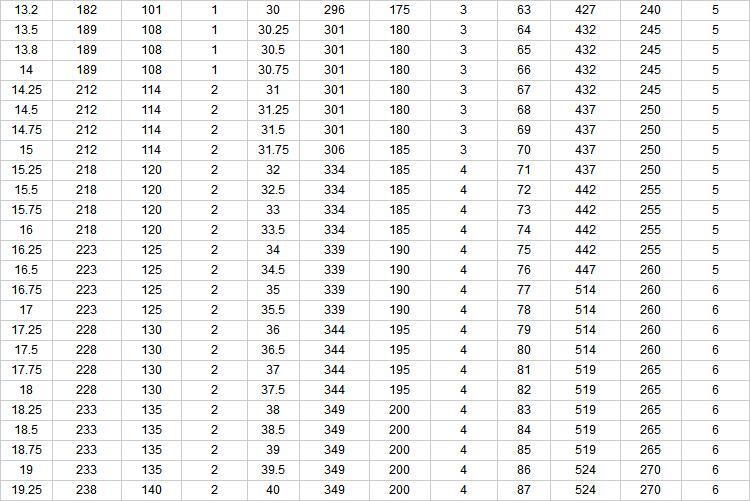

Size	7.5mm - 100mm or 3/8'' - 4''
Flute Type	Type N, Right Hand Cutting
Point Angle	135 Degree Split Point(118 Degree, Thinning Point are Available)

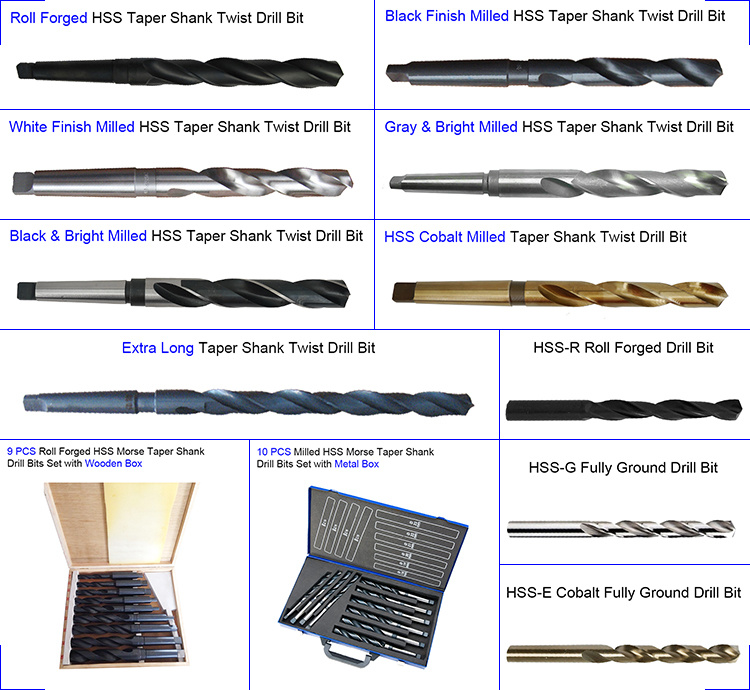

Surface Finish	Black & White (Black Oxide, Gray & Bright, Amber Color, Bright, Titanium Coating are Also available)
Package	One Piece in Paper Box, Plastic Box, or Wooden Box
Features	1. Low thrust design self centering split point for easier penetration 2. Taper Shank Drills have a tanged conical shank to fit directly into the tapered holes of drill press spindles, driving sleeves or sockets. 3. High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials 4. Spiral flutes are constructed with a higher flute angle to remove chips more easily. 5.Black Flute and White body, anti-rusted and reduce friction for fast drilling speed 6. Usage for Metal Drilling, cast steel, grey cast iron, malleable iron, sintered metal and low hardness alloyed materials
