HSS Taper Drills Hex Shank Tappered HSS Twist Drill Bit (SED-HTD)

Quantity:
Inquire Add to Basket

  • Customized

  • DIN

  • Twist Drill Bit

  • High Speed Steel

  • Metal Drilling

  • Tappered Body

  • SED-HTD

  • Hex or Round

  • as Per Request

  • 5000PCS/Size

  • Original,Gold,Black etc

  • PVC,Box,Set Case

  • Blister Card, Paper Box, Plastic Box, Set Case

  • SGS

  • EASYDRILL

  • China

  • 820750900

  • 60, 000PCS/Month

  • Available | Customized Request

Product Description

HSS taper drills Hex Shank Tappered HSS Drill Bit

1.Material: milled with HSS for long life
2. Fully ground, Milled
3.Special tip and more sharpness.
4.prevent material from splitting near the edge of material.
5.improve positioning accuracy .
6.make driving into material easily.
7.adjustable hex shank.

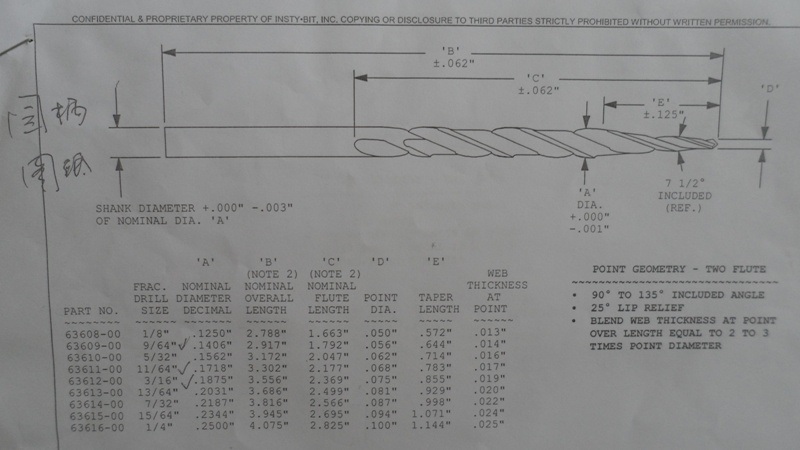

Size A B C D E
1/8" 0.1250" 2.788" 1.663" 0.050" 0.572"
9/64" 0.1406 2.917" 1.792" 0.056" 0.644"
5/32" 0.1562 3.172" 2.047" 0.062" 0.714"
11/64" 0.1718" 3.302" 2.177" 0.068" 0.783"
3/16" 0.1875" 3.556" 2.369" 0.075" 0.855"
13/64" 0.2031" 3.686" 2.499" 0.081" 0.929"
7/32" 0.2187" 3.816" 2.566" 0.087" 0.998"
15/64" 0.2344" 3.945" 2.659" 0.094" 1.071"
1/4" 0.25" 4.075" 2.825" 0.1" 1.144"
