HSS Jobber Length Drill HSS Drills Hex Shank Bright White HSS Twist Drill Bit (SED-HTHW)

Quantity:
  • Customized

  • DIN

  • Twist Drill Bit

  • High Speed Steel

  • Metal Drilling

  • 1mm-13mm

  • SED-HTHW

  • Bright White

  • Fully Ground

  • Hex Shank

  • 1000PCS

  • PVC Bag, Blister Card, Plastic Box

  • SGS

  • EASYDRILL

  • China

  • 820750900

  • 100, 000PCS/Month

  • Available | Customized Request

Product Description

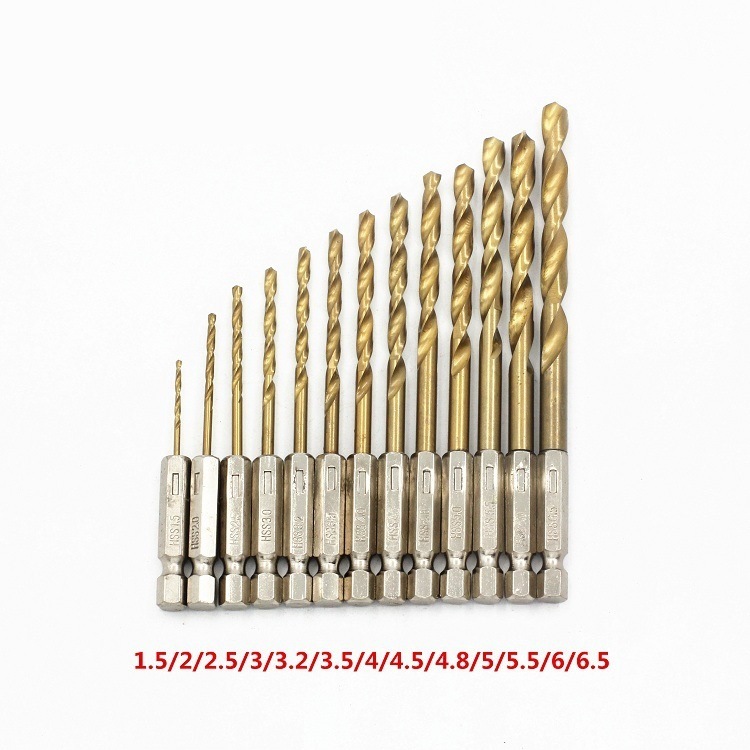

HSS jobber length drill HSS drills Hex Shank Bright White HSS Twist Drill Bit

1. Material: 4241, 4341, 9341, 6542, M2, M35, and M42 +Co 5% etc. (pic 4341)
2. Manufacturing Art: Fully ground, roll forged and edge forged twist drill
3. Application: For drilling in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastic,or wood.
4.Standard: DIN338,DIN345,DIN340,DIN1897 etc
5.135split point angle or 118 degree
6.1/4" Hex Shank HSS Twist Drill Bit Titanium Coated
7.Hardened high speed steel body provides additional safeguard.
8.Right hand cutting direction; Standard two flute design.
9.General Purpose Hex Shank Drills are designed for use in cordless screwdrivers and drills. Hex shank has a recessed snap-in ring to lock drills into drill chuck.
10.Heavy Duty Hex Shank Drills are designed for use in cordless screwdrivers and for drilling harder materials. Hex shank has a recessed snap-in ring to lock drills into drill chuck.
11.Black oxide finish or Bright finish are available on request.
12. 135 degree split point for quick start . 118 degree point angle also available


Metric Size are available ( DIN338 Standard ):

1.5-6.0mm x 10 PCS set
1.5 ~ 6.5mm x 13 PCS set
Inch Size are available ( ANSI B94.11M-1993 Standard ):
1/16" ~ 1/4" x 7 PCS set by 32NDS
1/16" ~ 1/4" x 13 PCS set by 16NDS
Diameter (mm) Flute Length(mm) Overall Length (mm) Diameter (mm) Flute Length(mm) Overall Length(mm) Diameter (mm) Flute Length(mm) Overall Length(mm)
0.2 2.5 19.0 5.6 57.0 93.0 11.0 94.0 142.0
0.3 3.0 19.0 5.7 57.0 93.0 11.1 94.0 142.0
0.4 5.0 20.0 5.8 57.0 93.0 11.2 94.0 142.0
0.5 6.0 22.0 5.9 57.0 93.0 11.3 94.0 142.0
0.6 7.0 24.0 6.0 57.0 93.0 11.4 94.0 142.0
0.7 9.0 28.0 6.1 63.0 101.0 11.5 94.0 142.0
0.8 10.0 30.0 6.2 63.0 101.0 11.6 94.0 142.0
0.9 11.0 32.0 6.3 63.0 101.0 11.7 94.0 142.0
1.0 12.0 34.0 6.4 63.0 101.0 11.8 94.0 142.0
1.1 14.0 36.0 6.5 63.0 101.0 11.9 101.0 151.0
1.2 16.0 38.0 6.6 63.0 101.0 12.0 101.0 151.0
1.3 16.0 38.0 6.7 63.0 101.0 12.1 101.0 151.0
1.4 18.0 40.0 6.8 69.0 109.0 12.2 101.0 151.0
1.5 18.0 40.0 6.9 69.0 109.0 12.3 101.0 151.0
1.6 20.0 43.0 7.0 69.0 109.0 12.4 101.0 151.0
1.7 20.0 43.0 7.1 69.0 109.0 12.5 101.0 151.0
1.8 22.0 46.0 7.2 69.0 109.0 12.6 101.0 151.0
1.9 22.0 46.0 7.3 69.0 109.0 12.7 101.0 151.0
2.0 24.0 49.0 7.4 69.0 109.0 12.8 101.0 151.0
2.1 24.0 49.0 7.5 69.0 109.0 12.9 101.0 151.0
2.2 27.0 53.0 7.6 75.0 117.0 13.0 101.0 151.0
2.3 27.0 53.0 7.7 75.0 117.0 13.1 101.0 151.0
2.4 30.0 57.0 7.8 75.0 117.0 13.2 101.0 151.0
2.5 30.0 57.0 7.9 75.0 117.0 13.3 108.0 160.0
2.6 30.0 57.0 8.0 75.0 117.0 13.4 108.0 160.0
2.7 33.0 61.0 8.1 75.0 117.0 13.5 108.0 160.0
2.8 33.0 61.0 8.2 75.0 117.0 13.6 108.0 160.0
2.9 33.0 61.0 8.3 75.0 117.0 13.7 108.0 160.0
3.0 33.0 61.0 8.4 75.0 117.0 13.8 108.0 160.0
3.1 36.0 65.0 8.5 75.0 117.0 13.9 108.0 160.0
3.2 36.0 65.0 8.6 81.0 125.0 14.0 108.0 160.0
3.3 36.0 65.0 8.7 81.0 125.0 14.3 114.0 169.0
3.4 39.0 70.0 8.8 81.0 125.0 14.5 114.0 169.0
3.5 39.0 70.0 8.9 81.0 125.0 14.8 114.0 169.0
3.6 39.0 70.0 9.0 81.0 125.0 15.0 114.0 169.0
3.7 39.0 70.0 9.1 81.0 125.0 15.3 120.0 178.0
3.8 43.0 75.0 9.2 81.0 125.0 15.5 120.0 178.0
3.9 43.0 75.0 9.3 81.0 125.0 15.8 120.0 178.0
4.0 43.0 75.0 9.4 81.0 125.0 16.0 120.0 178.0
4.1 43.0 75.0 9.5 81.0 125.0 16.3 125.0 184.0
4.2 43.0 75.0 9.6 87.0 133.0 16.5 125.0 184.0
4.3 47.0 80.0 9.7 87.0 133.0 16.8 125.0 184.0
4.4 47.0 80.0 9.8 87.0 133.0 17.0 125.0 184.0
4.5 47.0 80.0 9.9 87.0 133.0 17.3 130.0 191.0
4.6 47.0 80.0 10.0 87.0 133.0 17.5 130.0 191.0
4.7 47.0 80.0 10.1 87.0 133.0 17.8 130.0 191.0
4.8 52.0 86.0 10.2 87.0 133.0 18.0 130.0 191.0
4.9 52.0 86.0 10.3 87.0 133.0 18.5 135.0 198.0
5.0 52.0 86.0 10.4 87.0 133.0 18.8 135.0 198.0
5.1 52.0 86.0 10.5 87.0 133.0 19.0 135.0 198.0
5.2 52.0 86.0 10.6 87.0 133.0 19.3 140.0 205.0
5.3 52.0 86.0 10.7 94.0 142.0 19.5 140.0 205.0
5.4 57.0 93.0 10.8 94.0 142.0 19.8 140.0 205.0
5.5 57.0 93.0 10.9 94.0 142.0 20.0 140.0 205.0

HSS Jobber Length Drill HSS Drills Hex Shank Bright White HSS Twist Drill Bit (SED-HTHW)
HSS Jobber Length Drill HSS Drills Hex Shank Bright White HSS Twist Drill Bit (SED-HTHW) HSS Jobber Length Drill HSS Drills Hex Shank Bright White HSS Twist Drill Bit (SED-HTHW) HSS Jobber Length Drill HSS Drills Hex Shank Bright White HSS Twist Drill Bit (SED-HTHW)
