HSS Jobber Drills HSS Drill 1/2" Reduced Shank HSS Twist Drill Bit (SED-HRS)

Quantity:
  • Customized

  • DIN

  • Twist Drill Bit

  • High Speed Steel

  • Metal Drilling

  • 1/2"Reduced Shank

  • SED-HRS

  • Black,Bright,Tin-Coated

  • 200PCS/Size

  • 11-40mm

  • 1PC/Paper Box

  • Oil Paper, Paper Box, Plastic Tube, Set Cases

  • reduced shank

  • EASYDRILL

  • China

  • 820750900

  • 50, 000PCS/Month

  • Available | Customized Request

Product Description

HSSco jobber drill HSS drills 1/2" Reduced Shank HSS Drill Bit

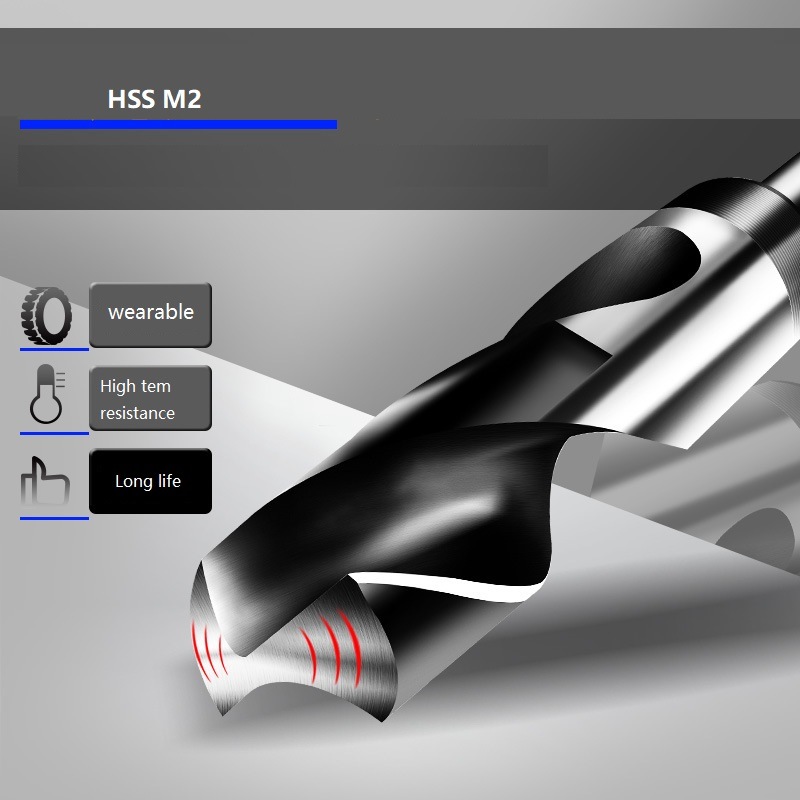

1.Material: HSS 4241, 4341, 9341, M2, M35 with Standard right hand spiral.
2.Surface: bright White, Black, White Edge, Titanium Coated

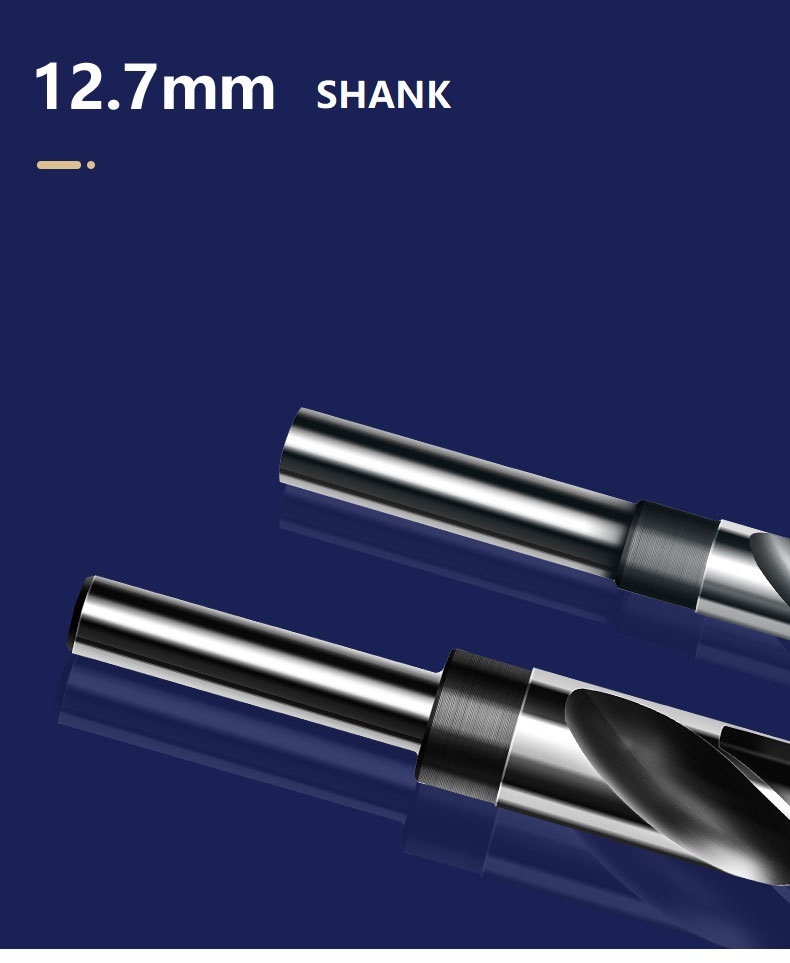

3.all sizes have 1/2" Reduced Shank, 3" Flute Length and 6" Overall Length.
4.Point Angle:118 degree and 135 split point angle
5. Application: For drilling applications in a wide range of normal ferrous and non-ferrous metals as well asnon-metallic materials.
6. Package: One PC into a Paper Tube or Plastic Tube, also Set Cases are available.

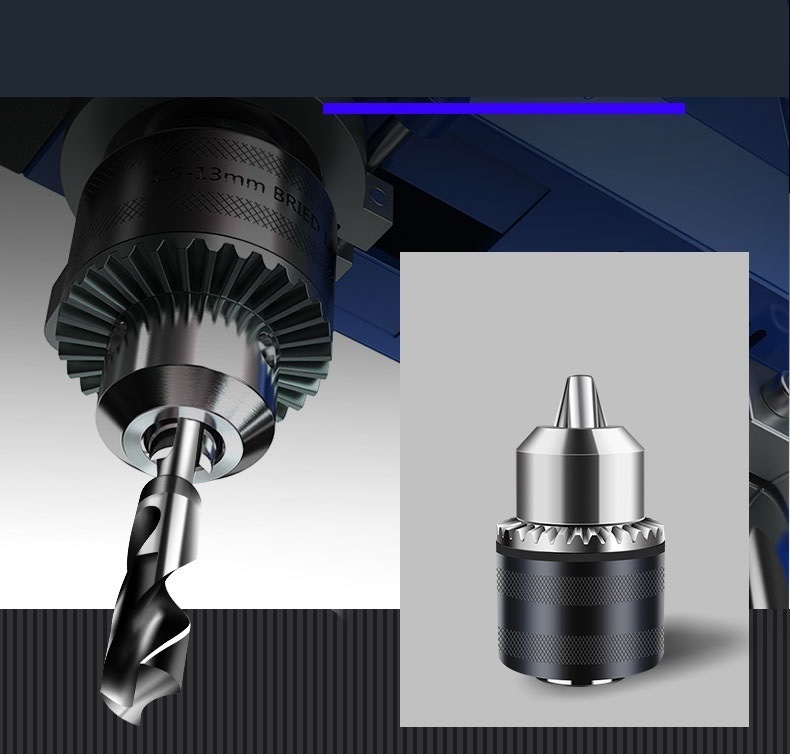

7.1/2" Reduced Shank Drills are used for drilling holes larger than the capacity of a 1/2" drill chuck. Reduced shank drills should only be used for light to medium duty drilling applications as they do not have the torque strength of a straight shank drill. Reduced shank is not as hard as the body of drill to allow more flex and less breakage.
8.Round Shank or 3 Flat Shank are available on request.
D
L l
MM MM MM
6 225 145
6.1-6.7 230 150
6.8-7.6 235 155
7.7-8.6 240 160
8.7-9.5 245 165
9.6-10.6 250 170
10.7-11.8 255 175
11.9-13.2 260 180
13.3-14 265 185
14.25-15 290 190
15.25-16 295 195
16.25-17 300 200
17.25-18 305 205
18.25-19 310 210
19.25-20 320 220
20.25-21 330 230
21.25-22.25 335 235
22.5-23 340 240
23.25-23.5 360 240
