Customized
DIN
Jobber-length
Twist Drill Bit
High Speed Steel
Metal Drilling
SED-HTR1
1mm-20mm
Fully Ground or Forged
2000PCS/Size
PVC Bag,Setcase,Plastic Box,Metal Box
PVC Bag, Blister Card, Plastic Box, Metal Box etc
ISO9001, SGS, CE
EASYDRILL
China
820750900
200, 000PCS/Month
US$ 1/Piece 1 Piece(Min.Order) | Request Sample
Product Description

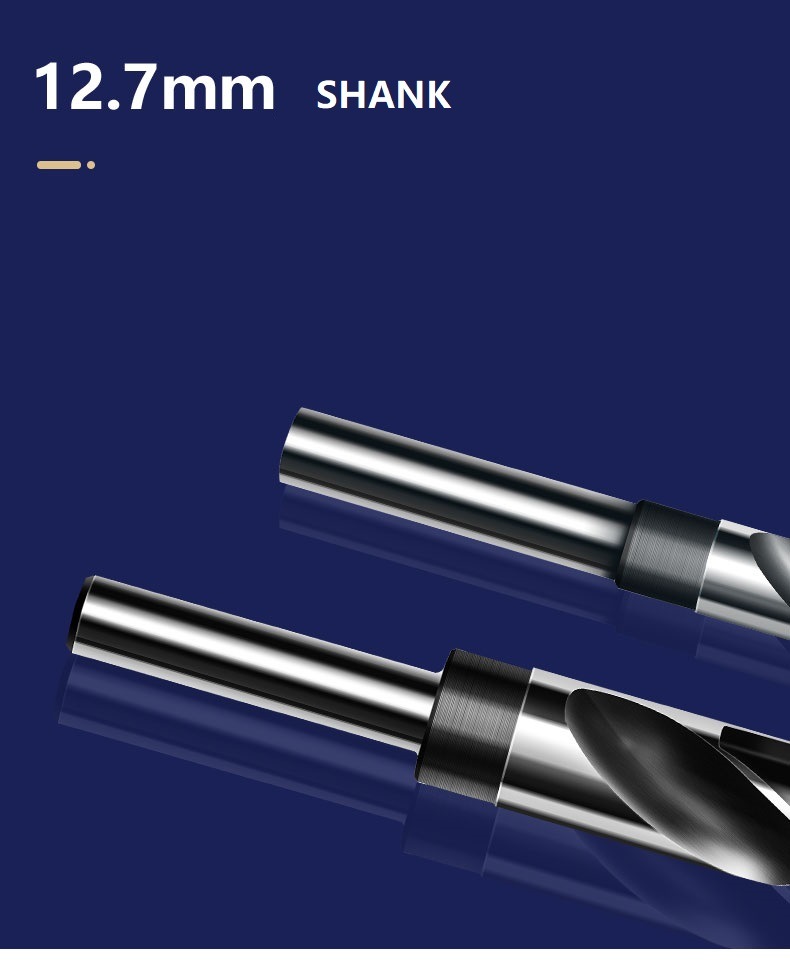

| Product Name | HSS Blacksmith 13mm Reduced Shank Drill Bit |

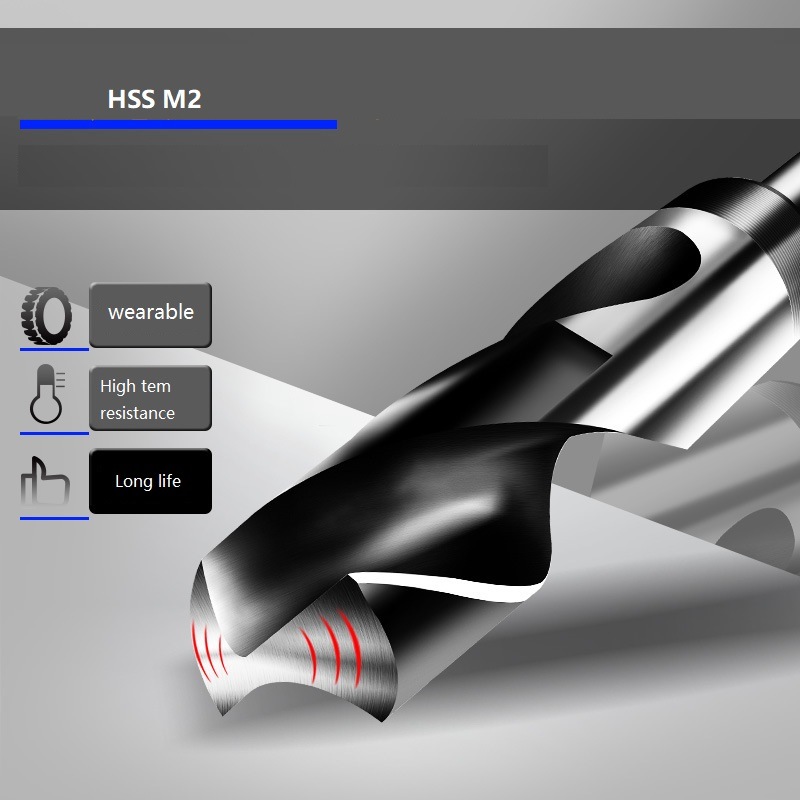

| Material | HSS (HSS Cobalt is Available) |
| Process | Milled (Fully Ground, Rolled & Polished, Rolled are Available) |

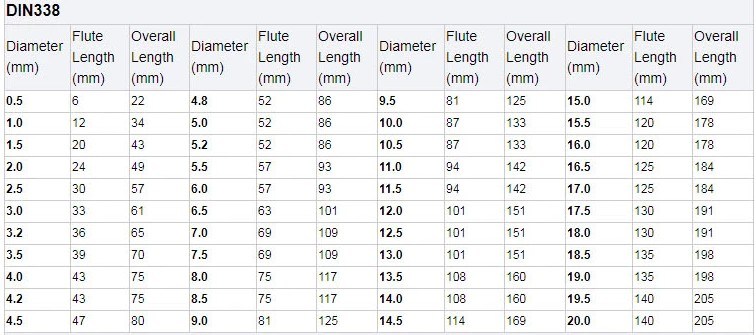

| Standard | Blacksmith Reduced Shank 10mm, 13mm (DIN338, Stub DIN1897, Long DIN340, Extra Long DIN1869, DIN345 Taper Shank are Available) Silver & Deming 1/2" Reduced Shank (Jobber Length, Stub Screw Machine Length, Long Taper Length, Airctraft Extensoin, Extra Long 12", 18", 24" are Available) |
| Size | 10.5mm - 20mm |
| Point Type | 118 Degree Regular Point (135 Degree Split Point, Turbo Max Point, Pilot Point are Available) |
| Shank Type | Reduced Shank (Straight Shank, Hex Shank, Tri-Flats Shank, Double R Hex Shank, Threaded Hex Shank, Taper Shank are Available) |
| Helix Angle | Regular Spiral Type N (Slow Spiral Type H, Fast Spiral Type W, Left Hand Spiral are Available) |
| Web & Flute Type | Regular Web & Flute (Thick Web with Parabolic Flute, Heavy Duty Web with Regular Flute are Available) |
| Surface Finish | Black Oxide (Black & Gold, Bright, Amber Color, Titanium, Black & Bright are Available) |
| Package | 10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell. |
| Features | 1.High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance. 2.Universal 118° point shape for drilling a wide selection of materials. 3.Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance. of the bit. |
