DIN338 Jobber Length Drills HSS M2 Cobalt Twist Drill Bit for Metal Aluminium Stainless Steel PVC Iron (SED-HTJM2)

Quantity:
  • Customized

  • DIN

  • Jobber-length

  • Twist Drill Bit

  • High Speed Steel

  • Metal Drilling

  • SED-HTJM2

  • 1mm-20mm

  • Fully Ground or Forged

  • 1000PCS/Size

  • PVC Bag,Setcase,Plastic Box,Metal Box

  • Gold

  • PVC Bag, Blister Card, Plastic Box, Metal Box etc

  • ISO9001, SGS, CE

  • EASYDRILL

  • China

  • 820750900

  • 200, 000PCS/Month

  • US$ 5/Piece 1 Piece(Min.Order) | Request Sample

Product Description

DIN338 Jobber Length drills HSS P6M5 Cobalt Twist Drill Bit for Metal Aluminium Stainless Steel PVC Iron

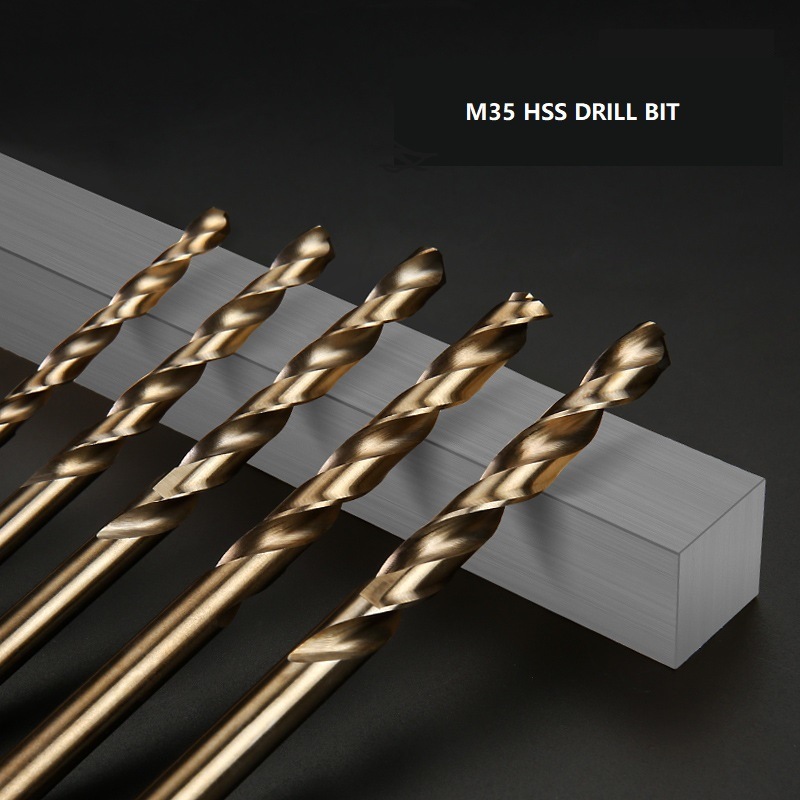

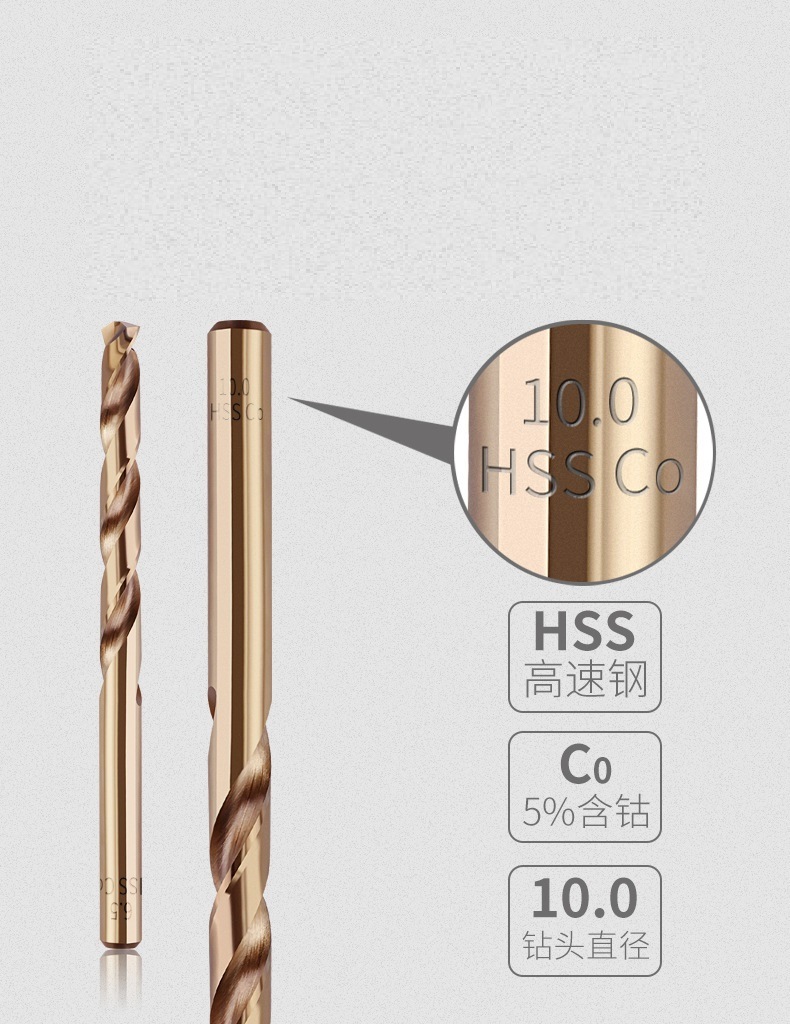

Material: HSS5% Cobalt(M35) or 8% Cobalt(M42), Other
Process: Fully Ground
Standard: DIN338, Jobber Length, Gost Standard
Point Angle: 135 Degree Split point
Shank: Straight Shank
Helix Angle: Type N Spiral Flute Right Hand
Sizes: 1-20mm, 1/16"-1/2", #1-#90, A-Z
Surface Finish: Amber Color
Application: For Metal Aluminium Stainless Steel PVC Iron Drilling
Type: Twist Drill Bit
Use: Metal Drilling.
Product Name DIN338 Jobber Length HSS P6M5 Cobalt Drill Bit
Material HSS Cobalt M35 (HSS is Available)
Process Fully Ground (Rolled and Polished, Rolled, Milled are Available)

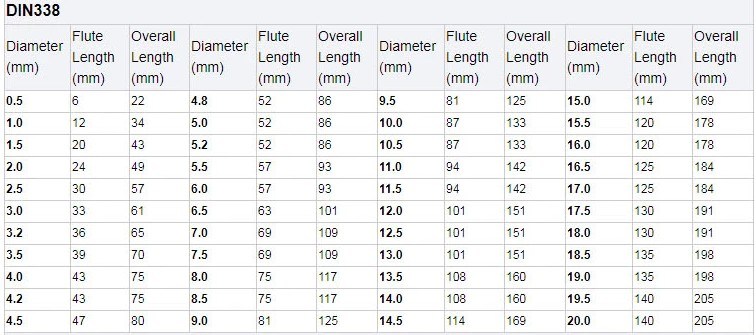

Standard

DIN338 (Stub DIN1897, Long DIN340, Extra Long DIN1869,

Blacksmith Reduced Shank 10mm, 13mm, DIN345 Taper Shank are Available)

Jobber Length (Stub Screw Machine Length, Long Taper Length, Airctraft Extensoin,

Extra Long 12", 18", 24", Silver & Deming 1/2" Reduced Shank are Available)

Size 1 - 20mm, 1/16" - 1" , A - Z, 1# - 90#
Point Type 135 Degree Split Point (118 Degree Regular Point, Turbo Max Point, Pilot Point are Available)

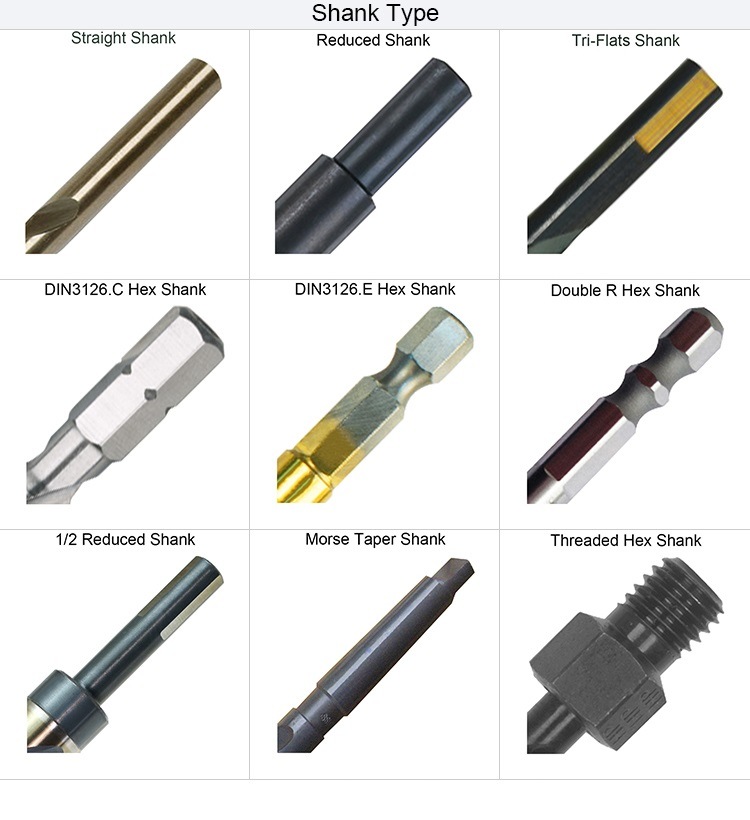

Shank Type

Straight Shank (Hex Shank, Tri-Flats Shank, Double R Hex Shank, Reduced Shank,

Threaded Hex Shank, Taper Shank are Available)

Helix Angle Regular Spiral Type N (Slow Spiral Type H, Fast Spiral Type W, Left Hand Spiral are Available)
Web & Flute Type Regular Web & Flute (Thick Web with Parabolic Flute, Heavy Duty Web with Regular Flute are Available)
Surface Finish Amber Color (Bright, Black Oxide, Titanium, Black & Gold, Black & Bright are Available)
Package 10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell.

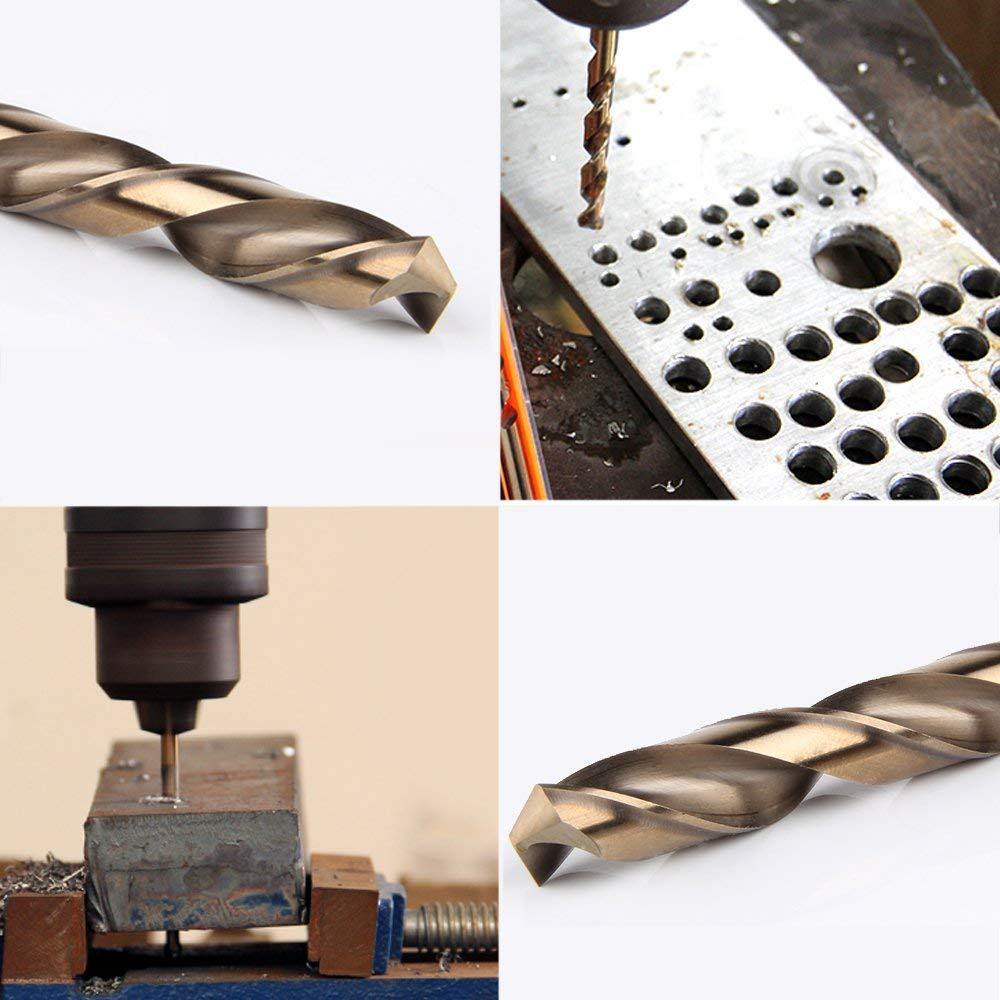

Features

1.Cobalt drill bits are more expensive than other drill bits, but if you regularly drill through metal, they are a

good investment since they tend to last longer.
2.No center punch is needed-the aggressive 135° Quick-Cut points are self-centering and penetrate quickly

with lesspressure. Will not "walk" or "wander".
3.Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance.
4.Ground flutes provide fast chip removal to maximize accuracy and efficiency along the full working surface

of the bit.

DIN338 Jobber Length Drills HSS M2 Cobalt Twist Drill Bit for Metal Aluminium Stainless Steel PVC Iron (SED-HTJM2)


DIN338 Jobber Length Drills HSS M2 Cobalt Twist Drill Bit for Metal Aluminium Stainless Steel PVC Iron (SED-HTJM2) DIN338 Jobber Length Drills HSS M2 Cobalt Twist Drill Bit for Metal Aluminium Stainless Steel PVC Iron (SED-HTJM2) DIN338 Jobber Length Drills HSS M2 Cobalt Twist Drill Bit for Metal Aluminium Stainless Steel PVC Iron (SED-HTJM2)
DIN338 Jobber Length Drills HSS M2 Cobalt Twist Drill Bit for Metal Aluminium Stainless Steel PVC Iron (SED-HTJM2)
DIN338 Jobber Length Drills HSS M2 Cobalt Twist Drill Bit for Metal Aluminium Stainless Steel PVC Iron (SED-HTJM2) DIN338 Jobber Length Drills HSS M2 Cobalt Twist Drill Bit for Metal Aluminium Stainless Steel PVC Iron (SED-HTJM2) DIN338 Jobber Length Drills HSS M2 Cobalt Twist Drill Bit for Metal Aluminium Stainless Steel PVC Iron (SED-HTJM2)
