Home / Products / Drill Bits for Metal / Twist Drill Bits / Black and Amber Finish HSS Jobber Length Drills Fully Ground Turbomax HSS Twist Drill Bit for Metal Stainless Steel Drilling with Triangle Shank (SED-HTBA)

Black and Amber Finish HSS Jobber Length Drills Fully Ground Turbomax HSS Twist Drill Bit for Metal Stainless Steel Drilling with Triangle Shank (SED-HTBA)

Share to:

Black and Amber Finish HSS Jobber Length Drills Fully Ground Turbomax HSS Twist Drill Bit for Metal Stainless Steel Drilling with Triangle Shank (SED-HTBA)

Quantity:



Inquire Add to Basket

Customized:
Customized
Standard:
DIN
Length:
Jobber-length
Type:
Twist Drill Bit
Material:
High Speed Steel
Usage:
Metal Drilling
Model NO.:
SED-HTBA
Dia Size:
1.0mm-20mm
Production Art:
Fully Ground or Forged
Min Quantity:
1000PCS
Packing:
PVC Bag,Setcase,Plastic Box,Metal Box
Surface Finish:
Black and Amber
Transport Package:
PVC Bag, Blister Card, Plastic Box, Metal Box etc
Specification:
ISO9001, SGS, CE
Trademark:
EASYDRILL
Origin:
China
HS Code:
820750900
Production Capacity:
200, 000PCS/Month
Samples:
US$ 50/Set 1 Set(Min.Order) | Request Sample

Product Description

Product Description

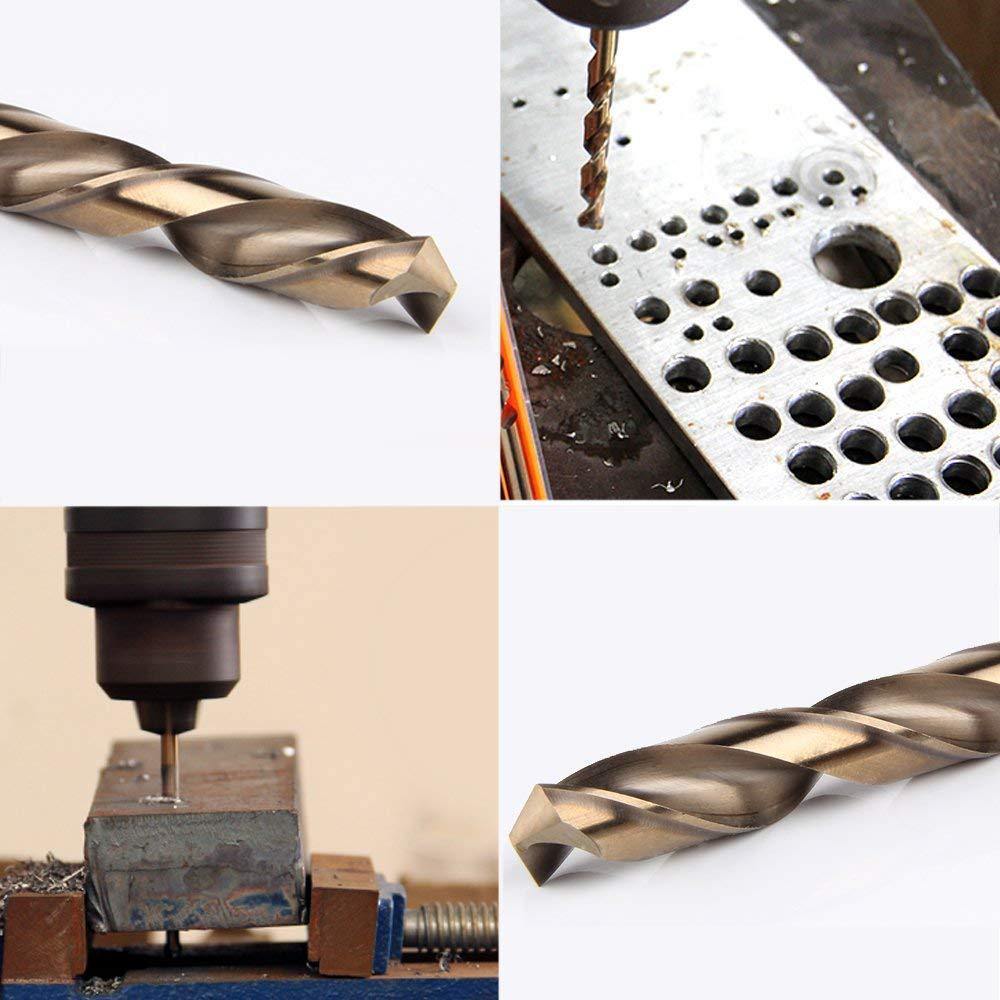

Black and Amber Finish Jobber Length HSS drills Fully Ground TurboMax Twist Drill Bit for Metal Stainless Steel Drilling with triangle Shank

Material:HSS and HSS Cobalt, HIGH SPEED STEEL
Process:Fully Ground
Standard:Jobber Length
Point Angle:Turbomax Point
Shank:Three Flats Shank
Flute Type:Type N Spiral Flute Right Hand
Size:1/16"-1"
Surface Finish:Black and Gold
Application:For Metal Stainless Steel Drilling
Type:Twist Drill Bit
Use:Metal Drilling.

Product Name	Black and Amber Finish Jobber Length HSS Fully Ground TurboMax twist Drill Bit for Metal
Material	HSS (HSS Cobalt is Available)
Process	Fully Ground (Rolled & Polshed, Rolled, Milled are Available)

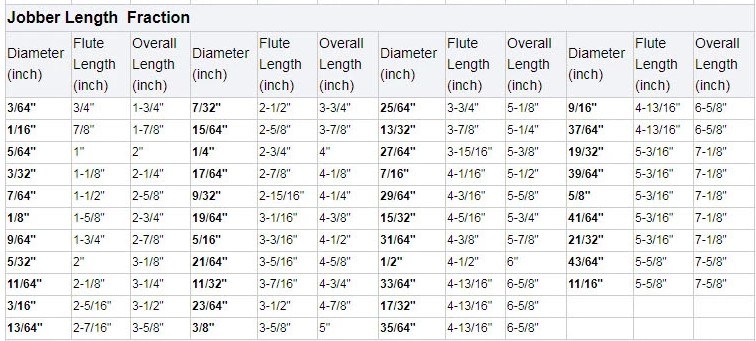

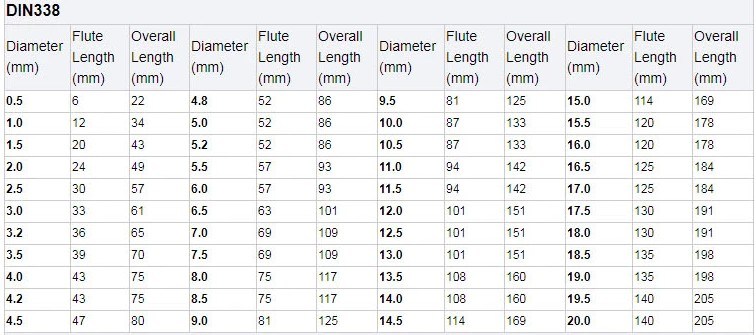

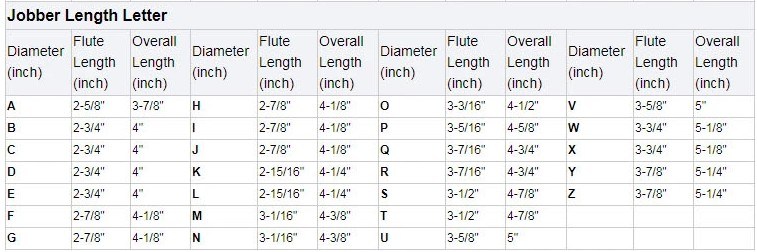

Standard	DIN338 (Stub DIN1897, Long DIN340, Extra Long DIN1869, Blacksmith Reduced Shank 10mm, 13mm, DIN345 Taper Shank are Available) Jobber Length (Stub Screw Machine Length, Long Taper Length, Airctraft Extensoin, Extra Long 12", 18", 24", Silver & Deming 1/2" Reduced Shank are Available)
Size	1/16" - 1"
Point Type	Turbo Max Point (118 Degree Regular Point, 135 Degree Split Point, Pilot Point are Available)
Shank Type	Tri-Flats Shank (Straight Shank, Hex Shank, Double R Hex Shank, Reduced Shank, Threaded Hex Shank,Taper Shank are Available)
Helix Angle	Regular Spiral Type N (Slow Spiral Type H, Fast Spiral Type W, Left Hand Spiral are Available)
Web & Flute Type	Regular Web & Flute (Thick Web with Parabolic Flute, Heavy Duty Web with Regular Flute are Available)
Surface Finish	Black & Gold (Bright, Black Oxide, Amber Color, Titanium, Black & Bright are Available)
Package	10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell.
Features	1.Made from premium high speed steel with black and gold finish for added corrosion resistance. 2.Revolutionary tip design stays sharper longer and drills up to 10x faster than other leading drill bits. 3.Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance. 4.Ground flutes provide fast chip removal to maximize accuracy and efficiency along the full working surface of the bit. 5.Self-centering TURBOMAX tip for clean entry and fast starts; stays sharp longer

Drill Drills Drill Bit

Black and Amber Finish HSS Jobber Length Drills Fully Ground Turbomax HSS Twist Drill Bit for Metal Stainless Steel Drilling with Triangle Shank (SED-HTBA)
