HSS Dovetail Milling Cutter (SED-MC-DT)

HSS Dovetail Milling Cutter
Specializing in the production of dovetail milling cutters of various specifications, including high-speed steel and cemented carbide, straight and tapered shanks, used for processing dovetail grooves on milling machines. There are two forms of positive dovetail and reverse dovetail, the angle can be produced from 30 degrees to 85 degrees, please contact us if you are interested!

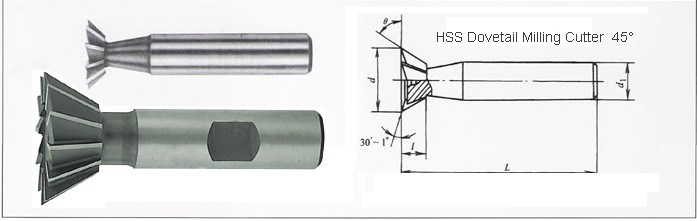

Specifications: Material: HSS (High Speed Steel) Cutter Diameter (D): 12mm, 14mm, 16mm, 18mm, 20mm, 25mm Use: Machining dovetail milling cutter Features: cutting edge is double-edged, angular distribution, more teeth, cutting Smooth applicable materials: die steel, cast iron, carbon steel, alloy steel, tool steel and other materials Milling angle: 45/60° Dimensions (approximately): cutter diameter (D) x tool holder diameter (d) x cutter height ( I) x Full length (L) 45°: 12mm x 10mm x 4mm x 57mm 14mm x 12mm x 4.5mm x 59mm 16mm x 12mm x 6mm x 60mm 25mm x 12mm x 10mm x 67mm 60°: 12mm x 10mm x 3mm x 58mm 16mm x 12mm x 3.5mm x 60mm 18mm x 12mm x 5mm x 63mm 20mm x 12mm x 5mm x 63 mm
