HSS Ball Nose End Mill with DIN327 Standard (SED-EM-BN327)

Quantity:



Inquire Add to Basket

Coating:
Uncoated
Tooth Form:
Spiral Tooth
Tooth Space:
Sparse Tooth
Structure:
Insert Type
Material:
High Speed Steel
Type:
Vertical Milling Cutter
Model NO.:
SED-EM-BN327
Diameter:
1mm-32mm
Package:
PVC Box or as Per Request
Min Qty:
10
Surface Treatment:
Original
Oeverall Length:
50-100mm
Transport Package:
Box
Specification:
ballnose end mill
Trademark:
EASYDRILL
Origin:
China
HS Code:
8207709000
Production Capacity:
2000sets/Month
Customization:
Available | Customized Request

Product Description

Product Description

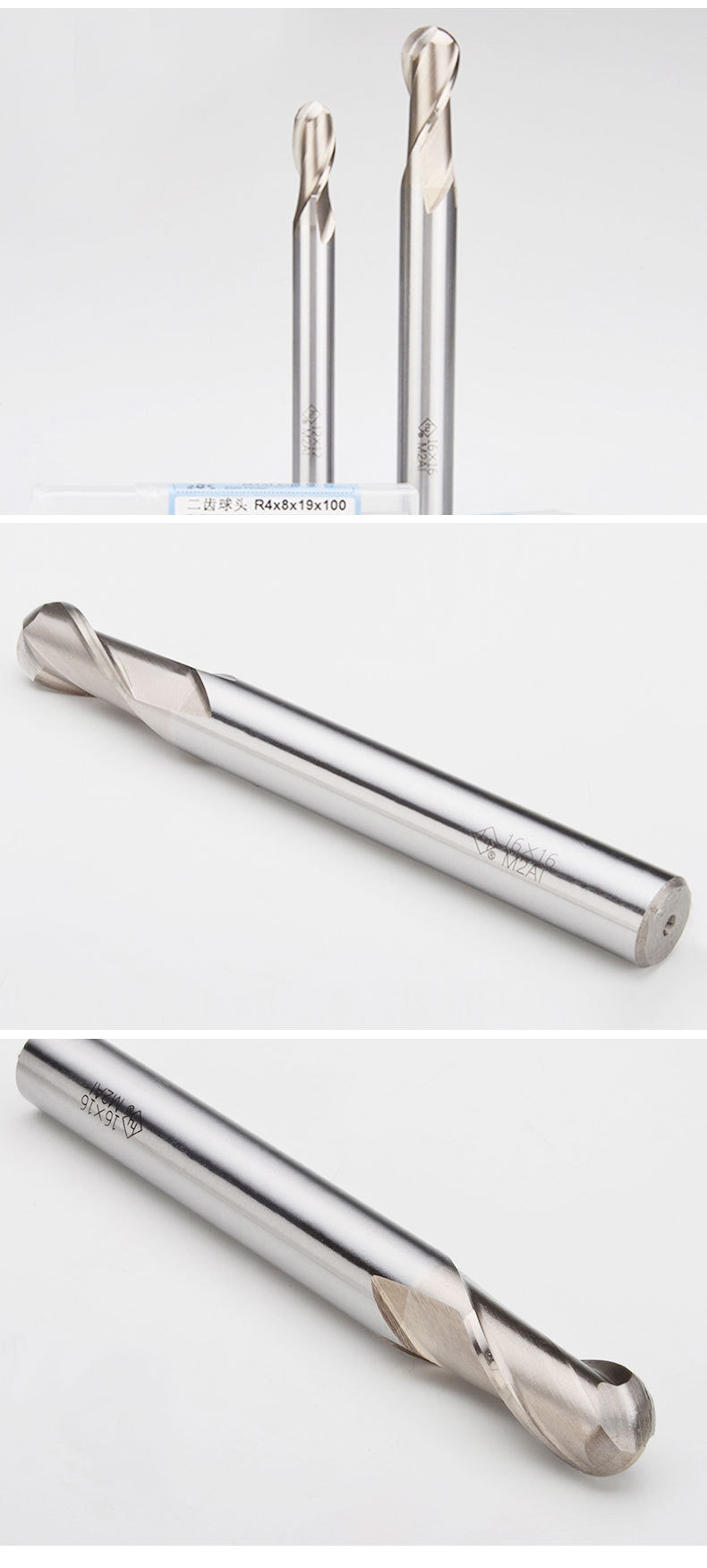

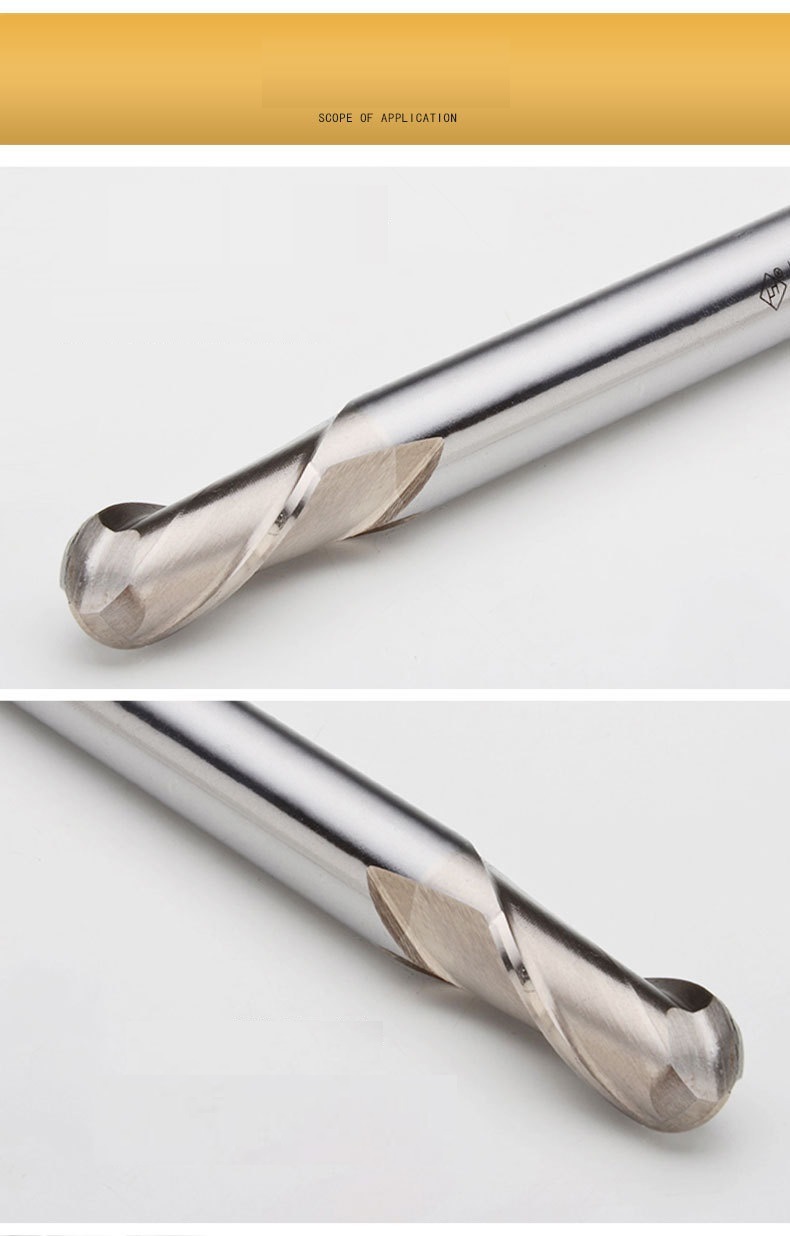

HSS End Mills with DIN327 standard
1.with ball nose type;
2. Material: W4341, W9341, M2, M35, M42;
3. Fully Ground;
4. surface treatment:White Finish; Titanium Coated, TiAlN Coated;
5. Round Shank, One Flat Key Shank

An end mill is a type of milling cutter, a cutting tool used in industrial milling applications.

A milling bit can generally cut in all directions.

End mills are used in milling applications such as profile milling, tracer milling, face milling, and plunging

Material: High Speed Steel HSS M2

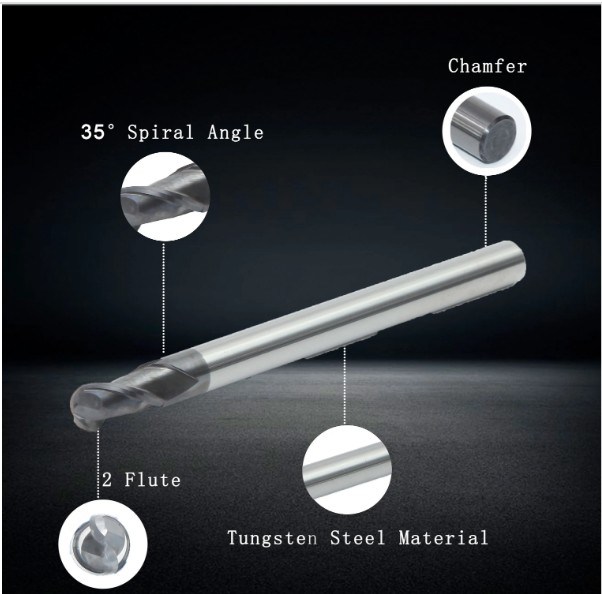

Flute: 2/3/4 Flute
Helix Angle: 30
Process: Full Ground
Application: General-purpose operation Slotting, Drilling, Profiling
Working Machine: CNC (computer numeric controlled) tool and cutter grinder machines
Lubricant: Water, water-soluble oil, and high-flashpoint oil
Workpiece material: General Steel, carbon steel, stainless steel, aluminum, non ferrous material

Non standard end mill and OEM services are available for your request.
