HSS Ball Nose End Mill with DIN844 (SED-EM-BN844)

Quantity:



Inquire Add to Basket

Coating:
Coating
Tooth Form:
Spiral Tooth
Tooth Space:
Sparse Tooth
Structure:
Indexable Type
Material:
High Speed Steel
Type:
Vertical Milling Cutter
Model NO.:
SED-EM-BN844
Diameter:
1mm-32mm
Package:
PVC Box or as Per Request
Min Qty:
20
Surface Treatment:
Original
Oeverall Length:
50-100mm
Transport Package:
PVC Box
Specification:
ballnose end mill
Trademark:
EASYDRILL
Origin:
China
HS Code:
8207709000
Production Capacity:
2000sets/Month
Customization:
Available | Customized Request

Product Description

Product Description

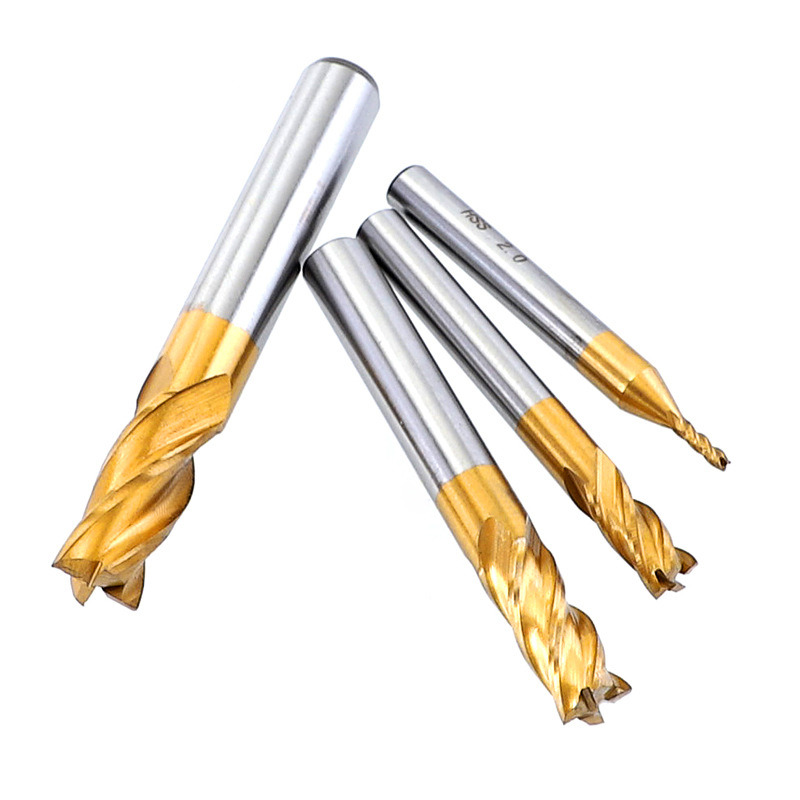

HSS End Mills with DIN844 BAll NOSE
1.with square flute
2. Material: W4341, W9341, M2, M35, M42;
3. Fully Ground;
4. surface treatment:White Finish; Titanium Coated, TiAlN Coated;
5. Round Shank,

An end mill is a type of milling cutter, a cutting tool used in industrial milling applications.

A milling bit can generally cut in all directions.

End mills are used in milling applications such as profile milling, tracer milling, face milling, and plunging.

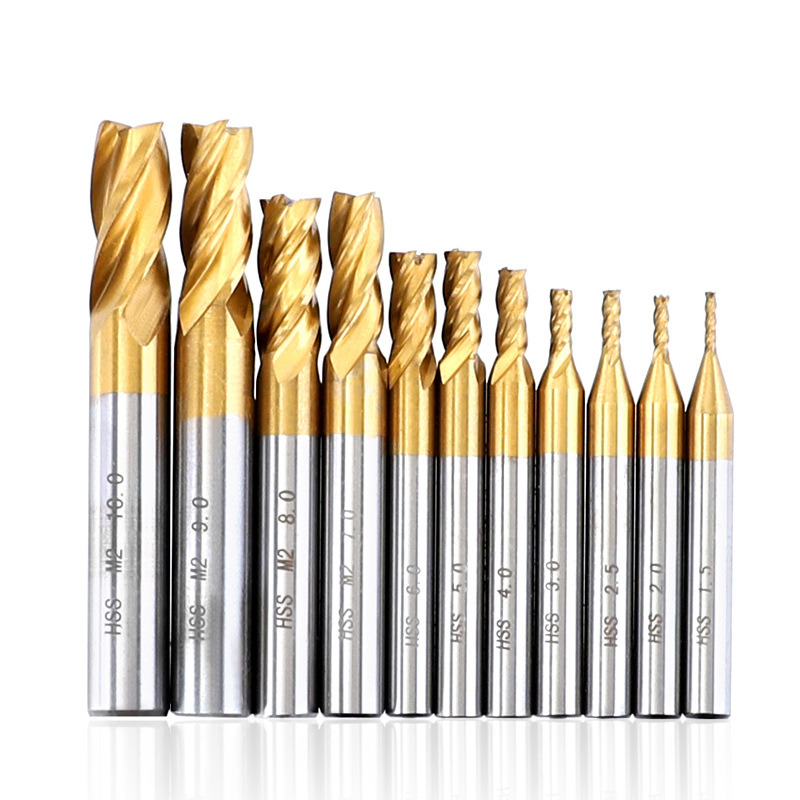

Product Name: HSS Full Ground Square End Mill Milling Cutter
Material: High Speed Steel HSS M2
Flute: 2/3/4 Flute
Helix Angle: 30
Process: Full Ground
Application: General-purpose operation Slotting, Drilling, Profiling
Working Machine: CNC (computer numeric controlled) tool and cutter grinder machines
Lubricant: Water, water-soluble oil, and high-flashpoint oil
Workpiece material: General Steel, carbon steel, stainless steel, aluminum, non ferrous material

Non standard end mill and OEM services are available for your request.

Item Number	Dia	Flute Length	Shank Dia	Total Length	Weight	Box Dimension	NO.of flute
Item Number	(mm)	(mm)	(mm)	(mm)	(g)	(mm)
EM-BN84401	4	12	6	60	14	141462	2/3/4F
EM-BN84402	6	19	6	63	15	151565	2/3/4F
EM-BN84403	16	42	16	95	135	2222103	2/3/4F
EM-BN84404	18	42	16	95	146	2222125	2/3/4F
EM-BN84405	20	38	20	104	223	2727115	2/3/4F
