DIN345 Fully Ground HSS Drills HSS Drill Titanium Coated HSS Taper Shank Drill Bit (SED-HTST)

DIN345 Fully Ground HSS drills HSS drill Titanium Coated HSS Taper Shank Drill Bit

1.Material: HSS 4241, 4341, 9341, M2, M35

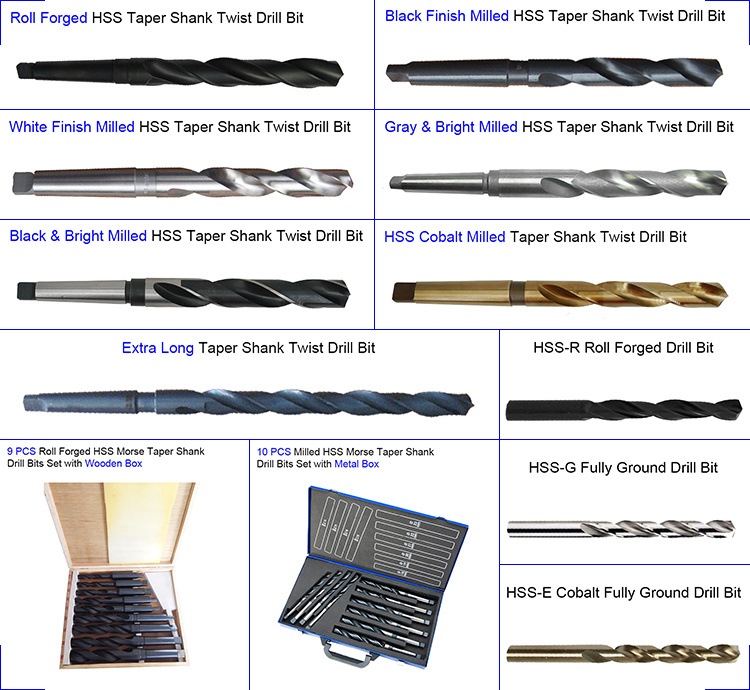

2. Process: 6.0-33.0mm Roll Forged, 31.0-100.0mm Milled or fully ground;
3. Standard: Strictly as per DIN345 specification requested.
4.Surface: bright White, Black, White Edge, Tin-Coated (pic:titanium coated)
5. Application: fully ground for Drilling deep hole on Non-Alloy Steel, Alloy Steel, Grey Cast Iron, Malleable Cast Iron, special aluminum or magnesium alloy.normal steel, cast-steel alloyed, die-cast metal, iron sinter, nickel-silver, graphite cast iron, short-chipping aluminium alloys, bronze and brass.
6. 118 Degree.
Size: 6.0-100.0mm
7. Package: One PC into a Paper Tube or Plastic Tube, also Set Cases are available.
8.Taper shank is used in a taper socket which are sized by the standard morsetaper sizes.
9.Metric Size available ( DIN345 Standard ):
5mm ~ 13.2mm
13.5mm ~ 23.0mm
23.25mm ~ 31.75mm
10.Inch Size available ( ANSI B94.11M Standard ):
3/16" ~ 15/32"
31/64" ~ 25/32"
51/64" ~ 1-1/16"
1-5/64" ~ 1-1/4"
