Customized
DIN
Taper-length
Twist Drill Bit
High Speed Steel
Metal Drilling
SED-HTSF
Taper Shank
Forged
Black
135 or 118
100PCS Per Size
Oil Paper, Paper Box, Plastic Tube, Set Cases
SGS
EASYDRILL
China
820750900
20, 000PCS/Month
Available | Customized Request
Product Description
| Procuct Name | Black and White DIN345 forged High Speed Steel HSS Morse Drill Bits |
| Material | HSS 4241 4341 6542-M2 (Cobalt 5% M35 is Available) |
| Process | Milled (Roll Forged is Available) |
| Standard | ANSI (DIN345, DIN341, DIN1870 are Also Available) |
| MT No. | No.1 to No.6 |

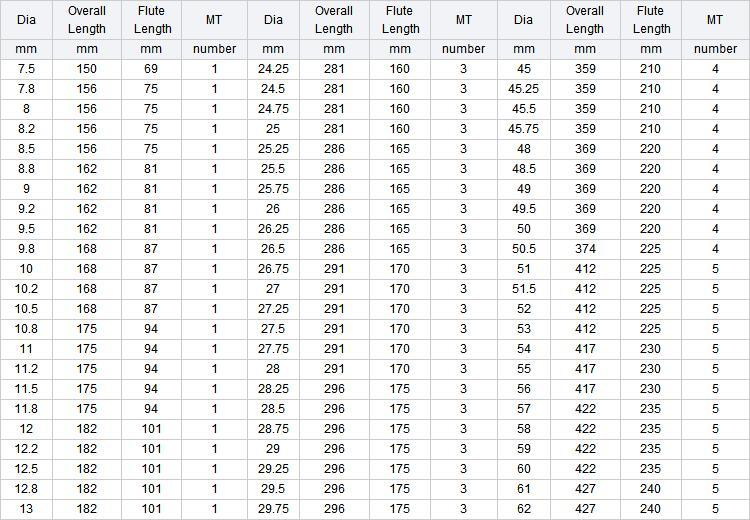

| Size | 3/8" to 4" and 7.5mm-100mm |
| Flute Type | Type N, Right Hand Cutting |
| Point Angle | 118 Degree (135 Degree Split Point, Thinning Point are Available) |
| Surface Finish | Black & White (Black Oxide, Gray & Bright, Bright, Amber Color, Titanium Coating are Also available) |
| Package | One Piece in Paper Box,Plastic Box,Wood Box. |
| Features | 1. Precise dimension,long life and high efficiency. 2. High-speed steel (HSS) provides hardness for wear resistance 3. Black Flute and White body, anti-rusted and reduce friction for fast drilling speed 4. Self-centering 118-degree notched point penetrates material without a pilot hole more easily than a conventional point, and maintains a sharp cutting edge 5. Morse taper shank allows the tool to be inserted directly into the machine's spindle to facilitate high-torque applications such as large cut diameters 6. When run in a counterclockwise direction (right-hand cut) spiral fluted tools evacuate chips up and out of the cut to reduce clogging 7. Designed to perform in a broad range of materials in the iron and steel families |
