DIN338 Jobber Length Drills HSS Drill Fully Ground HSS Twist Drill Bit for Metal Stainless Steel Aluminium PVC Hardened Iron Drilling (SED-HTJ02)

Quantity:
  • Customized

  • DIN

  • Jobber-length

  • Twist Drill Bit

  • High Speed Steel

  • Metal Drilling

  • SED-HTJ02

  • 1mm-20mm

  • Fully Ground or Forged

  • 1000PCS/Size

  • PVC Bag,Setcase,Plastic Box,Metal Box

  • Black and Amber

  • PVC Bag, Blister Card, Plastic Box, Metal Box etc

  • ISO9001, SGS, CE

  • EASYDRILL

  • China

  • 820750900

  • 200, 000PCS/Month

  • US$ 1/Piece 1 Piece(Min.Order) | Request Sample

Product Description

DIN338 Jobber Length drills HSS P6M5 Cobalt Drill Bit for Metal Aluminium Stainless Steel PVC Iron

Material:High Speed Steel, HSS M35, M42
Use:Metal Drilling
Process:Fully Ground
Standard:DIN338, Jobber Length
Point Angle:135 Degree Split Point
Shank:Straight Shank
Flute Type:Type N, Spiral Flute Right Hand
Size:1-20mm, 1/16"- 1", #1-#90, A-Z
Surface Finish:Amber Color
Application:For Drilling Metal,Hard Steel and Stainless Steel.
Product Name DIN338 Jobber Length Fully Ground HSS Heavy Duty Drill Bit
Material HSS (HSS Cobalt is Available)
Process Fully Ground (Rolled & Polished, Rolled, Milled are Available)
Standard

DIN338 (Stub DIN1897, Long DIN340, Extra Long DIN1869,

Blacksmith Reduced Shank 10mm, 13mm, DIN345 Taper Shank are Available)

Jobber Length (Stub Screw Machine Length, Long Taper Length, Airctraft Extensoin,

Extra Long 12", 18", 24", Silver & Deming 1/2" Reduced Shank are Available)

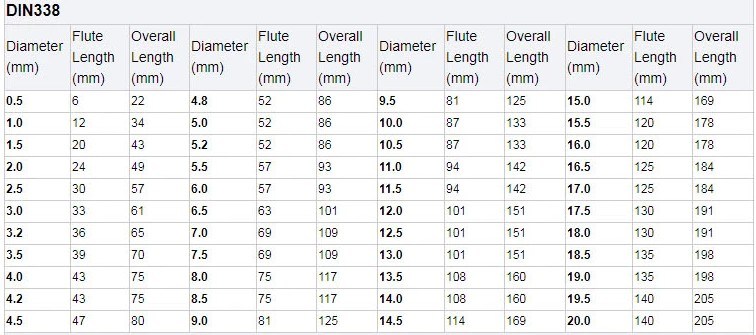

Size 1 - 20mm, 1/16" - 1" , A - Z, 1# - 90#
Point Type 135 Degree Split Point (118 Degree Regular Point, Turbo Max Point, Pilot Point are Available)

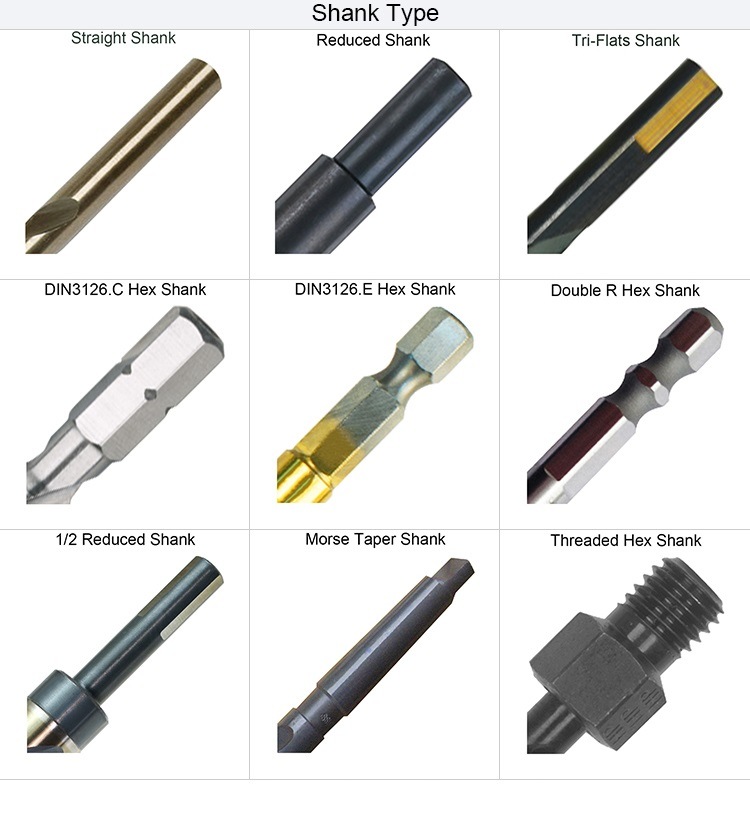

Shank Type

Straight Shank (Hex Shank, Tri-Flats Shank, Double R Hex Shank, Reduced Shank,

Threaded Hex Shank, Taper Shank are Available)

Helix Angle Regular Spiral Type N (Slow Spiral Type H, Fast Spiral Type W, Left Hand Spiral are Available)
Web & Flute Type Heavy Duty Web with Regular Flute (Regular Web & Flute, Thick Web with Parabolic Flute are Available)
Surface Finish Black & Gold (Bright, Black Oxide, Amber Color, Titanium, Black & Bright are Available)
Package 10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell.
Features

1.Cobalt drill bits are more expensive than other drill bits, but if you regularly drill through metal, they are a

good investment since they tend to last longer.
2.No center punch is needed-the aggressive 135° Quick-Cut points are self-centering and penetrate

quickly with lesspressure. Will not "walk" or "wander".
3.Thick core for increased rigidity in hard materials.
4.Ground flutes provide fast chip removal to maximize accuracy and efficiency along the full working surface

of the bit.
5.DIN 338 jobber series drill bits are ideal for many trade and industrial projects.
