Customized
DIN
Jobber-length
Twist Drill Bit
High Speed Steel
Metal Drilling
SED-HTSH
2mm-20mm
Fully Ground or Forged
1000PCS/Size
PVC Bag,Setcase,Plastic Box,Metal Box
White
PVC Bag, Blister Card, Plastic Box, Metal Box etc
ISO9001, SGS, CE
EASYDRILL
China
820750900
200, 000PCS/Month
US$ 1/Piece 1 Piece(Min.Order) | Request Sample
Product Description
| Product Name | DIN3126 Fully Ground HSS Stub Hex Shank Drill Bit for Metal |
| Material | HSS (HSS Cobalt M35 is Available) |
| Process | Fully Ground (Rolled & Polished, Rolled, Milled are Available) |

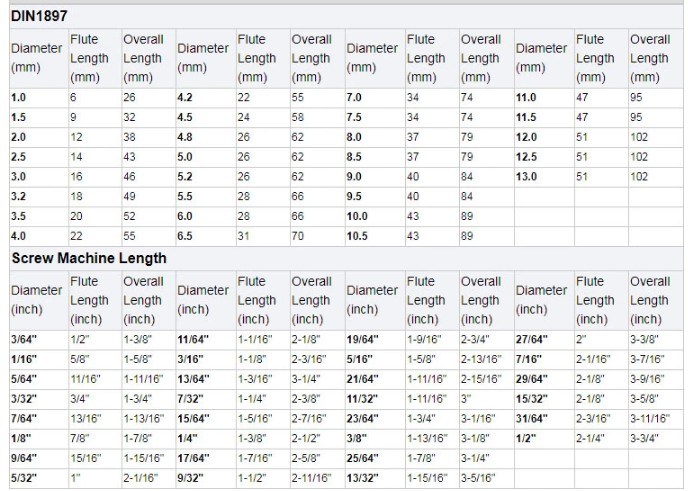

| Standard | Stub DIN1897 (DIN338, Long DIN340, Extra Long DIN1869, Blacksmith Reduced Shank 10mm, 13mm, DIN345 Taper Shank are Available) Stub Screw Machine Length (Jobber Length, Long Taper Length, Airctraft Extensoin, Extra Long 12", 18", 24", Silver & Deming 1/2" Reduced Shank are Available) |
| Size | 1 - 13mm, 3/64" - 1/2" |
| Point Type | 118 Degree Regular Point (135 Degree Split Point, Turbo Max Point, Pilot Point are Available) |

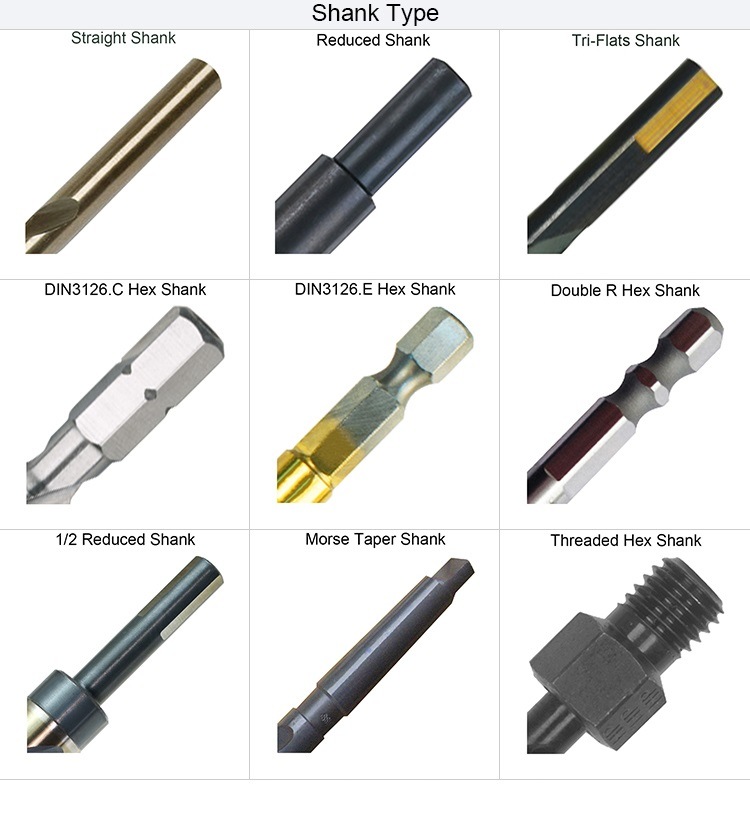

| Shank Type | Hex Shank (Straight Shank, Tri-Flats Shank, Double R Hex Shank, Reduced Shank, Threaded Hex Shank, Taper Shank are Available) |
| Helix Angle | Regular Spiral Type N (Slow Spiral Type H, Fast Spiral Type W, Left Hand Spiral are Available) |
| Web & Flute Type | Regular Web & Flute (Thikc Web with Parabolic Flute, Heavy Duty Web with Regular Flute are Available) |
| Surface Finish | Bright (Black Oxide, Amber Color, Titanium, Black & Gold, Black & Bright are Available) |
| Package | 10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell. |
| Features | 1.Cobalt drill bits are more expensive than other drill bits, but if you regularly drill through metal, they are a good investment since they tend to last longer. with lesspressure. Will not "walk" or "wander". of the bit. |
