DIN1897 HSS Drills HSS Double Ends Drill Bit with Amber Finish (SED-HDEA)

Quantity:
  • Customized

  • DIN

  • Twist Drill Bit

  • High Speed Steel

  • Metal Drilling

  • 3.0mm-6.5mm

  • SED-HDEA

  • Amber,Bright White,Tin-Coated

  • 135 Split Degree

  • 1000PCS/Size

  • Box,PVC Bag,Tube

  • PVC Bag, Blister Card, Plastic Box

  • ISO9001, SGS

  • EASYDRILL

  • China

  • 820750900

  • 100, 000PCS/Month

  • Available | Customized Request

Product Description

DIN1897 HSS Double Ends Drill Bit with Amber finish

1. Material: 4241, 4341, 9341, 6542, M2, M35, and M42 +Co 5% etc. double ended.
2. Manufacturing Art: Fully ground,milled,forged.
3. Application: For drilling in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastic,or wood.
4. Packing: Paper box, or Plastic box,punch bag,set case etc
5. Dia Size: 3.0mm-6.5mm
6.Surface finish:bright white,black,tin-coated, black&yellow,bronze coated,rainbow,Zirconium coated,coffee etc (pic:bright)

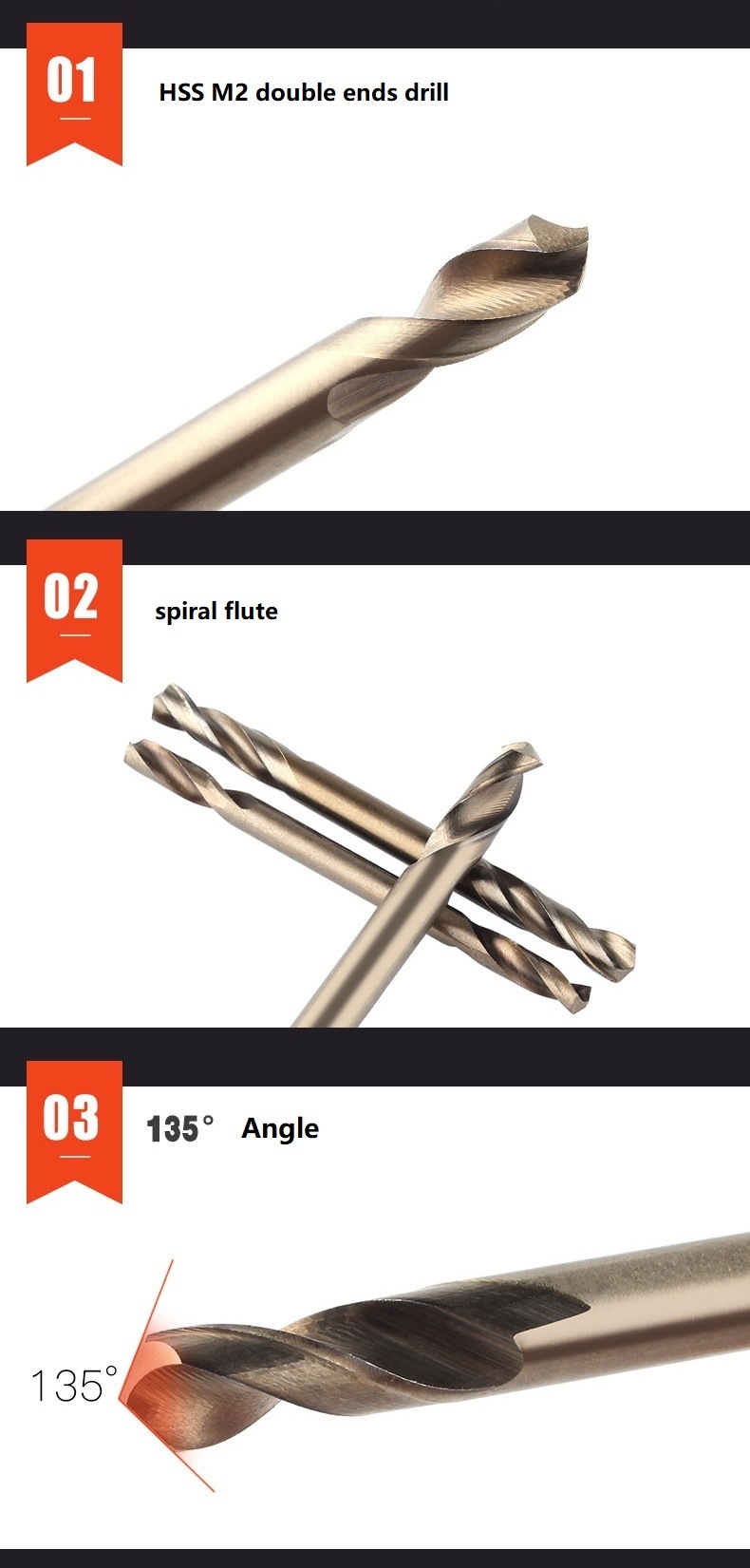

7.135 degree or 118 degree;
8.Double End twist Drills are fluted and split pointed on both ends and have a solid center shank for chucking. They will drill twice as many holds as a Single End Drill for only a fraction more in cost. When one end gets dull or breaks, it can be quickly reversed in drill chuck to reduce change-over time, overall costs, and inventory.

9.suitable for metal drilling metal 5mm thickness with less hardness HRC35.
Dia.mm Working Length mm Overall Length mm
2 8 38
2.5 10 43
3 11 46
3.2 11 49
3.5 14 52
4 14 55
4.5 17 58
5 17 62
5.5 19 66
6 19 66
6.5 22 70
Dia. Working Length Overall Length
1/16 3/8 1 1/2
5/64 3/8 1 1/2
3/32 3/8 1 11/16
7/64 1/2 1 13/16
1/8 1/2 1 13/16
9/64 5/8 2 1/16
5/32 5/8 2 3/16
3/16 5/8 2 5/16
7/32 3/4 2 5/8
1/4 3/4 2 7/8
