Big size HSS jobber drills 3/4" Reduced Shank Sliver&Deming HSS twist Drill Bit

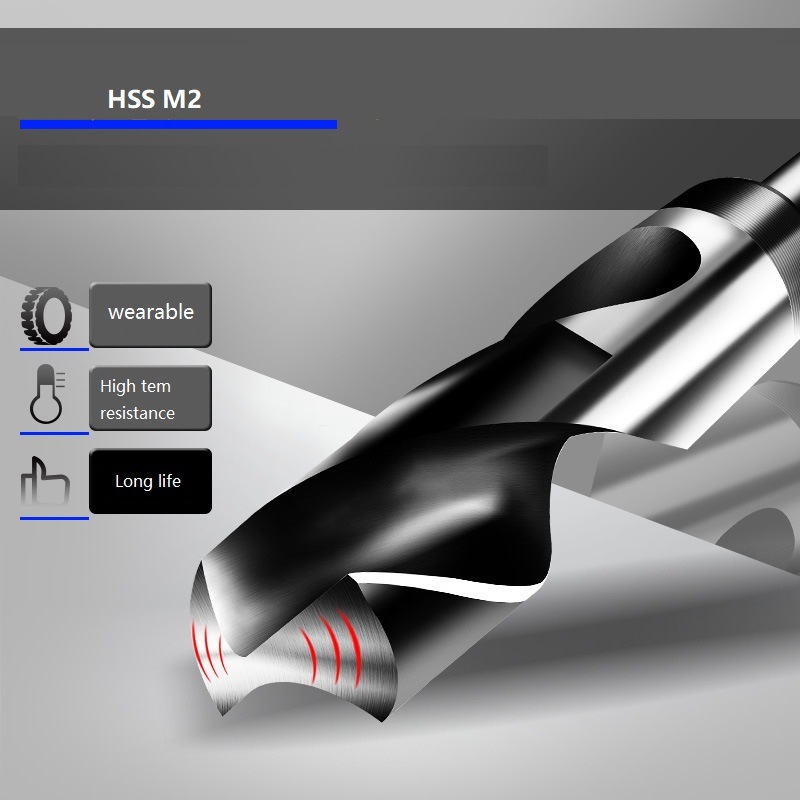

1.Material: HSS 4241, 4341, 9341, M2, M35 with Standard right hand spiral.
2.Surface: bright White, Black oxide, White Edge, Titanium Coated

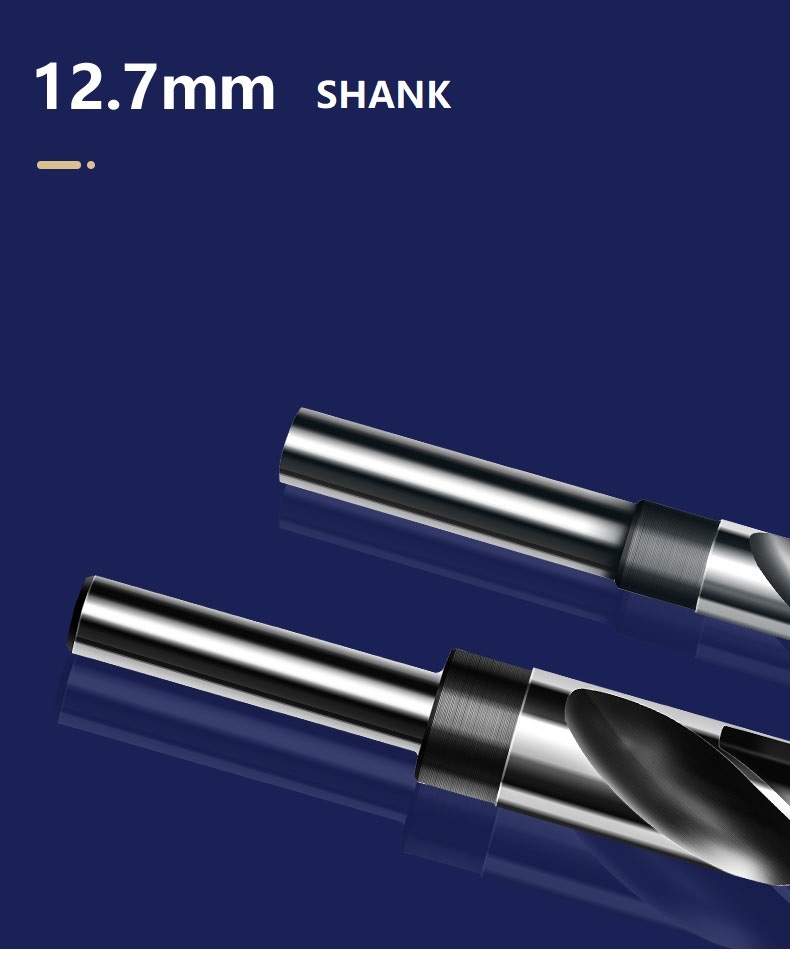

3.all sizes have 3/4" Reduced Shank, 3" Flute Length and 6" Overall Length..
4.Point Angle:118 degree and 135 split point angle

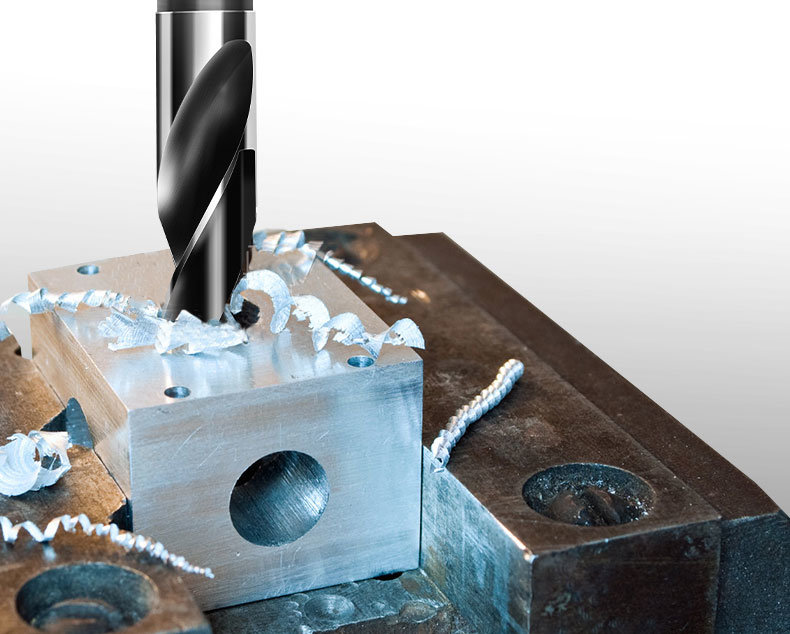

5. Application: For machine drilling in ferrous or non-ferrous metals. Ground oxide finish flutes retain lubricants and ease chip welding when drilling cast iron, steel, etc.
6. Package: One PC into a Paper Tube or Plastic Tube, also Set Cases are available.

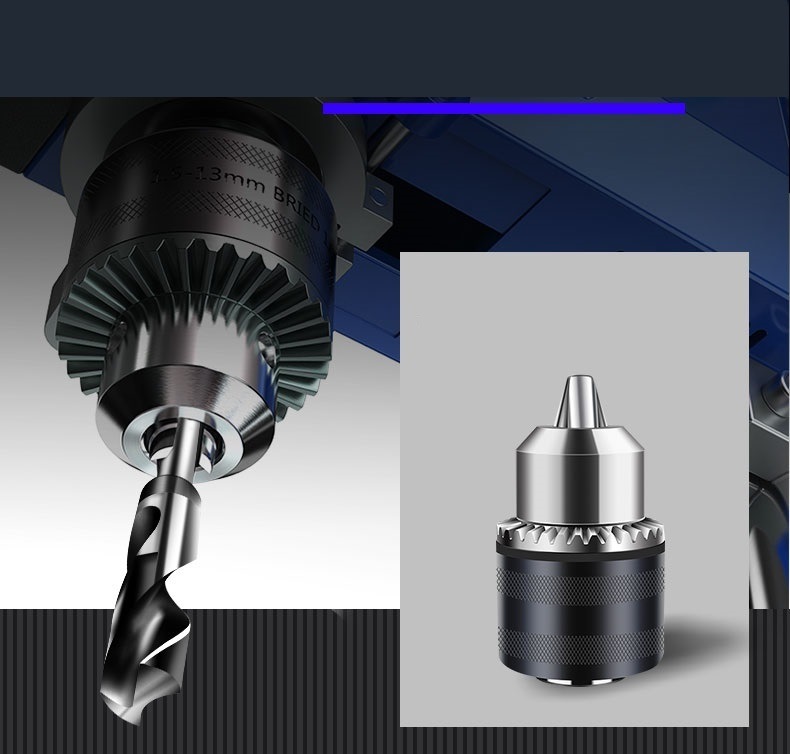

7.3/4" Reduced Shank Drills are used for drilling holes larger than the capacity of a 3/4" drill chuck. Reduced shank drills should only be used for light to medium duty Drilling applications as they do not have the torque strength of a straight shank drill. Reduced shank is not as hard as the body of drill to allow more flex and less breakage.
8.Round Shank or 3 Flat Shank are available on request.
9.For heavy duty drilling of larger holes requiring reduced diameter straight shank drills, Suitable for most drilling operations in a wide array of materials having low and medium tensile strength ratings.
D | L | l |
MM | MM | MM |
6 | 225 | 145 |
6.1-6.7 | 230 | 150 |
6.8-7.6 | 235 | 155 |
7.7-8.6 | 240 | 160 |
8.7-9.5 | 245 | 165 |
9.6-10.6 | 250 | 170 |
10.7-11.8 | 255 | 175 |
11.9-13.2 | 260 | 180 |
13.3-14 | 265 | 185 |
14.25-15 | 290 | 190 |
15.25-16 | 295 | 195 |
16.25-17 | 300 | 200 |
17.25-18 | 305 | 205 |
18.25-19 | 310 | 210 |
19.25-20 | 320 | 220 |
20.25-21 | 330 | 230 |
21.25-22.25 | 335 | 235 |
22.5-23 | 340 | 240 |
23.25-23.5 | 360 | 240 |
