Triple Tips SDS Max Shank Electric Hammer Drill Bits SDS Drill Bits with Double Flutes (SED-SMTD)

Quantity:
  • Customized

  • DIN

  • Core Drill Bit

  • High Carbon Steel

  • Masonry Drilling, Concrete Drilling

  • Triangle Tips

  • SED-SMTD

  • Single

  • SDS Max Shank

  • 200PCS/Size

  • PVC,Hanging Card,Plastic Tube etc

  • PVC, Hanging Card, Plastic Tube

  • ISO9001, SGS

  • EASYDRILL

  • China

  • 820750900

  • 80, 000PCS/Month

  • US$ 10/Piece 1 Piece(Min.Order) | Request Sample

Product Description

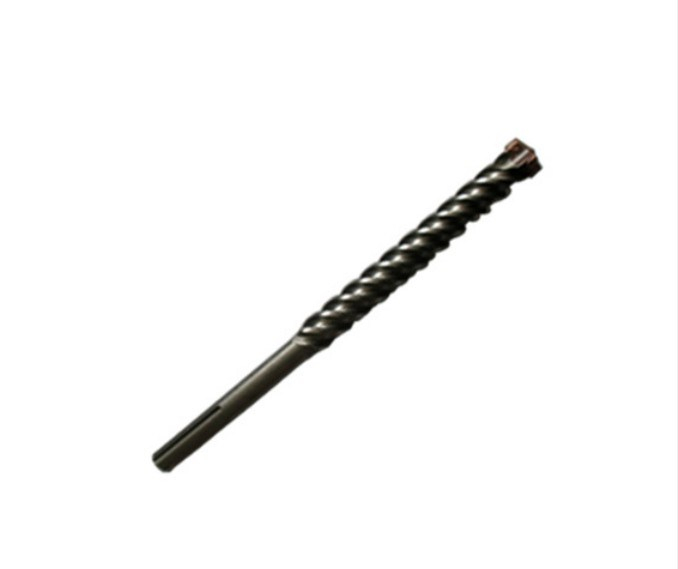

Triple Tips SDS Max Shank Electric Hammer Drill Bits SDS drill bits with double flutes


1.Material with 40CR and tip with YG8C.
2.tip: triangle tips
3.Higher drill speed, stronger output power.
4.flute: single flute or double flutes;
5.It is used in concrete, armoured concrete, tile and granite and suit mounted height ype(5kgs or over 5kgs) electrical drill.
6.Coriaceous drill body and new design flute which will advance work efficiency and prolong use life.
7.Packing: Each with PVC pouchbag or plastic hanger, plastic tube,or upon request.
8.Diameter: 10-45mm. Length: 210-1000mm.
9.7.special triangle tips design for stronger performance.
Diameter x Overall Length(mm) Working Length(mm) Diameter x Overall Length(mm) Working Length(mm)
10.0 x 110 45 16.0 x 160 80
10.0 x 160 97 16.0 x 200 120
10.0 x 210 147 16.0 x 250 180
10.0 x 260 197 16.0 x 300 230
10.0 x 310 247 16.0 x 460 380
10.0 x 360 297 16.0 x 600 520
10.0 x 460 397 16.0 x 800 720
10.0 x 600 537 16.0 x 1000 920
10.0 x 1000 937 17.0 x 200 120
11.0 x 160 95 18.0 x 200 120
11.0 x 210 145 18.0 x 250 175
11.0 x 260 195 18.0 x 300 220
11.0 x 300 235 18.0 x 460 380
12.0 x 160 85 18.0 x 600 520
12.0 x 210 135 18.0 x 1000 920
12.0 x 260 185 19.0 x 200 120
12.0 x 310 235 19.0 x 460 380
12.0 x 460 385 20.0 x 200 120
12.0 x 600 525 20.0 x 300 220
12.0 x 1000 920 20.0 x 460 380
13.0 x 160 80 20.0 x 600 520
13.0 x 210 130 20.0 x 1000 920
13.0 x 260 180 22.0 x 250 175
13.0 x 300 220 22.0 x 450 370
13.0 x 460 380 22.0 x 600 520
14.0 x 160 80 22.0 x 1000 920
14.0 x 200 120 24.0 x 250 175
14.0 x 260 180 24.0 x 450 370
14.0 x 300 220 25.0 x 250 175
14.0 x 460 380 25.0 x 450 370
14.0 x 600 520 25.0 x 600 520
14.0 x 1000 920 25.0 x 1000 920
15.0 x 160 80 26.0 x 250 175
15.0 x 200 120 26.0 x 450 370
15.0 x 260 180 28.0 x 450 370
15.0 x 460 380 30.0 x 460 380
Triple Tips SDS Max Shank Electric Hammer Drill Bits SDS Drill Bits with Double Flutes (SED-SMTD)
Triple Tips SDS Max Shank Electric Hammer Drill Bits SDS Drill Bits with Double Flutes (SED-SMTD) Triple Tips SDS Max Shank Electric Hammer Drill Bits SDS Drill Bits with Double Flutes (SED-SMTD) Triple Tips SDS Max Shank Electric Hammer Drill Bits SDS Drill Bits with Double Flutes (SED-SMTD) Triple Tips SDS Max Shank Electric Hammer Drill Bits SDS Drill Bits with Double Flutes (SED-SMTD) Triple Tips SDS Max Shank Electric Hammer Drill Bits SDS Drill Bits with Double Flutes (SED-SMTD)
Triple Tips SDS Max Shank Electric Hammer Drill Bits SDS Drill Bits with Double Flutes (SED-SMTD)
