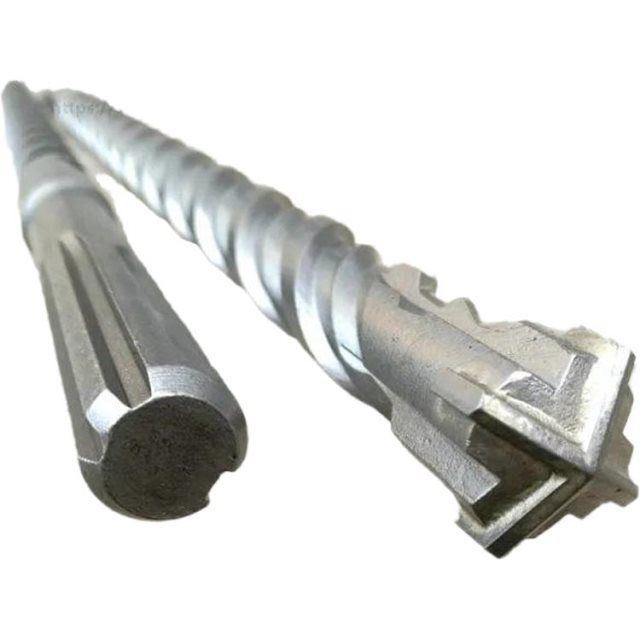

Professional Quality SDS Max Shank Hammer Drill Bit with Cross Tips (SED-SMCT1)

Quantity:
Inquire Add to Basket

  • Customized

  • DIN

  • Core Drill Bit

  • High Carbon Steel

  • Masonry Drilling

  • Cross Tips

  • SED-SMCT1

  • Double Flutes

  • 10mm-45mm

  • SDS Max Shank

  • 100PCS/Size

  • PVC Hanger, Hanging Card, Box

  • SGS, ISO9001, CE

  • EASYDRILL

  • China

  • 820750900

  • 100, 000PCS/Month

  • US$ 10/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Cross Tips 40CR SDS Max Shank Electric Hammer Drill Bits SDS Max Drill Bits for hardworking

1.Material with 40CR and tip with YG8C.

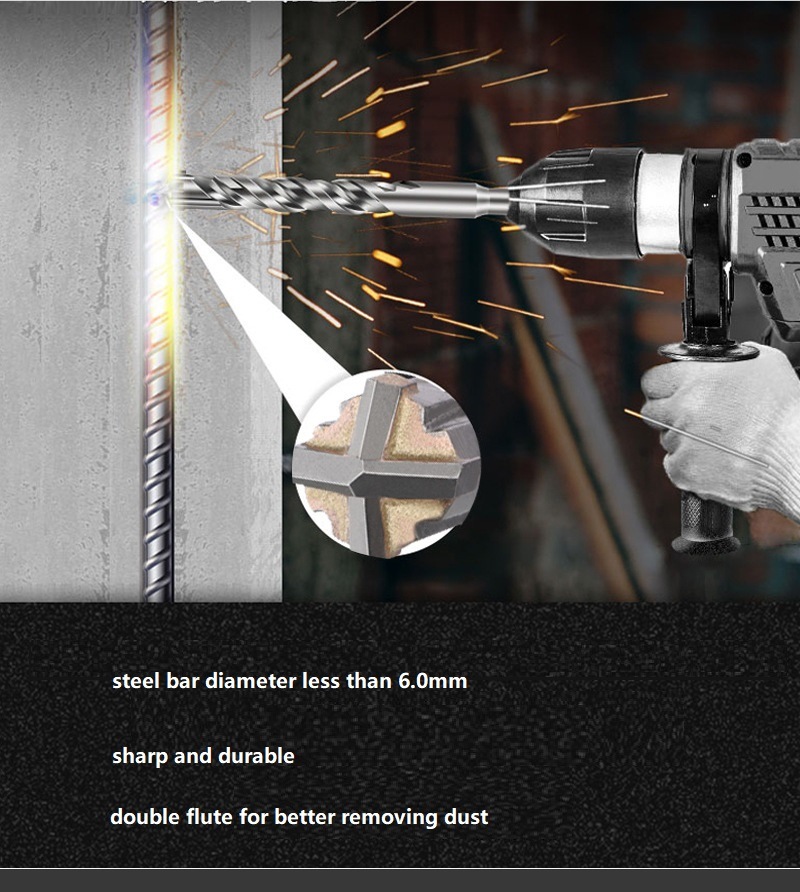

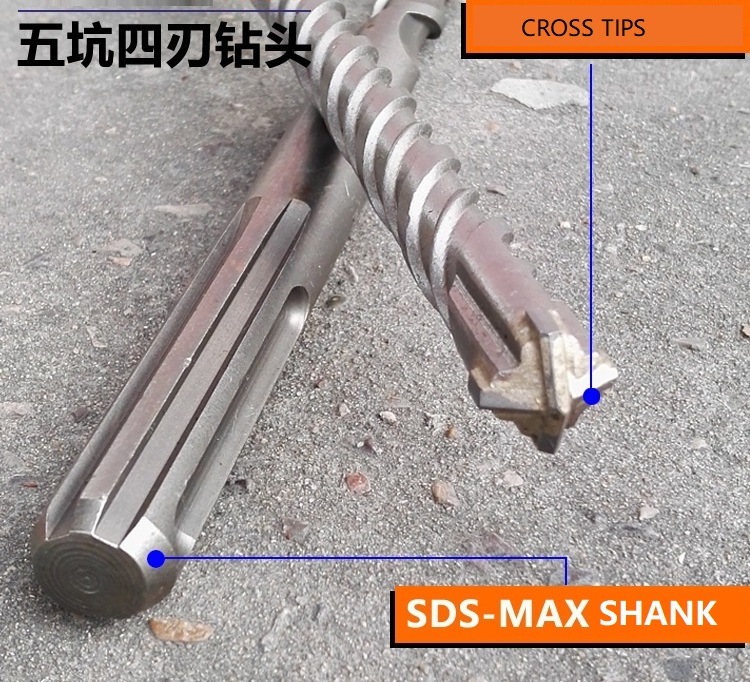

2.cross tip "+"
3.Higher drill speed, stronger output power.
4.flute: double flutes
5.It is used in concrete, armoured concrete, tile and granite and suit mounted height ype(5kgs or over 5kgs) electrical drill.
6.Coriaceous drill body and new design flute which will advance work efficiency and prolong use life.
7.Packing: Each with PVC pouchbag or plastic hanger, plastic tube,or upon request.
8.Diameter: 10-45mm. Length: 110-1000mm.
9.Extremely robust fast drilling bit for SDS systems with brazed carbide tip & shot blast finish.
10.Ideal for efficient drilling in concrete, masonry,granite, brick etc.

Diameter x Overall Length(mm)
Working Length(mm)		 Diameter x Overall Length(mm) Working Length(mm)
12.0 x 340 200 24.0 x 320 200
12.0 x 390 210 24.0 x 520 400
12.0 x 540 400 24.0 x 540 400
12.0 x 690 550 25.0 x 320 200
13.0 x 390 250 25.0 x 520 400
13.0 x 540 400 25.0 x 920 800
14.0 x 340 200 26.0 x 370 250
14.0 x 390 210 26.0 x 520 400
14.0 x 540 400 28.0 x 370 250
15.0 x 340 200 28.0 x 570 450
15.0 x 390 210 28.0 x 670 550
15.0 x 540 400 30.0 x 370 250
16.0 x 340 200 30.0 x 570 450
16.0 x 540 400 32.0 x 370 250
16.0 x 920 770 32.0 x 570 450
18.0 x 340 200 32.0 x 920 800
18.0 x 540 400 35.0 x 370 250
19.0 x 390 250 35.0 x 570 450
19.0 x 540 400 38.0 x 570 450
20.0 x 320 200 40.0 x 370 250
20.0 x 520 400 40.0 x 570 450
20.0 x 920 800 40.0 x 920 800
22.0 x 320 200 40.0 x 1320 1200
22.0 x 520 400 45.0 x 570 450
22.0 x 920 800 50.0 x 570 450
