SDS Plus Shank Electric Hammer Drill Bits SDS Drill Bits with Single Flute for Concrete&Masonry (SED-SPS)

Quantity:
Inquire Add to Basket

  • Customized

  • DIN

  • Core Drill Bit

  • High Carbon Steel

  • Masonry Drilling, Concrete Drilling

  • SDS Plus Shank

  • SED-SPS

  • Straight Tip

  • Heat Treated, Sand Blast, Black

  • Single

  • PVC Bag,Plastic Box,Hanging Bag

  • Pouch Bag, Plastic Holder, Plastic Tube, Set Case

  • ISO9001, SGS

  • EASYDRILL

  • China

  • 820750900

  • 100, 000PCS/Month

  • US$ 0/Piece 1 Piece(Min.Order) | Request Sample

Product Description

SDS Plus Shank Electric Hammer Drill Bits SDS drill bits with single flute for Concrete&Masonry

1.Material: carbide tip and 40Cr steel
2.heat treatment fully and sand blast

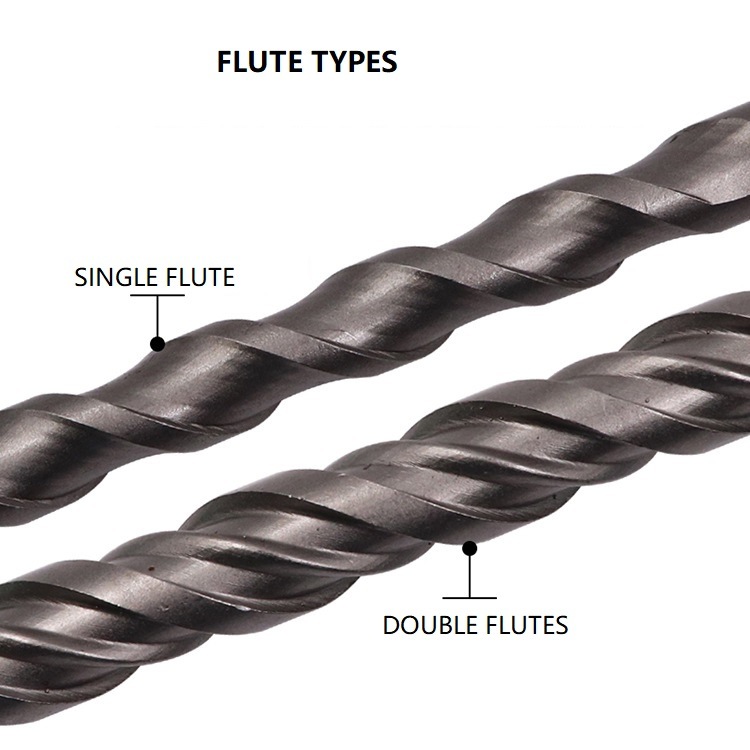

3.Flute: double flutes;
4.designed for concrete, , Masonry and stone drilling.
5.tip: "-" straight tip
6.good performance with long life.
7.Dia size: 4mm-30mm, O/A Length: 110mm-1200mm for choice.
8.Package: pvc bag,plastic tube,plastic hanger ,set case etc
9.Shank: SDS plus Shank.

Diameter x Overall Length(mm)
Working Length(mm)		 Diameter x Overall Length(mm) Working Length(mm)
4.0 x 110 45 14.0 x 160 80
4.0 x 160 95 14.0 x 200 120
5.0 x 110 45 14.0 x 260 180
5.0 x 160 95 14.0 x 300 220
5.0 x 210 147 14.0 x 460 380
5.0 x 260 147 14.0 x 600 520
5.0 x 310 247 14.0 x 1000 920
6.0 x 110 45 15.0 x 160 80
6.0 x 160 97 15.0 x 200 120
6.0 x 210 147 15.0 x 260 180
6.0 x 260 197 15.0 x 460 380
6.0 x 460 397 16.0 x 160 80
7.0 x 110 45 16.0 x 200 120
7.0 x 160 97 16.0 x 250 180
7.0 x 210 147 16.0 x 300 230
7.0 x 260 147 16.0 x 460 380
8.0 x 110 45 16.0 x 600 520
8.0 x 160 97 16.0 x 800 720
8.0 x 210 147 16.0 x 1000 920
8.0 x 260 197 17.0 x 200 120
8.0 x 310 247 18.0 x 200 120
8.0 x 460 397 18.0 x 250 175
8.0 x 610 545 18.0 x 300 220
9.0 x 160 97 18.0 x 460 380
9.0 x 210 147 18.0 x 600 520
10.0 x 110 45 18.0 x 1000 920
10.0 x 160 97 19.0 x 200 120
10.0 x 210 147 19.0 x 460 380
10.0 x 260 197 20.0 x 200 120
10.0 x 310 247 20.0 x 300 220
10.0 x 360 297 20.0 x 460 380
10.0 x 460 397 20.0 x 600 520
10.0 x 600 537 20.0 x 1000 920
10.0 x 1000 937 22.0 x 250 175
11.0 x 160 95 22.0 x 450 370
11.0 x 210 145 22.0 x 600 520
11.0 x 260 195 22.0 x 1000 920
11.0 x 300 235 24.0 x 250 175
12.0 x 160 85 24.0 x 450 370
12.0 x 210 135 25.0 x 250 175
12.0 x 260 185 25.0 x 450 370
12.0 x 310 235 25.0 x 600 520
12.0 x 460 385 25.0 x 1000 920
12.0 x 600 525 26.0 x 250 175
12.0 x 1000 920 26.0 x 450 370
13.0 x 160 80 28.0 x 450 370
13.0 x 210 130 30.0 x 460 380
13.0 x 260 180

13.0 x 300 220

13.0 x 460 380

SDS Plus Shank Electric Hammer Drill Bits SDS Drill Bits with Single Flute for Concrete&Masonry (SED-SPS)
SDS Plus Shank Electric Hammer Drill Bits SDS Drill Bits with Single Flute for Concrete&Masonry (SED-SPS)
SDS Plus Shank Electric Hammer Drill Bits SDS Drill Bits with Single Flute for Concrete&Masonry (SED-SPS) SDS Plus Shank Electric Hammer Drill Bits SDS Drill Bits with Single Flute for Concrete&Masonry (SED-SPS) SDS Plus Shank Electric Hammer Drill Bits SDS Drill Bits with Single Flute for Concrete&Masonry (SED-SPS)
SDS Plus Shank Electric Hammer Drill Bits SDS Drill Bits with Single Flute for Concrete&Masonry (SED-SPS)
