High Quality Construction Drill Bits Masonry Drill Bits (SED-MD-CD)

Quantity:



Inquire Add to Basket

Customized:
Customized
Standard:
DIN
Type:
Core Drill Bit
Material:
High Carbon Steel
Usage:
Masonry Drilling
Manufacturing Art:
Roll Forged
Model NO.:
SED-MD-CD
Surface:
Nickel Plated
Features:
Red Head
Flute:
Single
Diameter:
3mm-25mm
Transport Package:
PVC Bag, Blister Card, Plastic Box, Set Case
Specification:
SGS
Trademark:
EASYDRILL
Origin:
China
HS Code:
820750900
Production Capacity:
100, 000PCS/Month
Samples:
US$ 10/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Product Description

High Quality Construction drill bits Masonry Drill Bits /drilling tools

1.Flute: Single flute;
2.Surface: Nickelplated
3.process: roll forged.
4.Specification: Masonry drill bit is made of high grad alloy and special steel, which Have high strength, high wear resistance and long life
5.Masonry drill bit is used in building industry, installation, boring holes and so on.It is ideal for drilling masonry, brick and concrete can be identified and distinguished from other drill bits with the blunt wide blade on the tip.
6.Diameter Size: 3mm-25mm;Overall Length: 60mm-800mm
7. The ingenious design enables you to drill masonry with a conventional drill - not a hammer drill.
8. Our masonry bits are available for builder merchants and specialist tool shops .

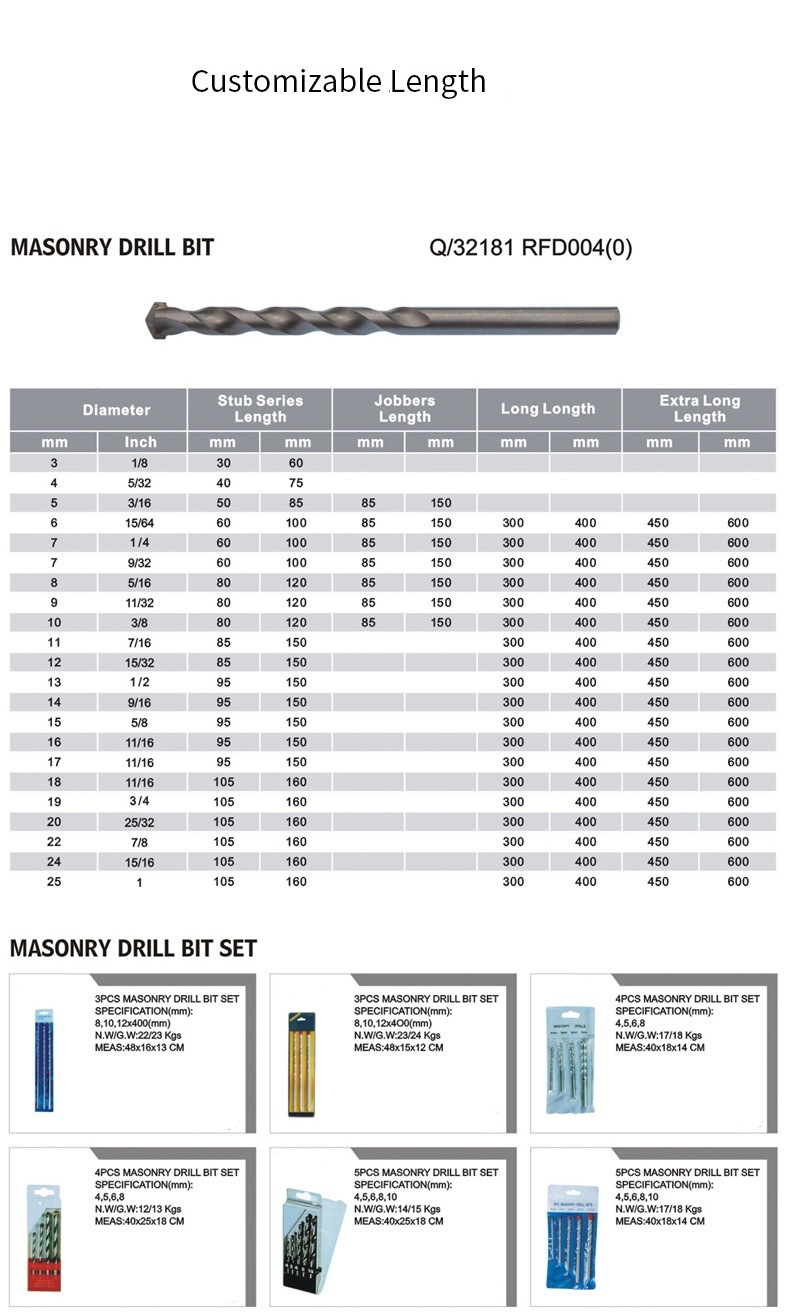

Diameter		Flute	Overall	Flute	Overall	Flute	Overall	Flute	Overall	Flute	Overall	Flute	Overall
Size	Size	Length	Length	Length	Length	Length	Length	Length	Length	Length	Length	Length	Length
mm	Inch	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
3	1/8"	30	60
4	5/32	40	75
5	3/16"	50	85	85	150
6	15/64	60	100	85	150	135	200	200	300	300	400	450	600
6.5	1/4"	60	100	85	150	135	200	200	300	300	400	450	600
7	9/32	60	100	85	150	135	200	200	300	300	400	450	600
8	5/16"	80	120	85	150	135	200	200	300	300	400	450	600
9	11/32	80	120	85	150	135	200	200	300	300	400	450	600
10	3/8"	80	120	85	150	135	200	200	300	300	400	450	600
11	7/16"	85	150			135	200	200	300	300	400	450	600
12	15/32	85	150			135	200	200	300	300	400	450	600
13	1/2"	95	150			135	200	200	300	300	400	450	600
14	9/16"	95	150			135	200	200	300	300	400	450	600
15	19/32	95	150			135	200	200	300	300	400	450	600
16	5/8"	95	150			135	200	200	300	300	400	450	600
17	11/16"	95	150			135	200	200	300	300	400	450	600
18	11/16"	105	160			135	200	200	300	300	400	450	600
19	3/4"	105	160			135	200	200	300	300	400	450	600
20	25/32	105	160			135	200	200	300	300	400	450	600
22	7/8"	105	160			135	200	200	300	300	400	450	600
24	15/16	105	160			135	200	200	300	300	400	450	600
25	1	105	160			135	200	200	300	300	400	450	600
