Competitive Carbide Tip Nickle Plated Masonry Drill Bit (SED-MD-NP)

Quantity:
  • Customized

  • DIN

  • Core Drill Bit

  • High Carbon Steel

  • Masonry Drilling

  • Milled

  • SED-MD-NP

  • Nickle Plated

  • 3mm-25mm

  • Plastic Box,PVC Bag

  • PVC Bag, Blister Card, Plastic Box, Set Case

  • SGS

  • EASYDRILL

  • China

  • 820750900

  • 100, 000PCS/Month

  • Available | Customized Request

Product Description

Chrome plaited High helix Masonry Drill Bits

1.Milled from High carbon steel .
2.Slow spiral for quick, easy debris removal.
3.For For drilling in wood, stone, brick, block and masonry, plastic material and metal etc.
4.High helix, 118-degree point. Engineered with higher helix for drilling in hard concrete, aggregates and similar materials.
5.Surface treatment: Nickel Plated.
6. sizes over From 12mm or 7/16" with reduced shank..
7.Masonry Drill bits set are available.
8.Versatile, durable, long-lasting.

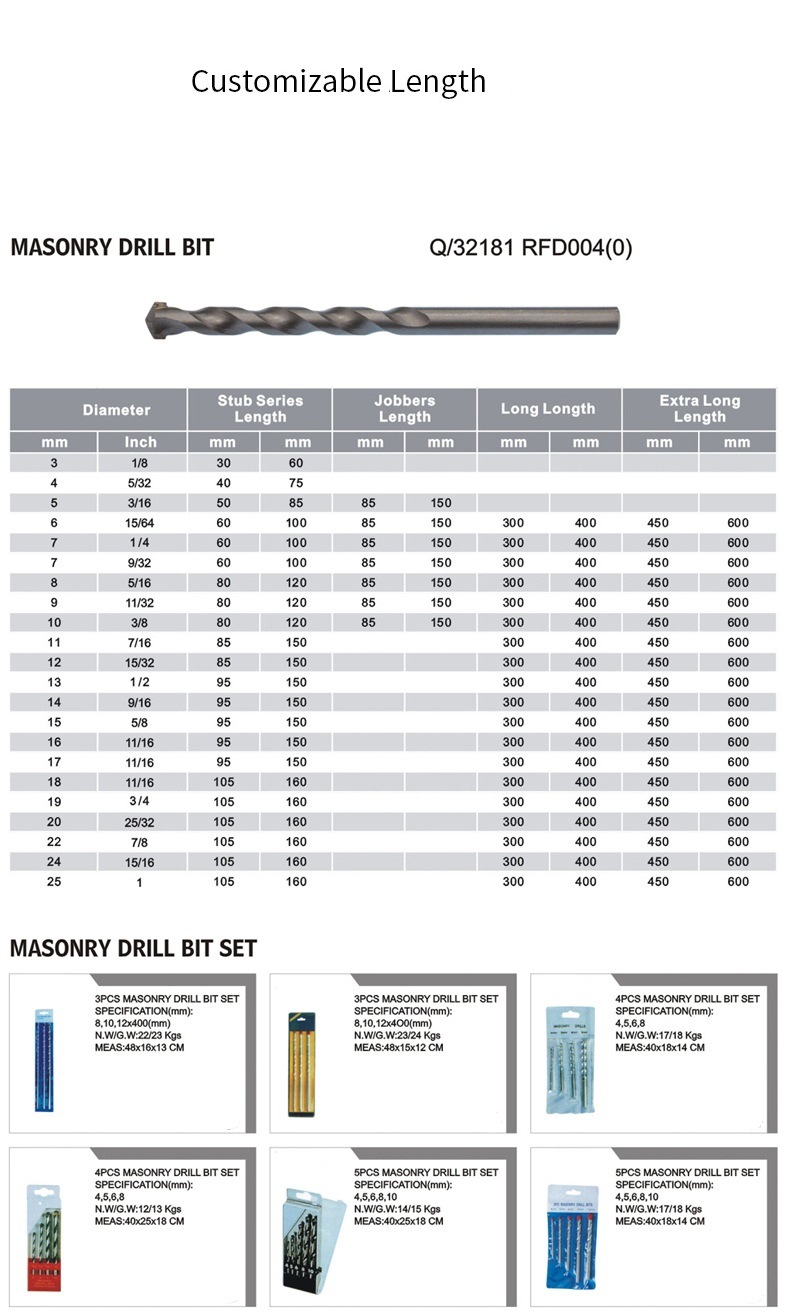

Diameter

Flute
Overall Flute Overall Flute Overall Flute Overall Flute Overall Flute Overall
Size Size Length Length Length Length Length Length Length Length Length Length Length Length
mm Inch mm mm mm mm mm mm mm mm mm mm mm mm
3 1/8" 30 60
4 5/32 40 75
5 3/16" 50 85 85 150
6 15/64 60 100 85 150 135 200 200 300 300 400 450 600
6.5 1/4" 60 100 85 150 135 200 200 300 300 400 450 600
7 9/32 60 100 85 150 135 200 200 300 300 400 450 600
8 5/16" 80 120 85 150 135 200 200 300 300 400 450 600
9 11/32 80 120 85 150 135 200 200 300 300 400 450 600
10 3/8" 80 120 85 150 135 200 200 300 300 400 450 600
11 7/16" 85 150 135 200 200 300 300 400 450 600
12 15/32 85 150 135 200 200 300 300 400 450 600
13 1/2" 95 150 135 200 200 300 300 400 450 600
14 9/16" 95 150 135 200 200 300 300 400 450 600
15 19/32 95 150 135 200 200 300 300 400 450 600
16 5/8" 95 150 135 200 200 300 300 400 450 600
17 11/16" 95 150 135 200 200 300 300 400 450 600
18 11/16" 105 160 135 200 200 300 300 400 450 600
19 3/4" 105 160 135 200 200 300 300 400 450 600
20 25/32 105 160 135 200 200 300 300 400 450 600
22 7/8" 105 160 135 200 200 300 300 400 450 600
24 15/16 105 160 135 200 200 300 300 400 450 600
25 1 105 160 135 200 200 300 300 400 450 600
