Carbide Tip Masonry Drill Bits with Blue Flute Coating (SED-MD-B)

Quantity:



Inquire Add to Basket

Customized:
Customized
Standard:
DIN
Type:
Core Drill Bit
Material:
High Carbon Steel
Usage:
Masonry Drilling
Surface Finish:
Black&White
Model NO.:
SED-MD-B
Tip:
Carbide
Outer Diameter:
3mm-25mm
Package:
PVC,Plastic Box,Set Case
Min Qty:
1000PCS
Transport Package:
PVC Bag, Blister Card, Plastic Box, Set Case
Specification:
SGS
Trademark:
EASYDRILL
Origin:
China
HS Code:
820750900
Production Capacity:
100, 000PCS/Month
Customization:
Available | Customized Request

Product Description

Product Description

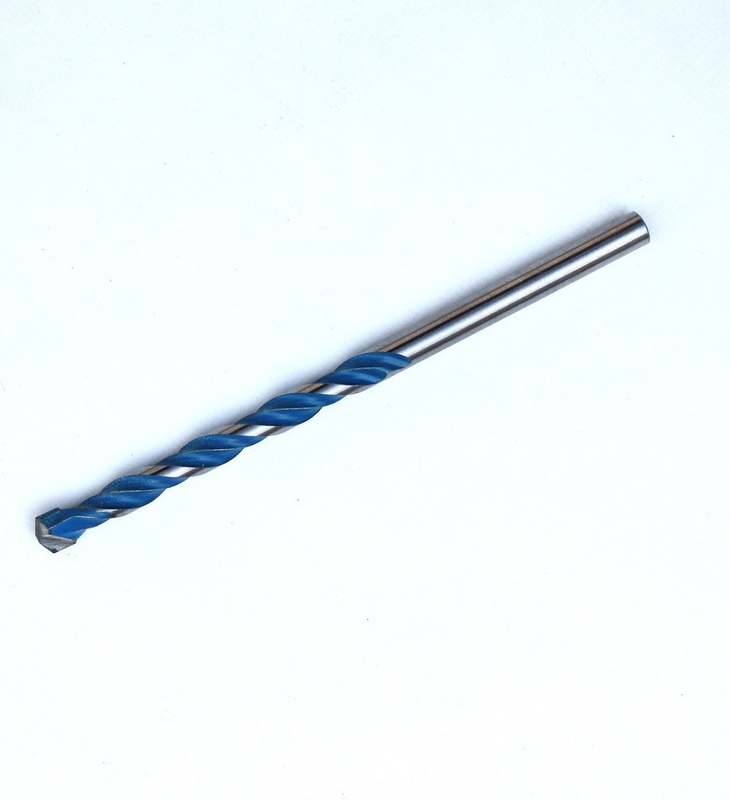

carbide tip Masonry Drill Bits with blue flute coating

1.high carbon steel with carbide tipped cutting edge.
Black groove, edge polished.
Tri-shank are available.
High quality for the professionals.
For use on rotary and percussion drills.
For drilling in concrete, reinforced concrete, brick, block and masonry, etc.
Other surface treatment are available: Galvanized finish, Chrome coated, Nickel Plated, Black finish, Sandblasted finish.
From 11mm or 7/16" use reduced shank.
Drill set are available.

Diameter		Flute	Overall	Flute	Overall	Flute	Overall	Flute	Overall	Flute	Overall	Flute	Overall
Size	Size	Length	Length	Length	Length	Length	Length	Length	Length	Length	Length	Length	Length
mm	Inch	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
3	1/8"	30	60
4	5/32	40	75
5	3/16"	50	85	85	150
6	15/64	60	100	85	150	135	200	200	300	300	400	450	600
6.5	1/4"	60	100	85	150	135	200	200	300	300	400	450	600
7	9/32	60	100	85	150	135	200	200	300	300	400	450	600
8	5/16"	80	120	85	150	135	200	200	300	300	400	450	600
9	11/32	80	120	85	150	135	200	200	300	300	400	450	600
10	3/8"	80	120	85	150	135	200	200	300	300	400	450	600
11	7/16"	85	150			135	200	200	300	300	400	450	600
12	15/32	85	150			135	200	200	300	300	400	450	600
13	1/2"	95	150			135	200	200	300	300	400	450	600
14	9/16"	95	150			135	200	200	300	300	400	450	600
15	19/32	95	150			135	200	200	300	300	400	450	600
16	5/8"	95	150			135	200	200	300	300	400	450	600
17	11/16"	95	150			135	200	200	300	300	400	450	600
18	11/16"	105	160			135	200	200	300	300	400	450	600
19	3/4"	105	160			135	200	200	300	300	400	450	600
20	25/32	105	160			135	200	200	300	300	400	450	600
22	7/8"	105	160			135	200	200	300	300	400	450	600
24	15/16	105	160			135	200	200	300	300	400	450	600
25	1	105	160			135	200	200	300	300	400	450	600

Drill Drills Drill Bit
