5PCS Hexagon Shank Wood Auger Drill Bits Set (SED-ADB-HS5)

Quantity:



Inquire Add to Basket

Customized:
Customized
Standard:
DIN
Length:
Jobber-length
Type:
Core Drill Bit
Material:
High Carbon Steel
Usage:
Wood Drilling
Model NO.:
SED-ADB-HS5
Set:
5PCS/Set
Shank:
Hexaon Shank
Feature:
Fully Body Heat Treatment
Package:
PVC Bag or Blister Card,Plastic Tube
Min Qty:
500sets
Transport Package:
Blister Box or as Per Request
Specification:
SGS
Trademark:
EASYDRILL
Origin:
China
HS Code:
820750900
Production Capacity:
20, 000set/Month
Customization:
Available | Customized Request

Product Description

Product Description

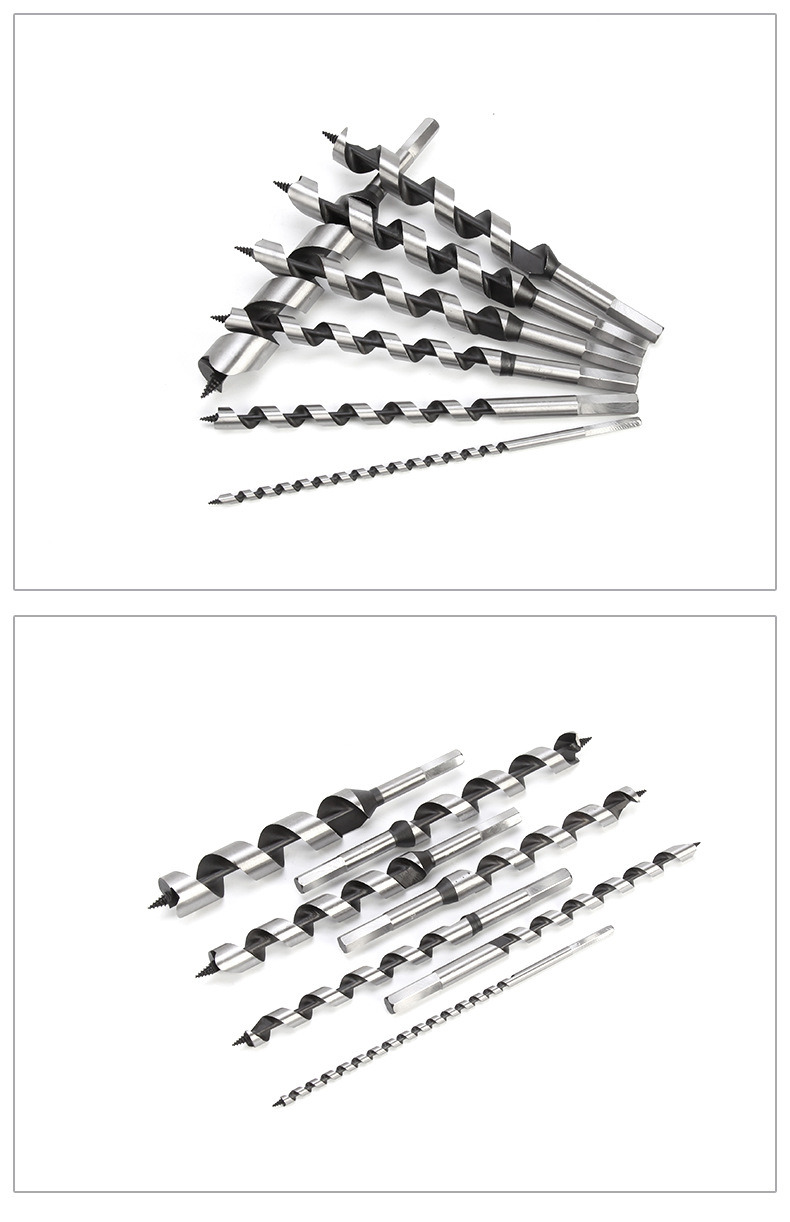

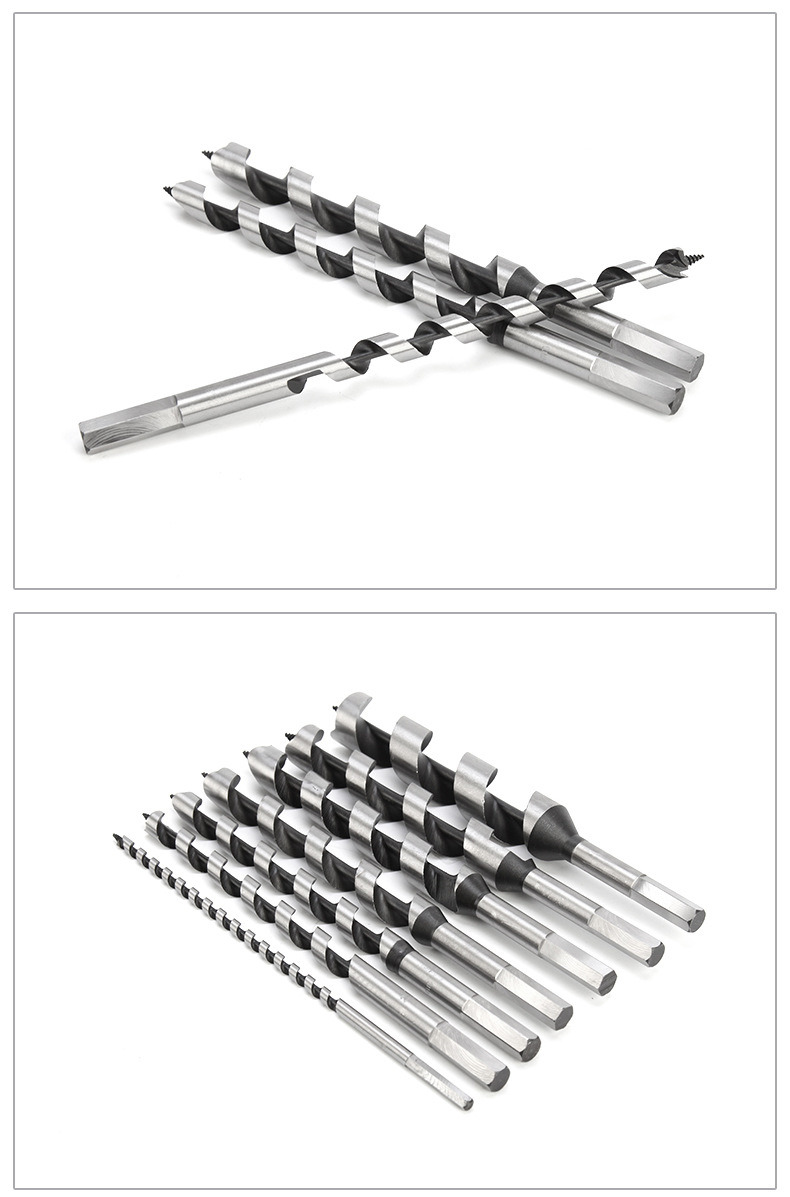

5PCS Hexagon shank Wood Auger Drill Bits Set

1.Diameter Size: 10mm,12mm,19mm,22mm,25mm.total length : 250mm.
2.. Precision ground, hardened high carbon steel hex shank auger bits.
3. Wide lands keep the bit straight as it bores through the hole. The flutes are ground behind
4. Single-spur cutting edge scribes the circumference of the hole for a smoother finish
Coarse screw point provides fast boring in hard and soft woods
5. Full-length heat treated bit guards against bending in heavy-duty applications and strengthens the twist where the greatest strain occurs
6. High carbon steel, Single or double flute.
7.Fine pitch spiral pulls auger into workpiece and single spur slices timber ahead of the cutting edge, producing accurate holes.

DIA.(mm)	Dia(INCH)	OVERALL LENGTH(mm)	O.A lENGTH(inch)
6	1/4"	230	9"
6	1/4"	460	18"
8	5/16"	230	9"
8	5/16"	250	10"
8	5/16"	460	18"
10	3/8"	230	9"
10	3/8"	250	10"
10	3/8"	460	18"
10	3/8"	500	20"
10	3/8"	600	24"
12	1/2"	230	9"
12	1/2"	250	10"
12	1/2"	460	18"
12	1/2"	500	20"
12	1/2"	600	24"
14	9/16"	230	9"
14	9/16"	250	10"
14	9/16"	460	18"
14	9/16"	500	20"
14	9/16"	600	24"
16	5/8"	230	9"
16	5/8"	250	10"
16	5/8"	460	18"
16	5/8"	500	20"
16	5/8"	600	18"
18	11/16"	230	9"
18	11/16"	250	10"
18	11/16"	460	18"
18	11/16"	500	20"
18	11/16"	600	24"
20	3/4"	230	9"
20	3/4"	250	10"
20	3/4"	460	18"
20	3/4"	500	20"
20	3/4"	600	24"
22	7/8"	230	9"
22	7/8"	250	10"
22	7/8"	460	18"
22	7/8"	500	20"
22	7/8"	600	24"
24	15/16"	230	9"
24	15/16"	250	10"
24	15/16"	460	18"
24	15/16"	500	20"
24	15/16"	600	24"
26	1"	230	9"
26	1"	250	10"
26	1"	460	18"
26	1"	500	20"
26	1"	600	24"
28	1-1/8"	230	9"
28	1-1/8"	250	10"
28	1-1/8"	460	18"
28	1-1/8"	500	20"
28	1-1/8"	600	24"
30	1-3/16"	230	9"
30	1-3/16"	250	10"
30	1-3/16"	460	18"
30	1-3/16"	500	20"
30	1-3/16"	600	24"
32	1-1/4"	230	9"
32	1-1/4"	250	10"
32	1-1/4"	460	18"
32	1-1/4"	500	20"
32	1-1/4"	600	24"
34	1-5/16"	230	9"
34	1-5/16"	250	10"
34	1-5/16"	460	18"
34	1-5/16"	500	20"
34	1-5/16"	600	24"
36	1-7/16"	230	9"
36	1-7/16"	250	10"
36	1-7/16"	460	18"
36	1-7/16"	500	20"
36	1-7/16"	600	24"
38	1-1/2"	230	9"
38	1-1/2"	250	10"
38	1-1/2"	460	18"
38	1-1/2"	500	20"
38	1-1/2"	600	24"
