3in1 Tungsten Carbide Tip Woodworking Row Drill Bits Hinge Boring Dowel Drill Bits (SED-RDB-CT)

Quantity:



Inquire Add to Basket

Customized:
Customized
Standard:
DIN
Length:
Jobber-length
Type:
Core Drill Bit
Material:
High Carbon Steel
Usage:
Wood Drilling
Model NO.:
SED-RDB-CT
Shank:
Round Shank
Dia Size:
3mm-60mm
Min Qty:
200PCS/Size
Overall Length:
70mm
Transport Package:
PVC Bag, Box etc
Specification:
SGS
Trademark:
EASYDRILL
Origin:
China
HS Code:
820750900
Production Capacity:
5, 000sets/Month
Customization:
Available | Customized Request

Product Description

Product Description

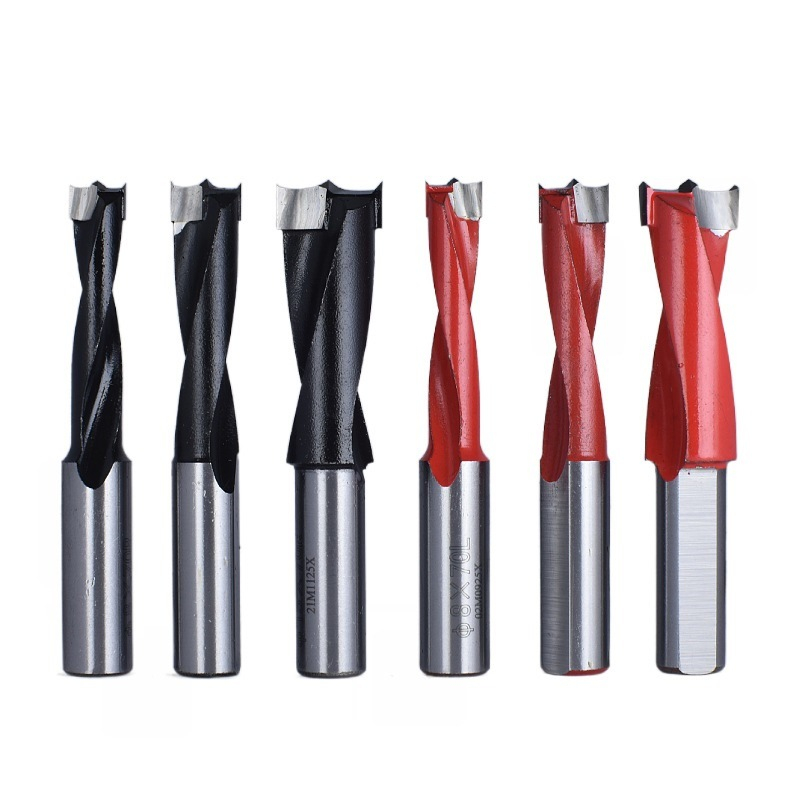

3in1 Tungsten Carbide Tip Woodworking Row Drill Bits Hinge Boring Dowel Drill Bits

CNC dowel drill bits:

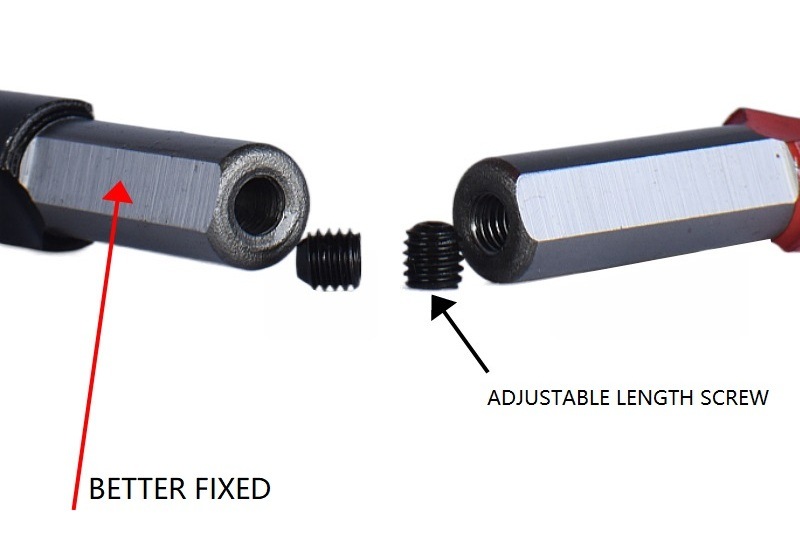

Advantage: Easy replacement, High precision,Long life
Machines: CNC machine centers,point-to-point drilling,hinge boring and multi-spindle unit machines etc.
Application: For drilling Through holes especially for cabinetry,no burs up and down laminated panels.

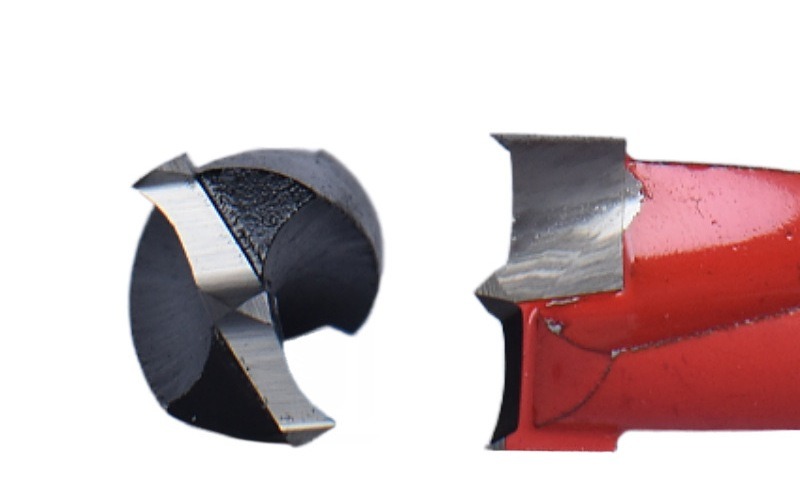

Technical information: solid cutter head with shear cut. High wear-resistant tungsten carbide quality for maxium life time.Lower fricition and feed forces for many application.

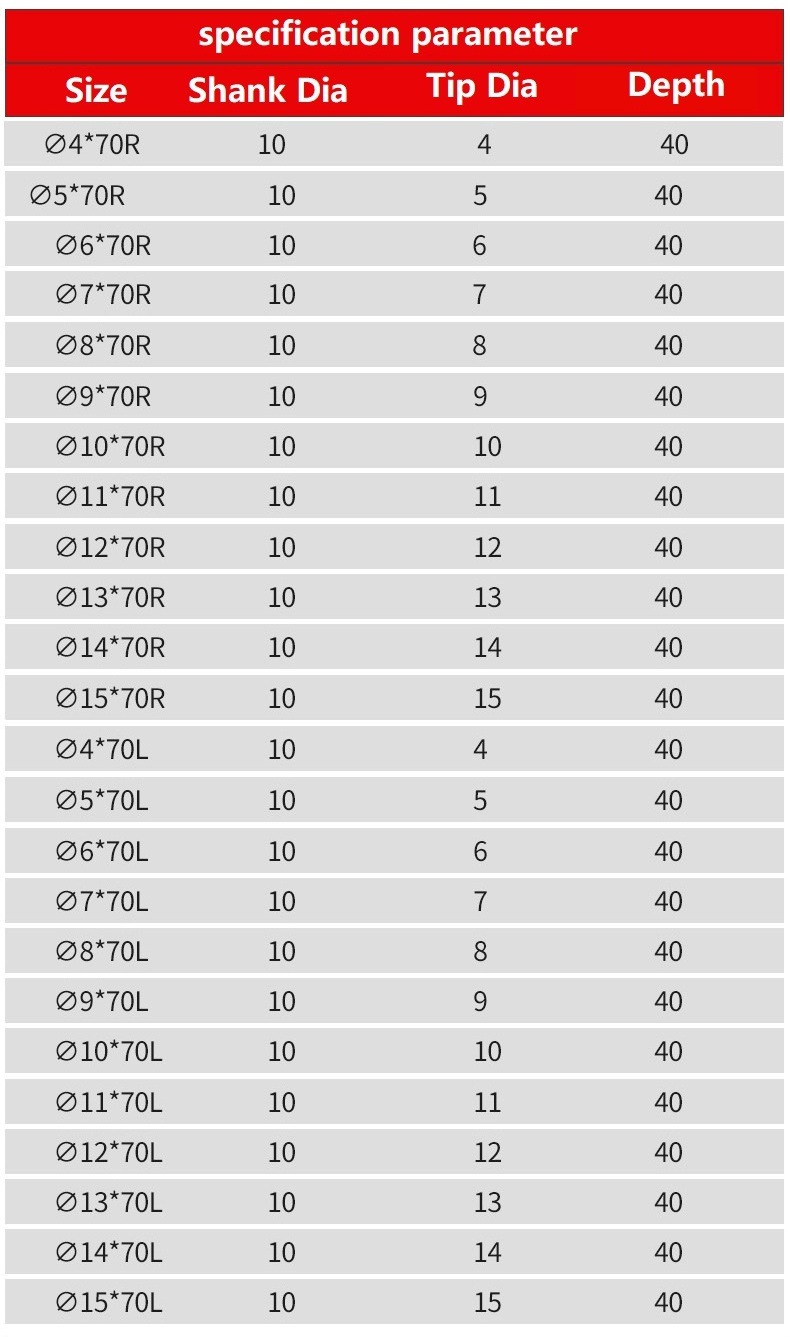

Insert tip		Integral tip
Diameter	Length	Diameter	Length
3-15mm(2 flutes)	57/70mm	3-16mm(three point)	57/70mm
15-60mm(4 flutes)	57/70mm	3-15mm(brad point)	57/70mm

Drill Drills Drill Bit

3in1 Tungsten Carbide Tip Woodworking Row Drill Bits Hinge Boring Dowel Drill Bits (SED-RDB-CT)
