Unika Tct Hole Saw for Stainless Steel (SED-THS-U)

Quantity:



Inquire Add to Basket

Customized:
Customized
Standard:
DIN
Type:
Core Drill Bit
Material:
Tungsten Carbide
Usage:
Metal Drilling
Application:
Drilling Stainless Steel
Model NO.:
SED-THS-U
Thickness Depth:
15mm
Diameter:
15mm-200mm
Package:
Box
Min Qty:
100PCS
Transport Package:
Blister Card, Hanging Card, Set Case
Specification:
SGS
Trademark:
EASYDRILL
Origin:
China
HS Code:
820750900
Production Capacity:
30, 000PCS/Month
Customization:
Available | Customized Request

Product Description

Product Description

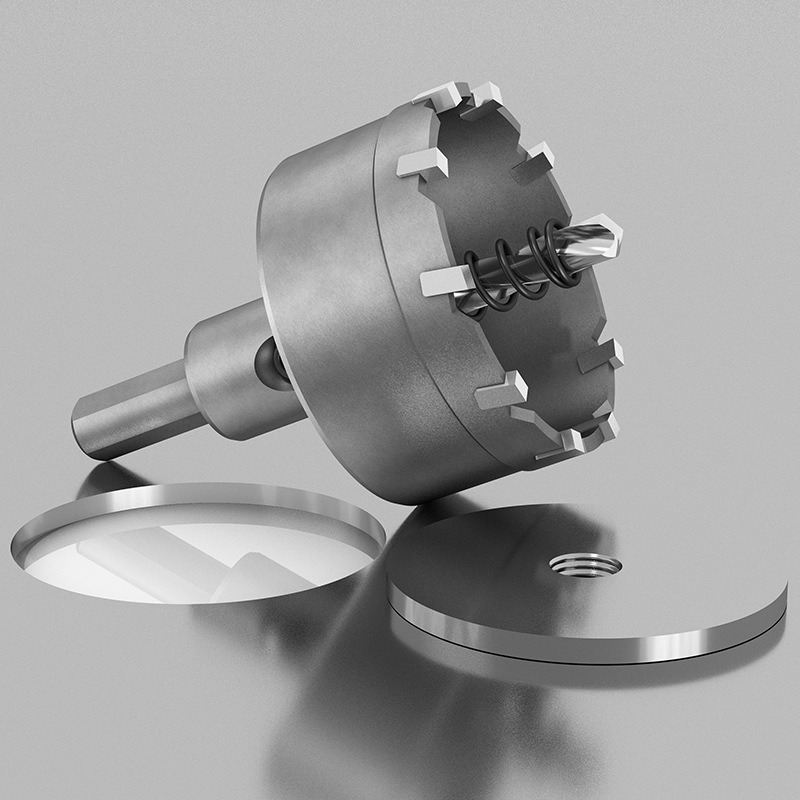

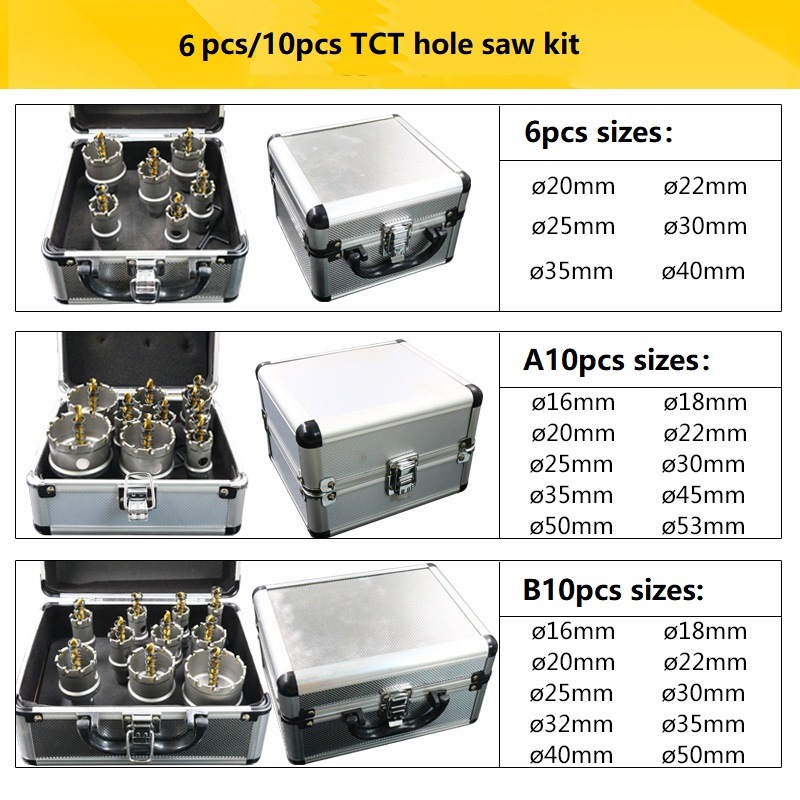

Unika TCT Hole Saw for Stainless Steel

1.material: carbide alloy.Tungsten carbide tipped teeth provide super product life and cutting performance and High cutting accuracy.

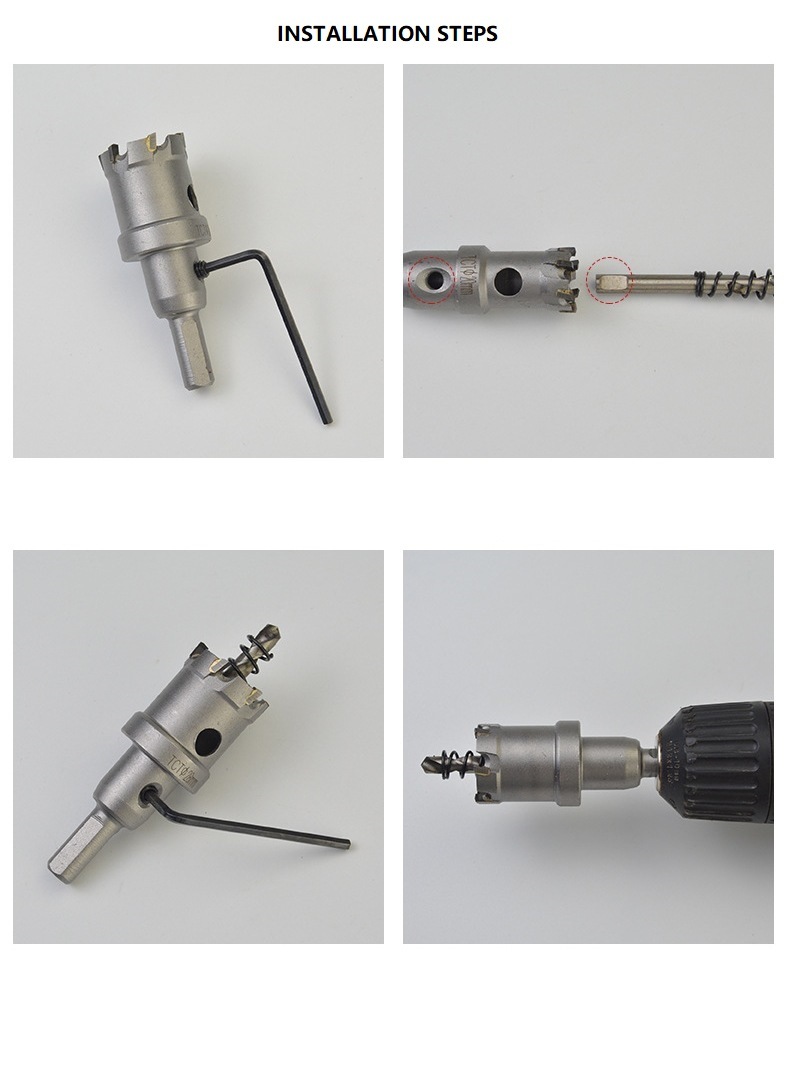

2.Complete assembly - no requirement for separate arbor and pilot drill.
3.application for drilling holes on cast iron,aluminium alloy,carbon steel within 5mm thickness.Especially designed for drilling on stainless steel pipe & tube and other wares or sheet with rough surface, the effective cutting length is 12mm. Maximum cutting capacity: 5mm thickness stainless steel sheet.
4..edge is formed in one piece by the fullly automatic digital control grinder.3-ply cutters reduces tip crack even with hard use,amd the edge of knife adopts super quality alloy material,which is applied to drilling in cold/hard metal or stainless steel plate;
5.having high precision, no burrs around hole.
6.working life is about 3times than normal items.
7.The 25mm effective length enables this hole-saw to drill thick steel plate as well as curved face material like thick-wall metal pipes etc.
8.Can be applied to drilling in cold/hard metal or stainless steel plate; the effective cutting length is 22mm.

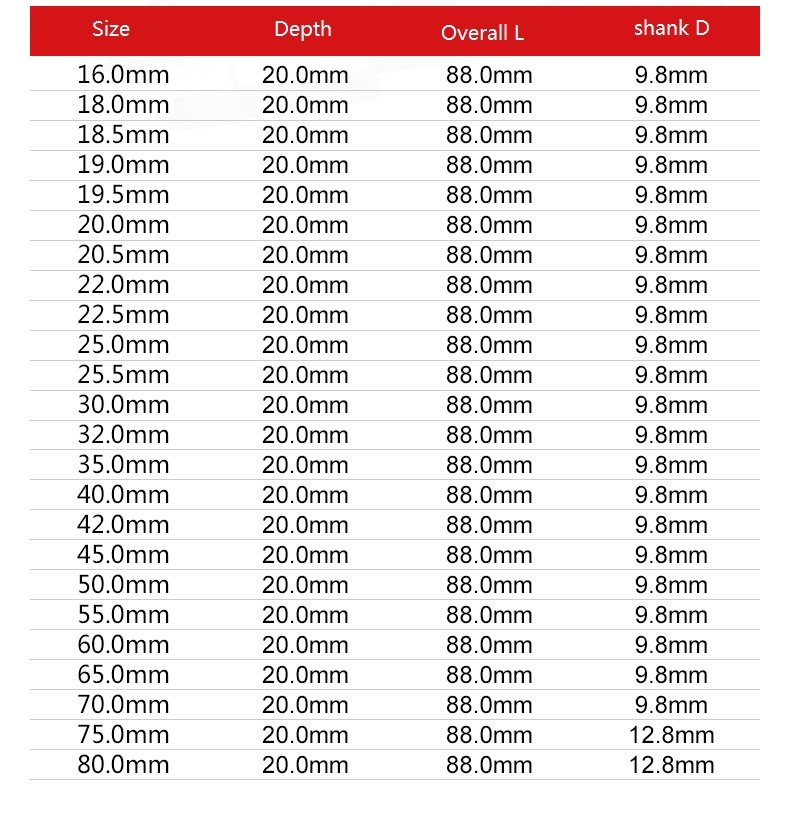

9.partial specification :

Diameter(mm)	Diameter(Inch)	Diameter(mm)	Diameter(Inch)
15	19/32"	35	1-3/8"
16	5/8"	36	1-13/32"
17	11/16"	37	1-7/16"
18	23/32"	38	1-1/2"
19	3/4"	39	1-17/32"
20	25/32"	40	1-9/16"
21	13/16"	45	1-25/32"
22	7/8"	50	1-31/32"
23	29/32"	51	2"
24	15/16"	55	2-5/32"
25	1"	60	2-3/8"
26	1-1/32"	65	2-9/16"
27	1-1/16"	70	2-3/4"
28	1-3/32"	75	2-15/16"
29	1-1/8"	80	2-5/32"
30	1-3/16"	85	3-11/32"
31	1-7/32"	90	3-17/32"
32	1-1/4"	95	3-3/4"
33	1-5/16"	100	3-15/16"
34	1-11/32"

Hole saw Saw Cutter
