Long Type Tct Hole Saw for Concrete, Wall (SED-THS-LCW)

Quantity:
  • Customized

  • Core Drill Bit

  • Tungsten Carbide

  • Metal Drilling

  • Drilling Stainless Steel

  • 15mm

  • SED-THS-LCW

  • 15mm-150mm

  • Box,Carton

  • 100PCS

  • Blister Card, Hanging Card, Set Case

  • SGS, ISO9001

  • JOYLIGHT

  • China

  • 820750900

  • 30, 000PCS/Month

  • Available | Customized Request

Product Description

Long Type TCT Hole Saw for concrete,wall

1.material: carbide alloy.Tungsten carbide tipped teeth provide super product life and cutting performance and High cutting accuracy.

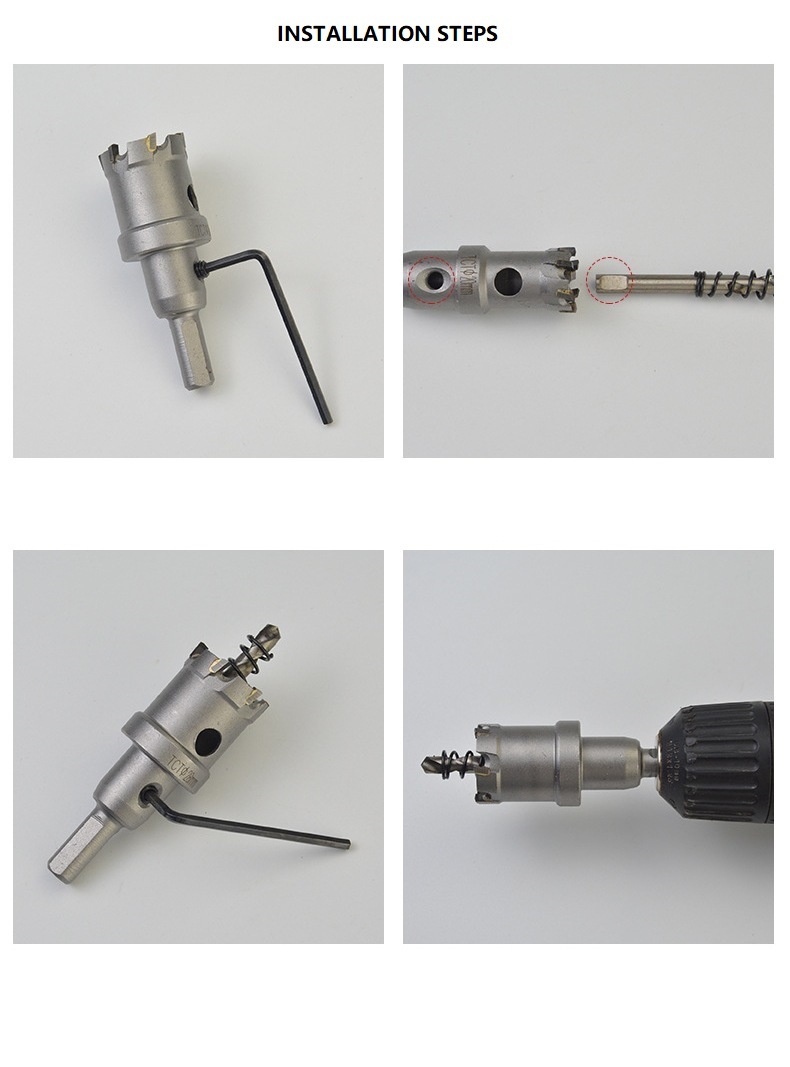

2.Complete assembly - no requirement for separate arbor and pilot drill.
3.application for drilling holes on cast iron,aluminium alloy,carbon steel within 5 thickness.Especially designed for drilling on stainless steel pipe & tube and other wares or sheet with rough surface, the effective cutting length is 15mm. Maximum cutting capacity: 10mm thickness stainless steel sheet.
4..edge is formed in one piece by the fullly automatic digital control grinder.3-ply cutters reduces tip crack even with hard use,amd the edge of knife adopts super quality alloy material,which is applied to drilling in cold/hard metal or stainless steel plate;
5.having high precision, no burrs around hole.
6.working life is about 3times than normal items.
7.The 25mm effective length enables this hole-saw to drill thick steel plate as well as curved face material like thick-wall metal pipes etc.
8.Can be applied to drilling in cold/hard metal or stainless steel plate; the effective cutting length is 22mm.

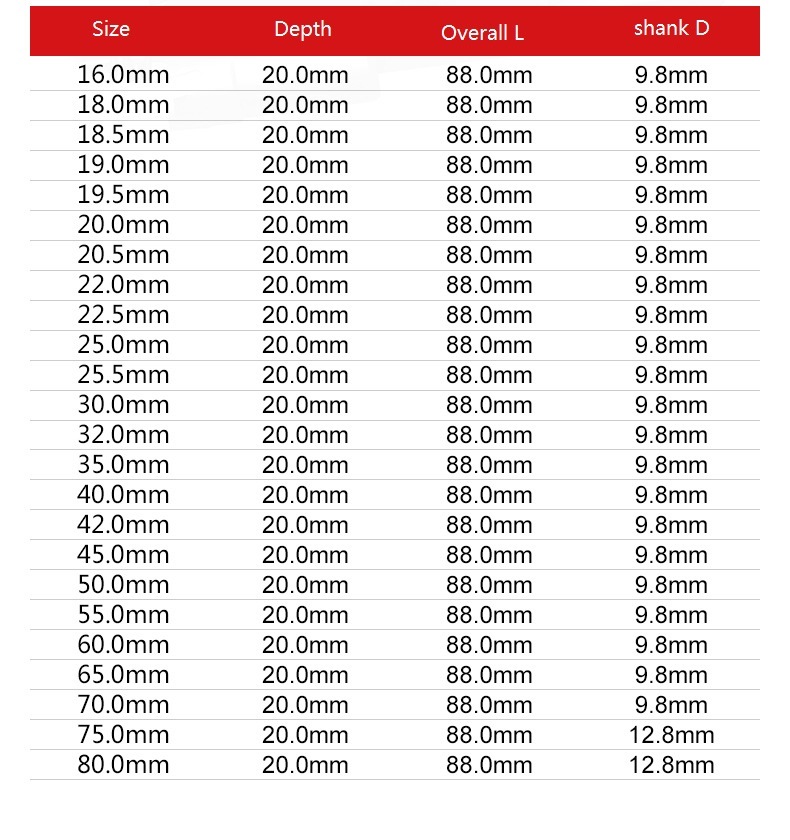

9.partial specification :
Diameter(mm) Diameter(Inch) Diameter(mm) Diameter(Inch)
15 19/32" 35 1-3/8"
16 5/8" 36 1-13/32"
17 11/16" 37 1-7/16"
18 23/32" 38 1-1/2"
19 3/4" 39 1-17/32"
20 25/32" 40 1-9/16"
21 13/16" 45 1-25/32"
22 7/8" 50 1-31/32"
23 29/32" 51 2"
24 15/16" 55 2-5/32"
25 1" 60 2-3/8"
26 1-1/32" 65 2-9/16"
27 1-1/16" 70 2-3/4"
28 1-3/32" 75 2-15/16"
29 1-1/8" 80 2-5/32"
30 1-3/16" 85 3-11/32"
31 1-7/32" 90 3-17/32"
32 1-1/4" 95 3-3/4"
33 1-5/16" 100 3-15/16"
34 1-11/32"
