Diamond
Normal Abrasive
Edge Shape
Surface Grinding Wheel
Sinter
Surface Grinding

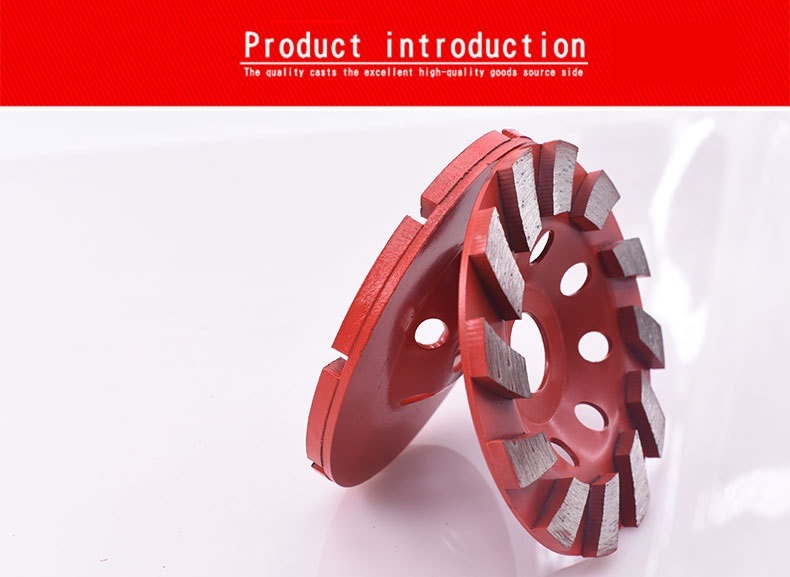

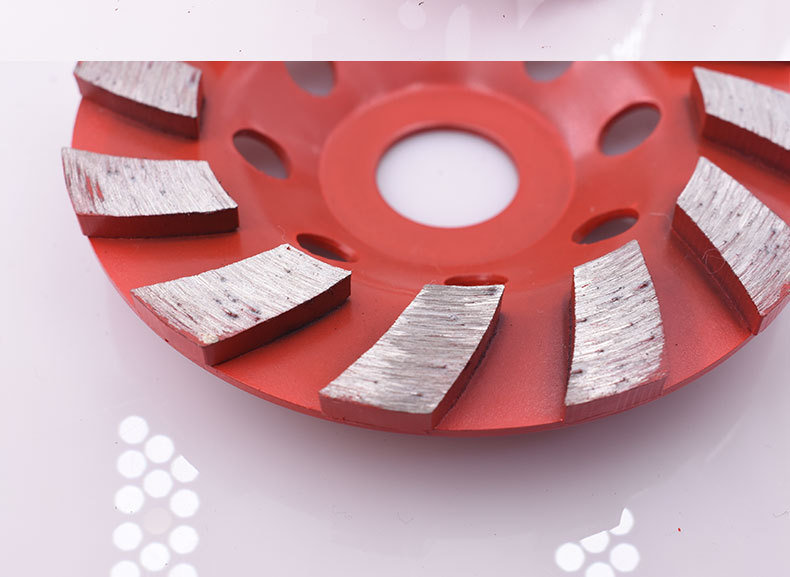

SED-GW-TWM10
D100mm

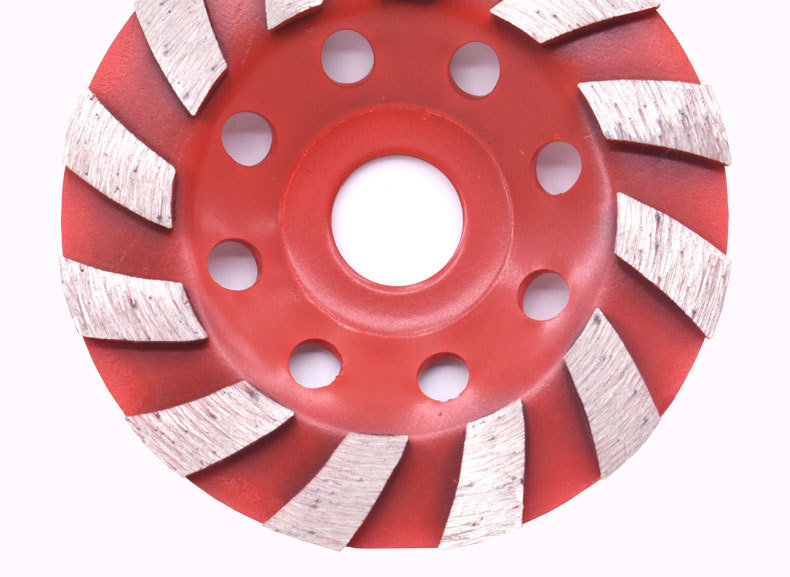

Turbo Wave
100PCS/Size
Easydrill
Color Box, Carton
ISO9001, SGS
EASYDRILL
China
820790100
20, 000PCS/Month
Available | Customized Request
Product Description
| Application | Diameter | Segment Height (mm) | Segment | Segment No. | Arbor |
| Thickness(mm) | (mm) | ||||
| Single row diamond grinding wheel | 105mm(4") | 5 | 7 | 8 | M14,5/8"-11,22.23 |
| 115mm(4.5") | 5 | 7 | 9 | M14,5/8"-11,22.23 | |
| 125mm(5") | 5 | 7 | 10 | M14,5/8"-11,22.23 | |
| 150mm(6") | 5 | 7 | 12 | M14,5/8"-11,22.23 | |
| 180mm(7") | 5 | 7 | 14 | M14,5/8"-11,22.23 | |
| Application | Diameter | Segment Height (mm) | Segment | Segment No. | Arbor |
| Thickness(mm) | (mm) | ||||

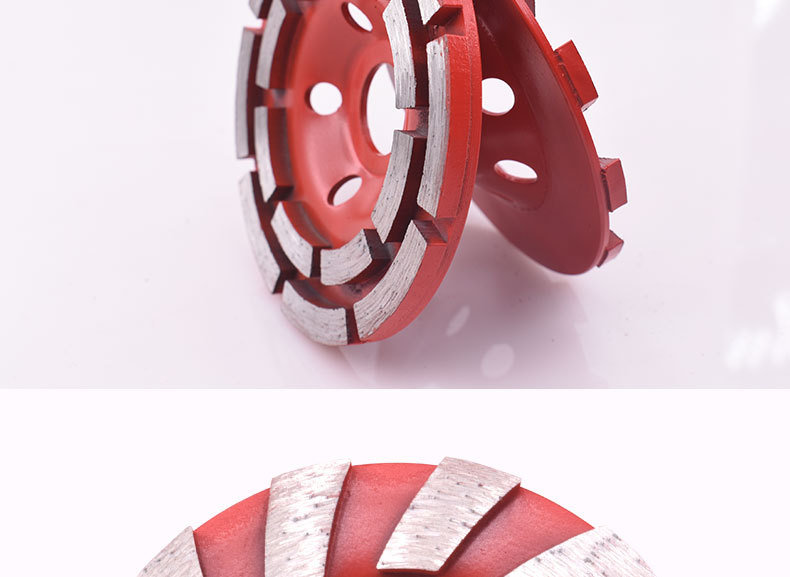

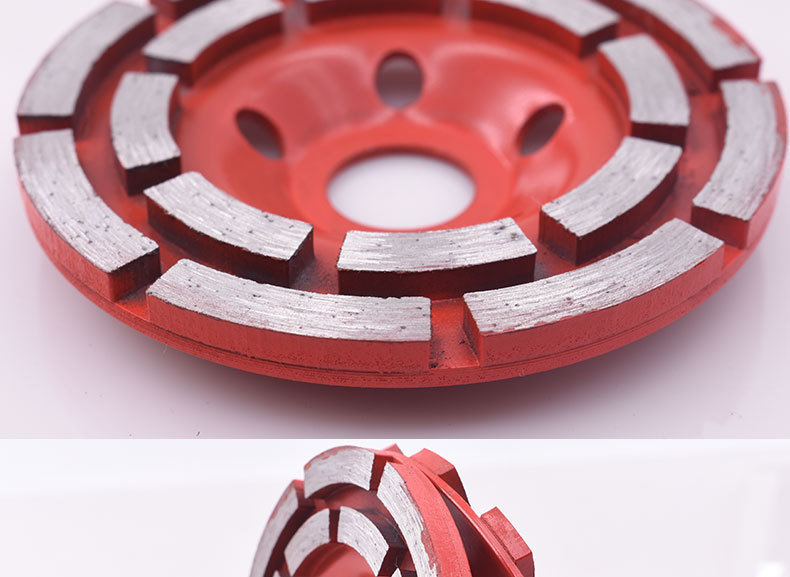

| Double row diamond grinding wheel | 105mm(4") | 5 | 7 | 16 | M14,5/8"-11,22.23 |
| 115mm(4.5") | 5 | 7 | 18 | M14,5/8"-11,22.23 | |
| 125mm(5") | 5 | 7 | 20 | M14,5/8"-11,22.23 | |
| 150mm(6") | 5 | 7 | 24 | M14,5/8"-11,22.23 | |
| 180mm(7") | 5 | 7 | 28 | M14,5/8"-11,22.23 | |
| Application | Diameter | Segment Height (mm) | Segment | Segment No. | Arbor |
| Width(mm) | (mm) | ||||
| Turbo diamond grinding wheel | 105mm(4") | 5 | 20 | Turbo | M14,5/8"-11,22.23 |
| 125mm(5") | 5 | 20 | Turbo | M14,5/8"-11,22.23 |
