Turbo Wave Cup Wheels Diamond Cup Grinding Wheel for Masonry with Arrow Segments (SED-GW-TA)

Quantity:
Inquire Add to Basket

  • Diamond

  • Normal Abrasive

  • Edge Shape

  • Surface Grinding Wheel

  • Sinter

  • Surface Grinding

  • SED-GW-TA

  • D100mm

  • Turbo Wave

  • 100PCS/Size

  • Easydrill

  • Color Box, Carton

  • ISO9001, SGS

  • EASYDRILL

  • China

  • 820790100

  • 20, 000PCS/Month

  • Available | Customized Request

Product Description

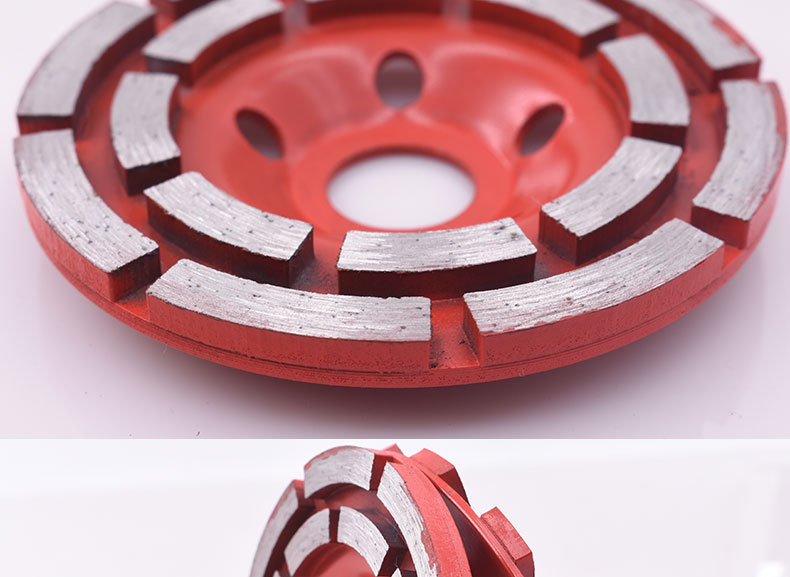

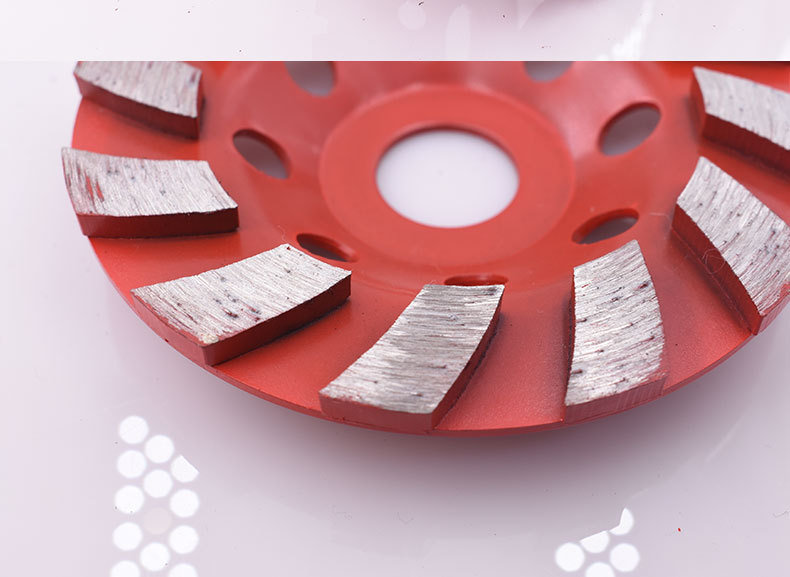

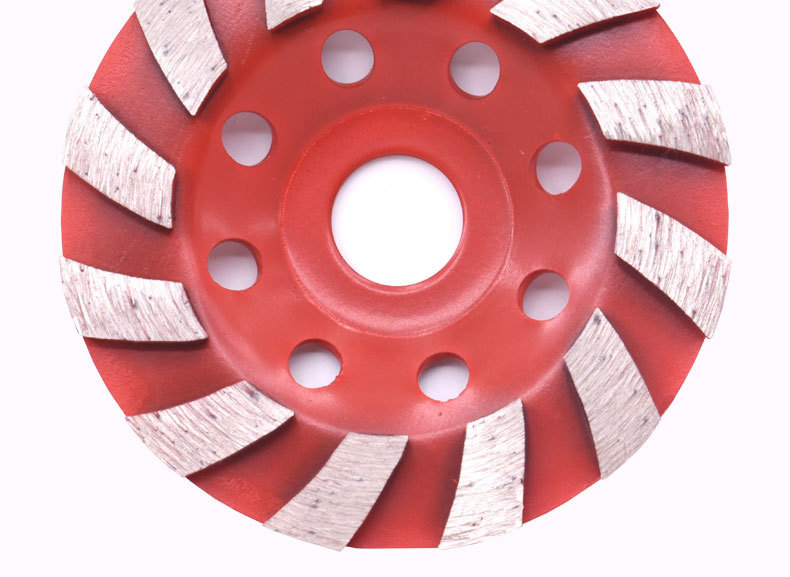

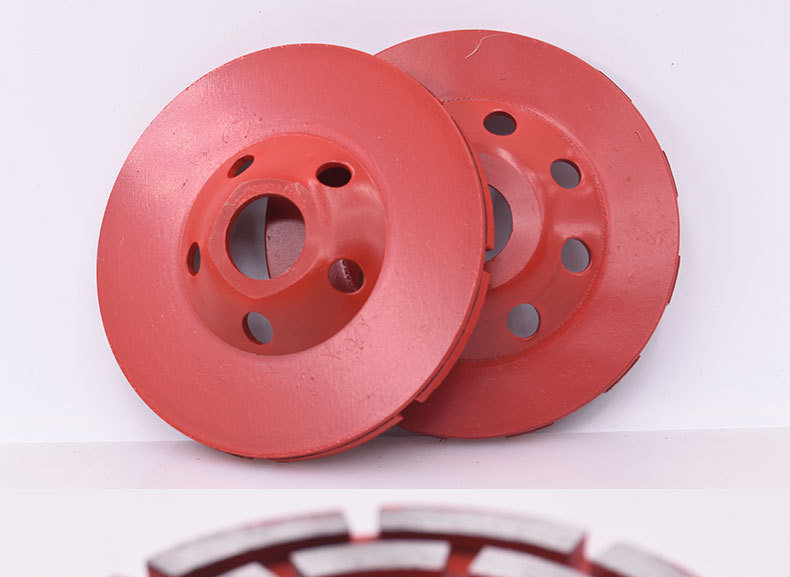

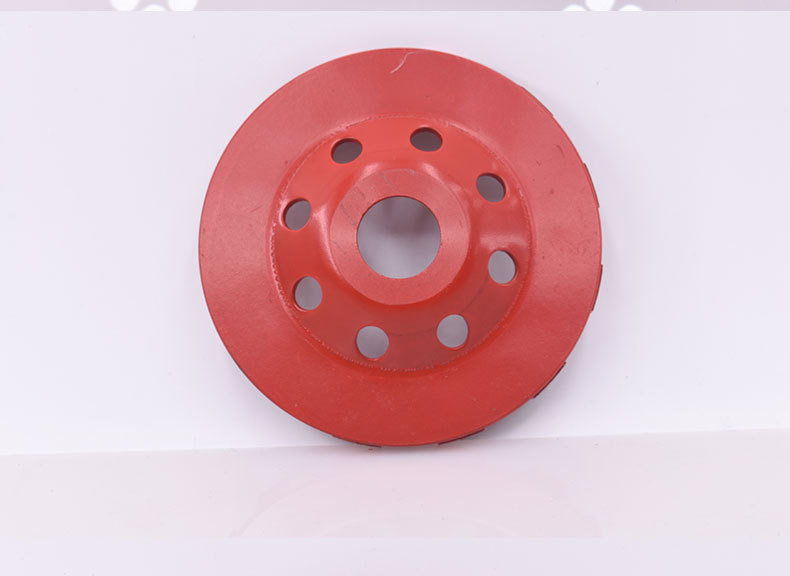

Turbo wave cup wheels Diamond cup Grinding Wheel for Masonry with arrow segments

1. Working with sharp and smooth, wet or dry
2. Application: Used for grinding mable, granite and other special-sharped stone of the corner.
3. Fast and long life time for grinding.
Size: 100*16*10mm. Or upon request.
Application Diameter Segment Height (mm) Segment Segment No. Arbor
Thickness(mm) (mm)
Single row diamond grinding wheel 105mm(4") 5 7 8 M14,5/8"-11,22.23
115mm(4.5") 5 7 9 M14,5/8"-11,22.23
125mm(5") 5 7 10 M14,5/8"-11,22.23
150mm(6") 5 7 12 M14,5/8"-11,22.23
180mm(7") 5 7 14 M14,5/8"-11,22.23
Application Diameter Segment Height (mm) Segment Segment No. Arbor
Thickness(mm) (mm)
Double row diamond grinding wheel 105mm(4") 5 7 16 M14,5/8"-11,22.23
115mm(4.5") 5 7 18 M14,5/8"-11,22.23
125mm(5") 5 7 20 M14,5/8"-11,22.23
150mm(6") 5 7 24 M14,5/8"-11,22.23
180mm(7") 5 7 28 M14,5/8"-11,22.23
Application Diameter Segment Height (mm) Segment Segment No. Arbor
Width(mm) (mm)
Turbo diamond grinding wheel 105mm(4") 5 20 Turbo M14,5/8"-11,22.23
125mm(5") 5 20 Turbo M14,5/8"-11,22.23
