Non-Standard
Uncoated
H7
Straight
Straight Shank
Machine Reamer
SED-CR-S4F
Tungsten Steel
4 Flutes
50-200mm
Plastic Box or as Per Request
10PCS/Size
4.0-20.0mm
Plastic Box
1mm-20mm
EASYDRILL
China
10000PCS/Month
US$ 20/Piece 1 Piece(Min.Order) | Request Sample
Product Description

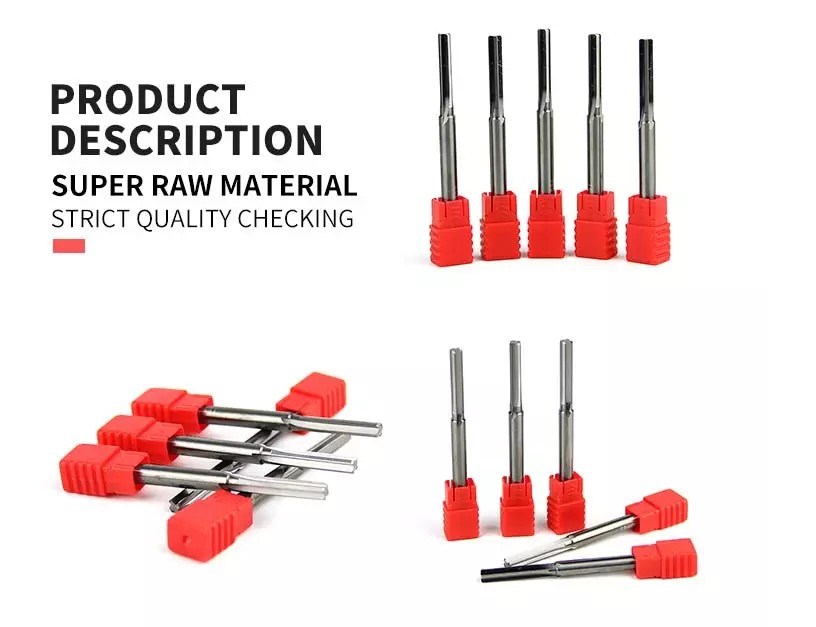

tungsten solid carbide straight 4 flutes reamer
Material:Tungsten Carbide,Solid Carbide, 100% New Material
Single package size: 3X5X6 cm
Single gross weight: 0.3 kg
Coating: AlTiN, TiAIN, TiCN, TiN,Black
delivery time:
1-100pcs, 7-10days
over 100pcs: 15-20days
application:Carbide steel, Alloy steel,Tool steel.
Packing Detail:
1. One piece in a plastic, 10 pieces per group.
2. Use the air bubble paper to encase the plastic pipe.
3. Put the goods with air bubble paper in the carton.
4.Other packing will be accept according to your needs.
Product Name | reamer |
| Meterial | Tungsten Carbide |
| Surface | Sand Blasting / Galvanized / Nickeling / Chroming |
| Brand Name | EASYDRILL |
| Overall length (mm) | 49-254 |
| Shank diameter (mm) | 2.0-16.0 |
| Cutting length (mm) | 11-60 |
| Cutting area diameter (mm) | 2.0-20.0 |
| Precision | ± 0.01mm |
| Service | Can be customized according to drawings |
| HRC | APPLICATION |
| 45°end mill for aluminium | Aluminum alloy, Copper alloy, Resin treatment |
| 45°Carbide end mill | Carbide steel, Alloy steel, Tool steel |
| 50°Carbide end mill | Carbide steel, Alloy steel, Tool steel, Hardened & tempered steel |
| 55°Aluminum end mill | Aluminum alloy,Copper alloy, Resin treatment |
| 55°Carbide end mill | Carbide steel, Alloy steel,tool steel,Hardened & tempered steel, HRC ≈52 hardened steel |
| 58°Carbide end mill | Hardened & tempered steel, HRC≈52 to 55 hardened steel |
| 60°Stainless steel end mill | Stainless steel, Ti alloy, |
| 60°Carbide end mill | Hardened & tempered steel, HRC≈52 to 55 hardened steel,HRC58 to 65 hardened steel, stainless steel, Ti alloy |
| 65°Carbide end mill | HRC≈52 to 55 hardened steel,HRC58 to 65 hardened steel |
