Tungsten Carbide 6 Flutes Spiral Flute Reamer (SED-CR-S6F)

Quantity:



Inquire Add to Basket

Standard:
Non-Standard
Coating:
Uncoated
Precision:
H7
Alveolus Dentalis:
Spiral
Handle Type:
Straight Shank
Usage Mode:
Machine Reamer
Model NO.:
SED-CR-S6F
Material:
Cemented Carbide
Type:
Cylindrical Reamer
Shank:
Straight Shank
Flute:
Spiral Flute
Min Qty:
50PCS
Transport Package:
Plastic Tube
Specification:
1mm-20mm
Trademark:
EASYDRILL
Origin:
China
HS Code:
820770900
Production Capacity:
50000PCS/Month
Samples:
US$ 10/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Product Description

Tungsten carbide 6 flutes reamer

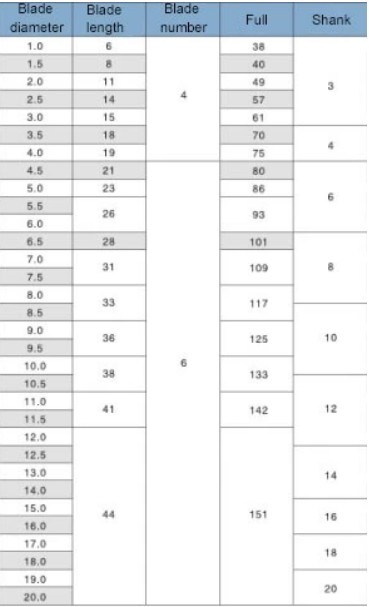

Model Number: Standard Size
Diameter: 1-20mm Overall Length: 50-150mm
Material: Carbide
Type: End Mill
Coating: AlTiN
Application: Hight speed cutting,stainless steel,alloy steel,die steel~HRC58 steel
Controlling Mode: CNC Tooling System
Suitable for: Cooper.Cast Iron.Carbon Steel.Mould Steel
HRC: 45/55/60/65
Precision: High Precision
Usage: General High Speed Cutting
Processing Type: Metal
TRANSPORT: Sea/Express/Air
Machine Type: Milling Maching

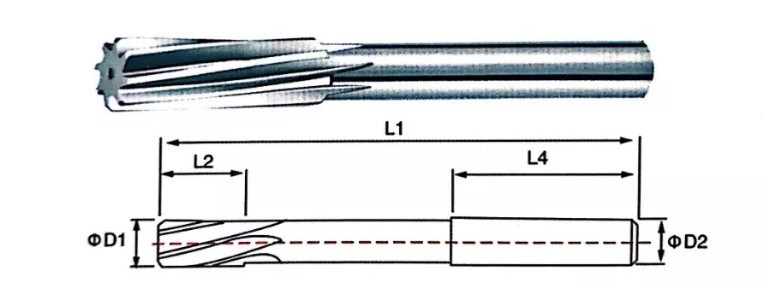

Tungsten Carbide 6 Flutes Spiral Flute Reamer (SED-CR-S6F)

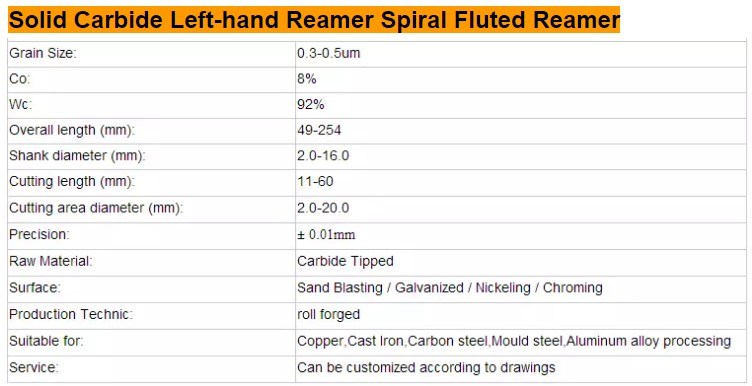

Raw material:

HRC45	HRC55	HRC60	HRC65
YG10X	YG10.2&WF25(TaiWan)	K44&K40(Germany)	H10F(Sweden)
Grain Size:0.7um	Grain Size:0.6um	Grain Size:0.5um	Grain Size:0.5um
Co:10%	Co:10%	Co:12%	Co:10%
Flexural strength:3320N/mm2	Flexural strength:4000N/mm2	Flexural strength:4300N/mm2	Flexural strength:4300N/mm2

Item	AlTiN	TiAIN	TiSiN	nACo
Hardness(HV)	3200	2800	3600	42(GPA)
Thickness(UM)	2.5-3	2.5-3	3	3
Oxidation temp(°)	900	800	1000	1200
Friction coeffient	0.3	0.3	0.45	0.4
Color	Black	Violet	Copper	Blue

Reamer Reamers Carbide Reamer
