HRC60 2/3/4 Flutes Solid Carbide Milling Cutter Ball End Mill for Alloy Steel

Quantity:
  • Coating

  • Spiral Tooth

  • Sparse Tooth

  • Indexable Type

  • Tungsten Steel

  • Side Milling Cutter

  • 2 or 4 ,5

  • 50-150mm

  • Plastic Box or as Per Request

  • 10PCS/Size

  • Plastic Box

  • 1mm-25mm

  • EASYDRILL

  • China

  • 20000PCS/Month

  • Available | Customized Request

Product Description

HRC60 4 flutes tungsten carbide square end mills for stainless steel

Grain Size: 0.3-0.5um
Co: 10%, Wc: 90%
TRS: 3800-4900N/mm2
HRC: 45/55/60/65
HRA: 91.8-93.6
Diameter:R0.5-R20mm,Customized
Coating: Customized

Wide Application:

Suitable for Copper, Cast Iron,Carbon steel,Heat-treated steel, Mould steel, Aluminum processing,etc.

Tools are widely used in many field, such as mould development, electron and medical instrument, horologe, aerospace,etc.

HRC50 suitable for Common Steel, Cast Iron;

HRC55 suitable for unhardened stainless steel;

HRC60 suitable for pre-hardened steel;

HRC65 suitable for hardened steel, finish machining.

Super raw material

1. We accept Mix coated in the same model number, Also one batch with different coating and types.

2. AlTiN,TiAlN,TiSiN,TiN,DLC,NANO for you to choose to win your competitors!
Packing Detail:

1. One piece in a plastic, 10 pieces per group.
2. Use the air bubble paper to encase the plastic pipe.
3. Put the goods with air bubble paper in the carton.
4.Other packing will be accept according to your needs.

Delivery Detail:

delivered in 5-20 days after payment.

Ball nose end mill specification
Flute dia flute length overall length shank dia
R0.25 1.5 50 Φ4
R0.5 2 50 Φ4
R0.75 3 50 Φ4
R1 4 50 Φ4
R1.25 5 50 Φ4
R1.5 6 50 Φ3
R2 8 50 Φ4
R2.5 10 50 Φ5
R3 12 50 Φ6
R4 16 60 Φ8
R5 20 75 Φ10
R6 24 75 Φ12
R7 28 100 Φ14
R8 32 100 Φ16
R10 40 100 Φ20
R1 4 100 Φ4
R1.5 6 100 Φ4
R2 8 100 Φ4
R2.5 10 100 Φ6
R3 12 100 Φ6
R4 16 100 Φ8
R5 20 100 Φ10
R6 24 100 Φ12
R8 32 100 Φ16
R3 12 150 Φ6
R4 16 150 Φ8
R5 20 150 Φ10
R6 24 150 Φ12
R8 32 150 Φ16
coating process parameters
Item AITin TiAIN TiSiN nACo
Hardness(HV) 3200 2800 3600 42(GPA)
(Thickness(UM) 2.53 2.53 3 3
Oxidation 900 800 1000 1200
Friction 0.3 0.3 0.45 0.4
Color Black Violet Copper Blue

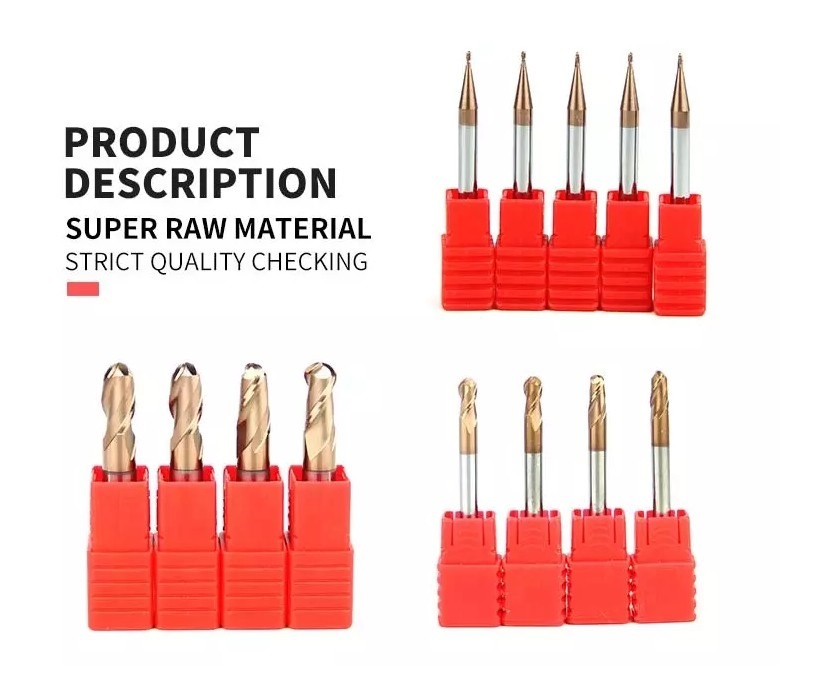

HRC60 2/3/4 Flutes Solid Carbide Milling Cutter Ball End Mill for Alloy Steel

HRC60 2/3/4 Flutes Solid Carbide Milling Cutter Ball End Mill for Alloy Steel
HRC60 2/3/4 Flutes Solid Carbide Milling Cutter Ball End Mill for Alloy Steel
HRC60 2/3/4 Flutes Solid Carbide Milling Cutter Ball End Mill for Alloy Steel
HRC60 2/3/4 Flutes Solid Carbide Milling Cutter Ball End Mill for Alloy Steel
