| Quantity: | |
|---|---|
Coating
Spiral Tooth
Sparse Tooth
Indexable Type
Tungsten Steel
Vertical Milling Cutter
SED-MC-BNA
4 Flutes
50-200mm
Plastic Box or as Per Request
10PCS/Size
0.2-25.0mm
Plastic Box
0.2mm-25mm
EASYDRILL
China
10000PCS/Month
US$ 2.0/Piece 1 Piece(Min.Order) | Request Sample
Product Description

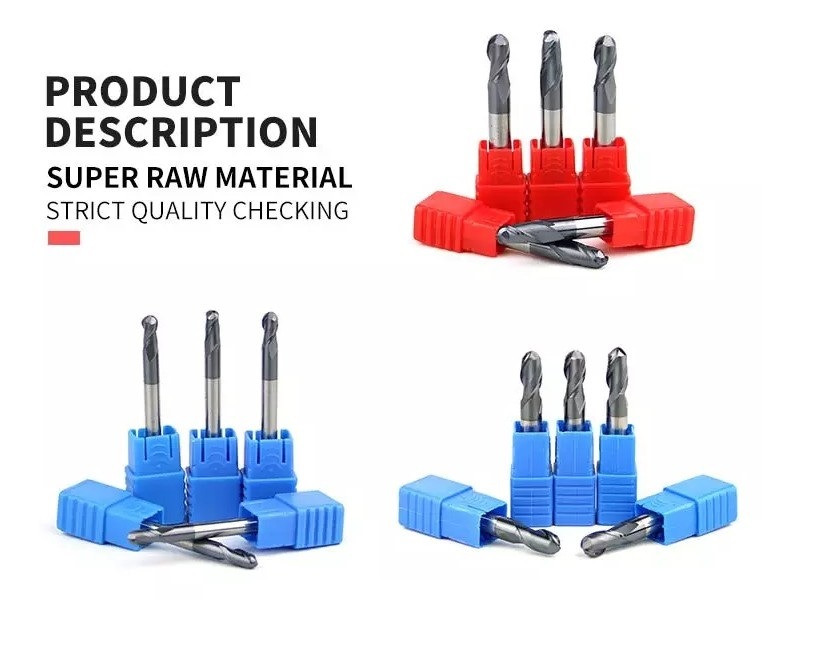

Tungsten Carbide ball nose end mill tungsten steel milling cutter end mills for aluminium
Material:Tungsten Carbide,Solid Carbide, 100% New Material
Single package size: 3X5Xcm
Single gross weight: 0.3 kg
Coating: AlTiN, TiAIN, TiCN, TiN,Black
delivery time:
10-50pcs,5-7days
50-100pcs, 7-10days
over 100pcs: 15-20days
application:Carbide steel, Alloy steel,Tool steel.
Packing Detail:
1. One piece in a plastic, 10 pieces per group.
2. Use the air bubble paper to encase the plastic pipe.
3. Put the goods with air bubble paper in the carton.
4.Other packing will be accept according to your needs.
| Specification | Flute Dia(φ) | Flute Length (C) | Shank Dia(D) | Overall Length(L) |
| Φ1x3Cx4Dx50L | 1 | 3 | 4 | 50 |
| Φ1.5x4Cx4Dx50L | 1.5 | 4 | 4 | 50 |
| Φ2x6Cx4Dx50L | 2 | 6 | 4 | 50 |
| Φ2.5x8Cx4Dx50L | 2.5 | 8 | 4 | 50 |
| Φ3x8Cx4Dx50L | 3 | 8 | 4 | 50 |
| Φ3.5x10Cx4Dx50L | 3.5 | 10 | 4 | 50 |
| Φ4x10Cx4Dx50L | 4 | 10 | 4 | 50 |
| Φ5x13Cx6Dx50L | 5 | 13 | 6 | 50 |
| Φ6x15Cx6Dx50L | 6 | 15 | 6 | 50 |
| Φ8x20Cx8Dx60L | 8 | 20 | 8 | 60 |
| Φ4x20Cx4Dx75L | 4 | 20 | 4 | 75 |
| Φ5x20Cx6Dx75L | 5 | 20 | 6 | 75 |
| Φ6x20Cx6Dx75L | 6 | 20 | 6 | 75 |
| Φ8x25Cx8Dx75L | 8 | 25 | 8 | 75 |
| Φ10x25Cx10Dx75L | 10 | 25 | 10 | 75 |
| Φ12x30Cx12Dx75L | 12 | 30 | 12 | 75 |
| Φ4x25Cx4Dx100L | 4 | 25 | 4 | 100 |
| Φ5x25Cx6Dx100L | 5 | 25 | 6 | 100 |
| Φ6x30Cx6Dx100L | 6 | 30 | 6 | 100 |
| Φ8x35Cx8Dx100L | 8 | 35 | 8 | 100 |
| Φ10x40Cx10Dx100L | 10 | 40 | 10 | 100 |
| Φ12x45Cx12Dx100L | 12 | 45 | 12 | 100 |
| Φ14x40Cx14Dx100L | 14 | 40 | 14 | 100 |
| Φ16x40Cx16Dx100L | 16 | 40 | 16 | 100 |
| Φ18x40Cx18Dx100L | 18 | 40 | 18 | 100 |
| Φ20x45Cx20Dx100L | 20 | 45 | 20 | 100 |

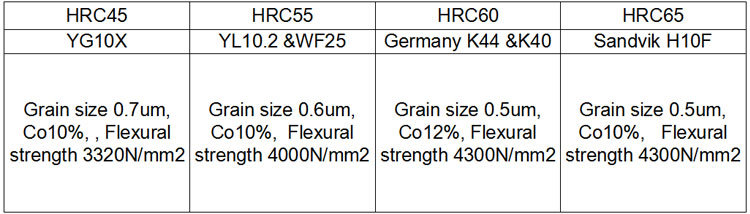

| HRC | APPLICATION |
| 45°end mill for aluminium | Aluminum alloy, Copper alloy, Resin treatment |
| 45°Carbide end mill | Carbide steel, Alloy steel, Tool steel |
| 50°Carbide end mill | Carbide steel, Alloy steel, Tool steel, Hardened & tempered steel |
| 55°Aluminum end mill | Aluminum alloy,Copper alloy, Resin treatment |
| 55°Carbide end mill | Carbide steel, Alloy steel,tool steel,Hardened & tempered steel, HRC ≈52 hardened steel |
| 58°Carbide end mill | Hardened & tempered steel, HRC≈52 to 55 hardened steel |
| 60°Stainless steel end mill | Stainless steel, Ti alloy, |
| 60°Carbide end mill | Hardened & tempered steel, HRC≈52 to 55 hardened steel,HRC58 to 65 hardened steel, stainless steel, Ti alloy |
| 65°Carbide end mill | HRC≈52 to 55 hardened steel,HRC58 to 65 hardened steel |
