| Quantity: | |
|---|---|
Coating
Spiral Tooth
Sparse Tooth
Indexable Type
Tungsten Steel
Face Milling Cutter
4 Flutes
50-200mm
Plastic Box or as Per Request
10PCS/Size
4.0-20.0mm
Plastic Box
1mm-20mm
EASYDRILL
China
10000PCS/Month
US$ 2.0/Piece 1 Piece(Min.Order) | Request Sample
Product Description
HRC 45 High Speed Black Solid Carbide Milling Cutter for wood
Material:Tungsten Carbide,Solid Carbide, 100% New Material
Single package size: 3X5X6 cm
Single gross weight: 0.3 kg
Coating: AlTiN, TiAIN, TiCN, TiN,Black
delivery time:
1-100pcs, 7-10days
over 100pcs: 15-20days
application:Carbide steel, Alloy steel,Tool steel.
Packing Detail:
1. One piece in a plastic, 10 pieces per group.
2. Use the air bubble paper to encase the plastic pipe.
3. Put the goods with air bubble paper in the carton.
4.Other packing will be accept according to your needs.

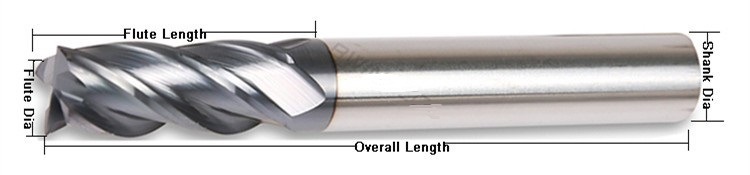

| Specification | Flute Dia(φ) | Flute Length (C) | Shank Dia(D) | Overall Length(L) |
| Φ1x3Cx4x50L | 1 | 3 | 4 | 50 |
| Φ1.5x4Cx4x50L | 1.5 | 4 | 4 | 50 |
| Φ2x6Cx4x50L | 2 | 6 | 4 | 50 |
| Φ2.5x8Cx4x50L | 2.5 | 8 | 4 | 50 |
| Φ3x8Cx4x50L | 3 | 8 | 4 | 50 |
| Φ3.5x10Cx4x50L | 3.5 | 10 | 4 | 50 |
| Φ4x10Cx4x50L | 4 | 10 | 4 | 50 |
| Φ5x13Cx6x50L | 5 | 13 | 6 | 50 |
| Φ6x15Cx6x50L | 6 | 15 | 6 | 50 |
| Φ8x20Cx8x60L | 8 | 20 | 8 | 60 |
| Φ4x20Cx4x75L | 4 | 20 | 4 | 75 |
| Φ5x20Cx6x75L | 5 | 20 | 6 | 75 |
| Φ6x20Cx6x75L | 6 | 20 | 6 | 75 |
| Φ8x25Cx8x75L | 8 | 25 | 8 | 75 |
| Φ10x25Cx10x75L | 10 | 25 | 10 | 75 |
| Φ12x30Cx12x75L | 12 | 30 | 12 | 75 |
| Φ4x25Cx4x100L | 4 | 25 | 4 | 100 |
| Φ5x25Cx6x100L | 5 | 25 | 6 | 100 |
| Φ6x30Cx6x100L | 6 | 30 | 6 | 100 |
| Φ8x35Cx8x100L | 8 | 35 | 8 | 100 |
| Φ10x40Cx10x100L | 10 | 40 | 10 | 100 |
| Φ12x45Cx12x100L | 12 | 45 | 12 | 100 |
| Φ14x40Cx14x100L | 14 | 40 | 14 | 100 |
| Φ16x40Cx16x100L | 16 | 40 | 16 | 100 |
| Φ18x40Cx18x100L | 18 | 40 | 18 | 100 |
| Φ20x45Cx20x100L | 20 | 45 | 20 | 100 |
| HRC | APPLICATION |
| 45°end mill for aluminium | Aluminum alloy, Copper alloy, Resin treatment |
| 45°Carbide end mill | Carbide steel, Alloy steel, Tool steel |
| 50°Carbide end mill | Carbide steel, Alloy steel, Tool steel, Hardened & tempered steel |
| 55°Aluminum end mill | Aluminum alloy,Copper alloy, Resin treatment |
| 55°Carbide end mill | Carbide steel, Alloy steel,tool steel,Hardened & tempered steel, HRC ≈52 hardened steel |
| 58°Carbide end mill | Hardened & tempered steel, HRC≈52 to 55 hardened steel |
| 60°Stainless steel end mill | Stainless steel, Ti alloy, |
| 60°Carbide end mill | Hardened & tempered steel, HRC≈52 to 55 hardened steel,HRC58 to 65 hardened steel, stainless steel, Ti alloy |
| 65°Carbide end mill | HRC≈52 to 55 hardened steel,HRC58 to 65 hardened steel |
