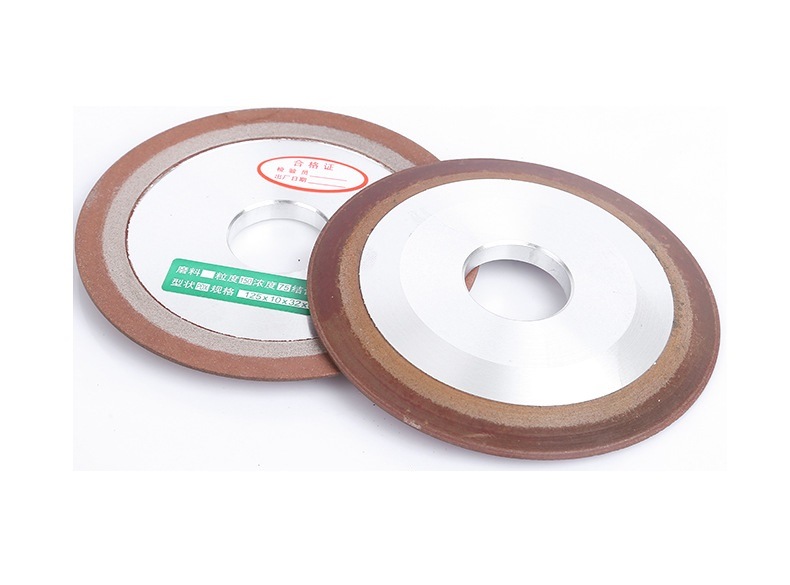

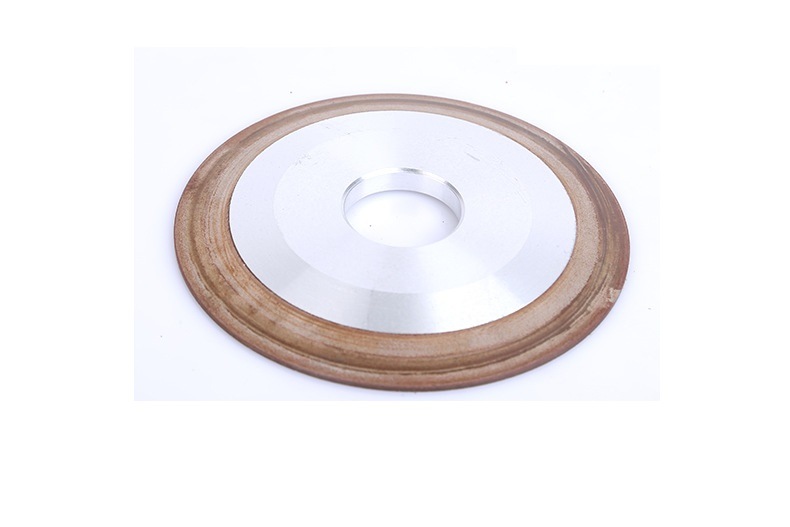

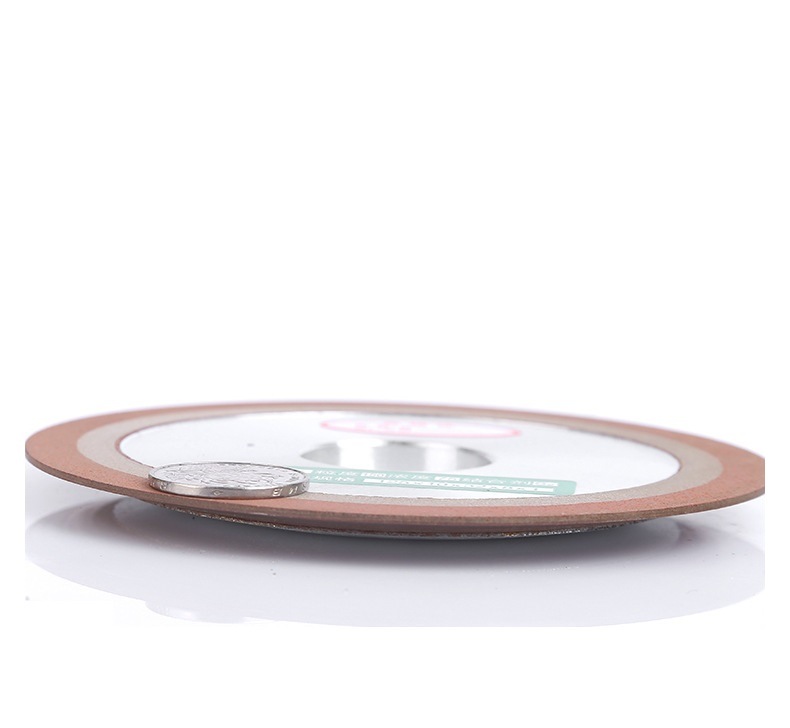

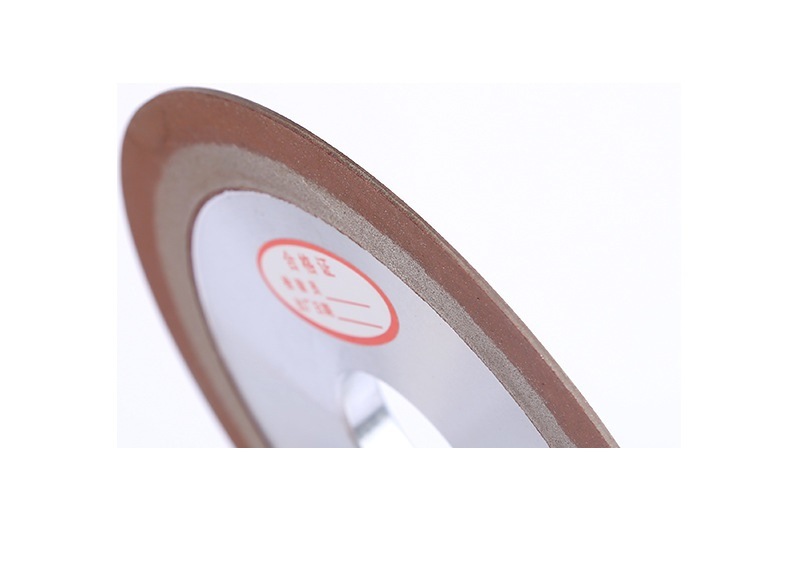

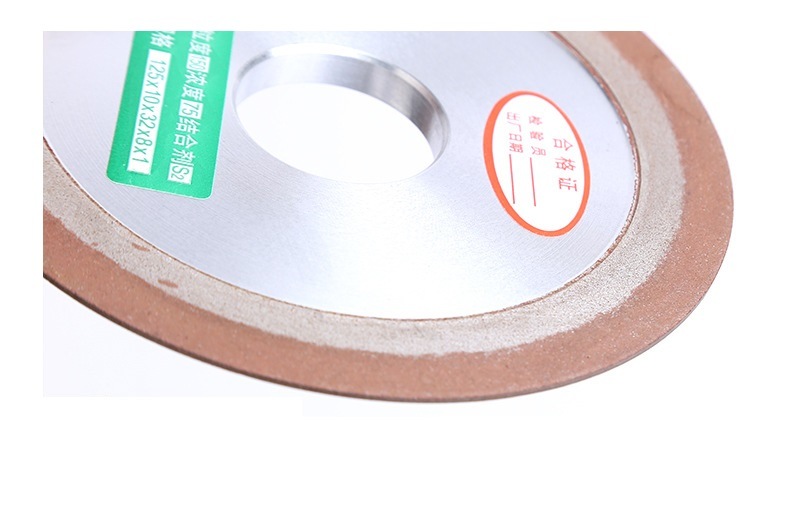

Diamond Resin Bond Grinding Wheel with One Side Bevel (SED-GW-OS)

Quantity:
  • Diamond

  • Superabrasive

  • Edge Shape

  • Surface Grinding Wheel

  • 46#

  • Sinter

  • SED-GW-OS

  • Tool Grinding

  • One Side Bevel

  • 80#-400#

  • 3.5mm

  • Box,Carton

  • Paper Box, Carton

  • SGS, ISO9001

  • EASYDRILL

  • China

  • 82079010

  • 20, 000PCS/Month

  • Available | Customized Request

Product Description

Diamond Resin bond Grinding Wheels with one side bevel

1.Diamond resin grinding wheel has a good polishing effect, grinding wheel sharp, easy to plug, the specific features are as follows: Resin Resin diamond grinding wheel diamond grinding wheel.
2.high grinding efficiency while consuming relatively slow grinding wheel;
3. self-sharpening, grinding, heat a small, easy to plug, reducing the grinding burn occurs when the phenomenon of work;
4. wheel has a certain degree of flexibility will help to improve the surface roughness, mainly used for grinding, semi-fine grinding, knife grinding, polishing and other processes;
5.diamond resin grinding is low temperature curing, short production cycle, equipment and supply process is relatively simple; due resin liquid, easy to shape complex plane of the wheel.
Application:
Resin bond diamond wheel: It is mainly used in grinding carbide, ceramics, magnetic, silic, self-fluxing alloy material.
Grit size incl. Mesh 80/100#, 100/120#, 120/140#, 140/170#, 170/200#, 200/230#, 230/270#, 270/325#, 325/400#

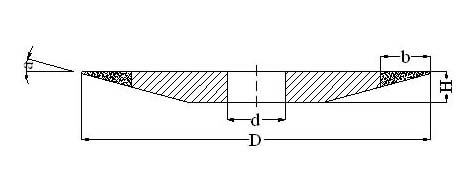

Description outer diameter(mm) thickness workingpart wideness(mm) working part thickness angle(ºC)
Single side parallel wheel 70,100,125,150,180,200 4,5,6,8,10 3.5
cup wheel1 80 27 5,10,15,20 3
100 40 60
125 40,45
150 5,10,15,20,25
parallel angle wheel 80 30 3-10 3,5,8,10 10,15,20
100
125
150
cup wheel2 50 38 5 2.5 60
75 10
100
125
150
