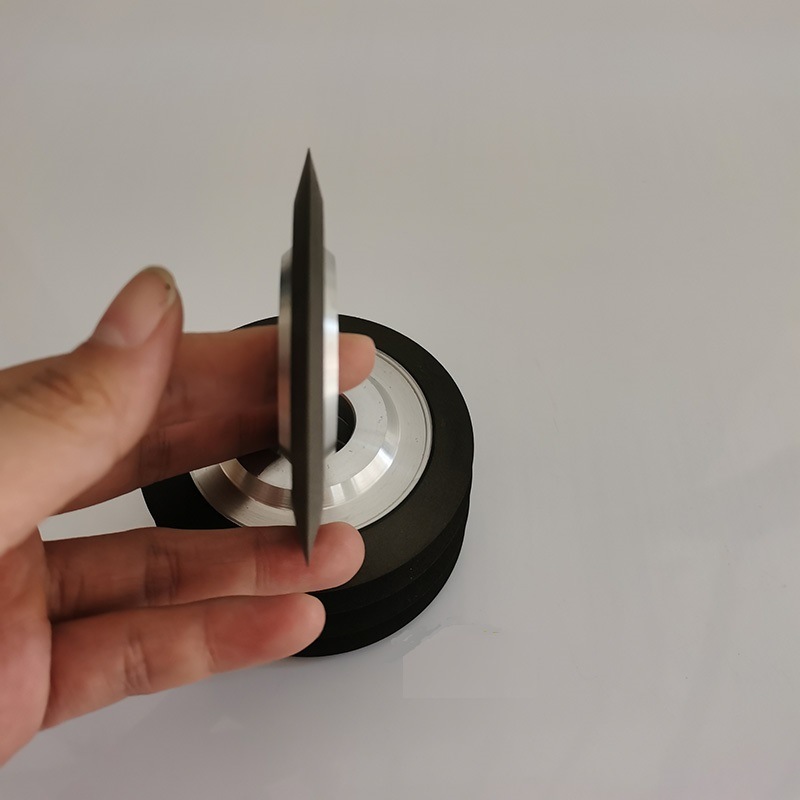

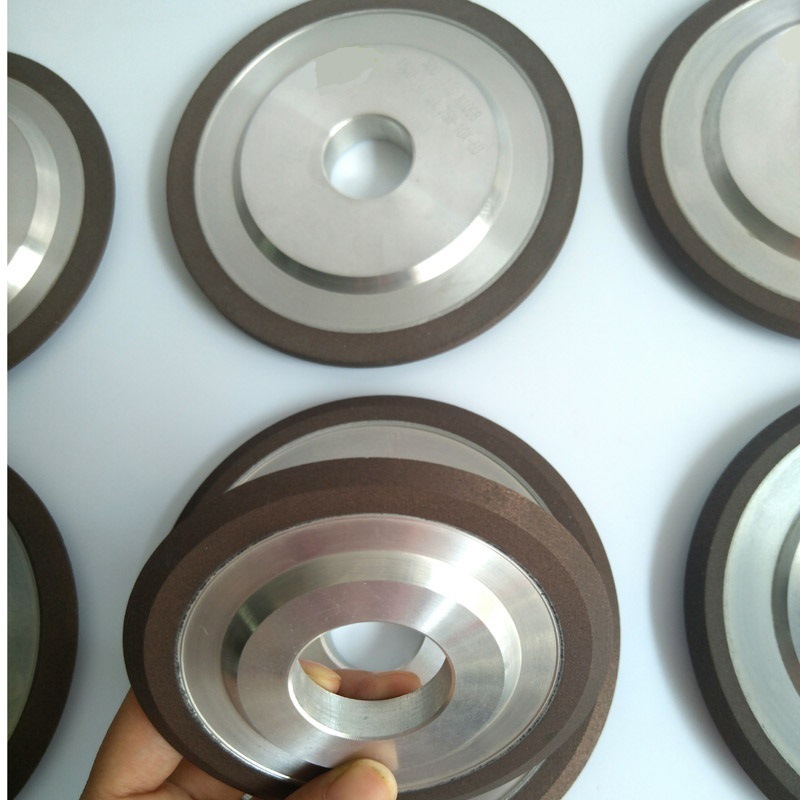

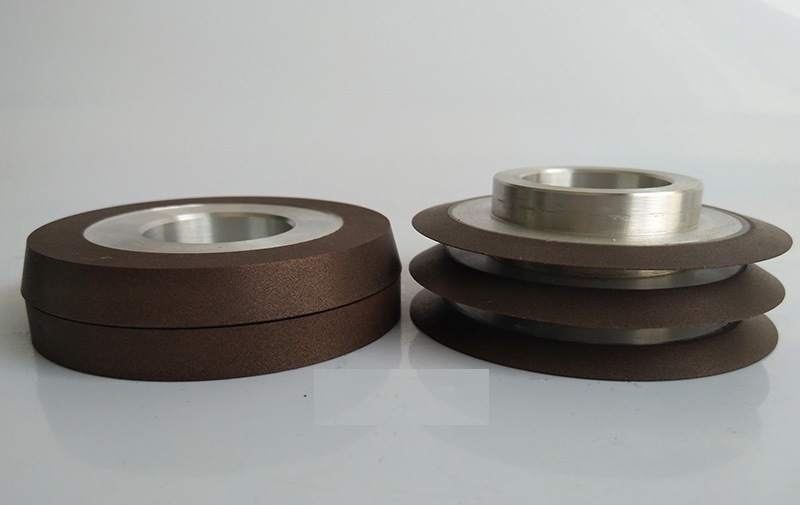

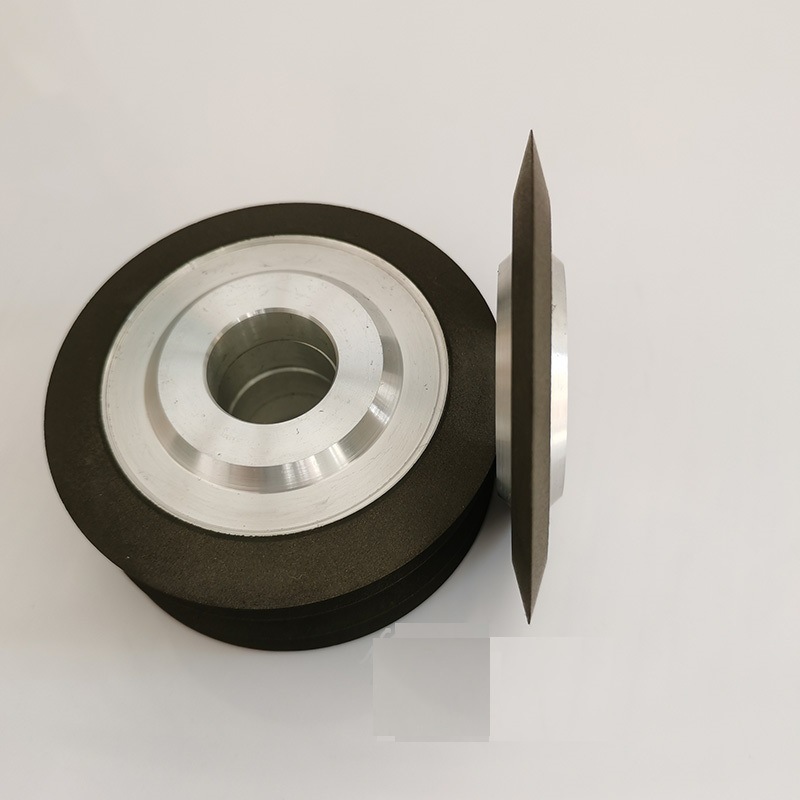

Diamond Resin Bond Grinding Wheel with Double Sides Bevel (SED-GW-BB)

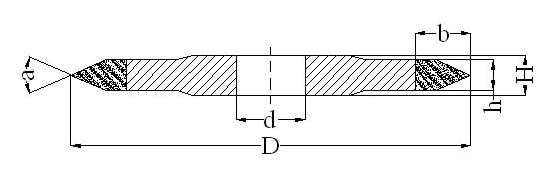

Diamond Resin bond Grinding Wheels with double sides bevel

1.Diamond resin grinding wheel has a good polishing effect, grinding wheel sharp, easy to plug, the specific features are as follows: Resin Resin diamond grinding wheel diamond grinding wheel.
2.high grinding efficiency while consuming relatively slow grinding wheel;
3. self-sharpening, grinding, heat a small, easy to plug, reducing the grinding burn occurs when the phenomenon of work;
4. wheel has a certain degree of flexibility will help to improve the surface roughness, mainly used for grinding, semi-fine grinding, knife grinding, polishing and other processes;
5.diamond resin grinding is low temperature curing, short production cycle, equipment and supply process is relatively simple; due resin liquid, easy to shape complex plane of the wheel.
Application:
Resin bond diamond wheel: It is mainly used in grinding carbide, ceramics, magnetic, silic, self-fluxing alloy material.
Grit size incl. Mesh 80/100#, 100/120#, 120/140#, 140/170#, 170/200#, 200/230#, 230/270#, 270/325#, 325/400#
