Diamond Cutting Tool Professional Laser Welded Circular Diamond Saw Blade (SED-DSB-LW)

Quantity:



Inquire Add to Basket

Blade Type:
Cutter Head
Manufacturing Process:
Brazing
Application:
Stone
Type:
Segmented
Size:
D350mm
Min Quantity:
10PCS/Size
Model NO.:
SED-DSB-LW
Shape:
Round
Manufacturing Arts:
Laser Welded
Usage:
Stone Cutting,Concrete Cutting
Transport Package:
Color Box, Strong Carton
Specification:
MPA, CE, SGS, ISO9001
Trademark:
EASYDRILL
Origin:
China
HS Code:
82023900
Production Capacity:
8, 000PCS/Month
Samples:
US$ 50/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Product Description

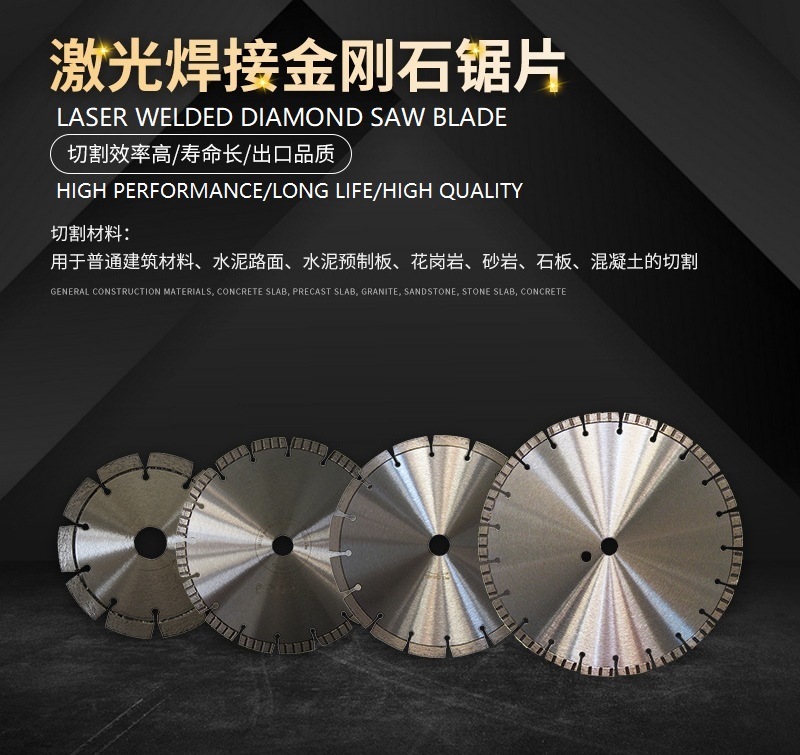

Laser Welded Diamond Saw Blade

1.Applicable for cutting concrete, hard paver, refractory material,reinforced concrete wall etc.
2.Laser welded bond ensures safety and durability.
3.Dry cut is available and wet cut is better.
4.Size: D400mm segment size:40*10*3.3
other sizes : 8"-30"are available
5.Sharpness: 30% Faster than normal segments. Noise reduction by 30%. Save 20% power absorption.
6. Cutting life: 30%-40% Higher than normal segments.
Our Excellent blade cutting speed and long cutting life,guarantee the lowest cutting cost and perfect cutting edge(smooth cutting).To get the detailed data,please feel free to contact us.

Diameter (mm)	Specification LxWxH (mm)	Segment Number	Cutting depth (m2/day)	Feed speed (m/min)	Cutting speed(m2/h)	Output(m2/disc)
200	40x3.2x8/10	14	20	3~5	1~3	12~15
250	40x3.2x8/10	18	20	3~5	1~3	14~17
300	40x3.2x10/12	21	20	3~5	1~3	16~20
350	40x3.2x10/12	24	20	3~5	1~3	18~23
400	40x3.4x10/12	28	20	3~5	1~3	20~25
450	40x3.6x10/12	32	20~50	2~4	1~3	22~27
500	40x4x10/12	36	20~50	2~4	1~3	35~47
550	40x4.6x12	40	20~50	2~4	1~3	40~52
600	40x4.6x10/12	42	20~50	2~4	1~3	43~57
700	40x5x10/12	46	20~50	2~4	1~3	65~85
750	40x5.5x10/12	48	20~50	2~4	1~3	77~97
800	40x5.5x10/12	50	20~50	2~4	1~3	85~105
850	40x6.0x10/12	54	20~50	2~4	1~3	92~110
900	24x6.9/6.1x13	64	30~60	1.5~4	2~3	200~270
1000	24x6.9/6.1x13	70	30~60	1.5~4	2~3	220~300
