DIN335c HSS Countersink with 5 Flutes (SED-CSD5)

Quantity:



Inquire Add to Basket

Customized:
Customized
Standard:
DIN
Length:
Jobber-length
Type:
Countersink Drill Bit
Material:
High Speed Steel
Usage:
Wood Drilling, Well Drilling, Metal Drilling, Masonry Drilling
Model NO.:
SED-CSD5
Package:
Box
Min Qty:
200PCS
Feature:
5flutes
Shank:
Round Shank or Quick Change Shank
Surface Finish:
Original
Transport Package:
Box
Specification:
5futes
Trademark:
EASYDRILL
Origin:
China
HS Code:
8207500
Production Capacity:
80000PCS/Month
Customization:
Available | Customized Request

Product Description

Product Description

DIN335C HSS Countersink with 5 Flutes

1. Ideal for chatter-free and burr-free work on sheet metal, nonferrous metal, cast iron, light metals;
2. It's designed for fast shearing and chatterless cuts;
3. It's with an exceptionally fine finish and can be run at maximum speed;
4. The cutting edges quickly center in hole and produce a smaller chip load for chatterless machining;

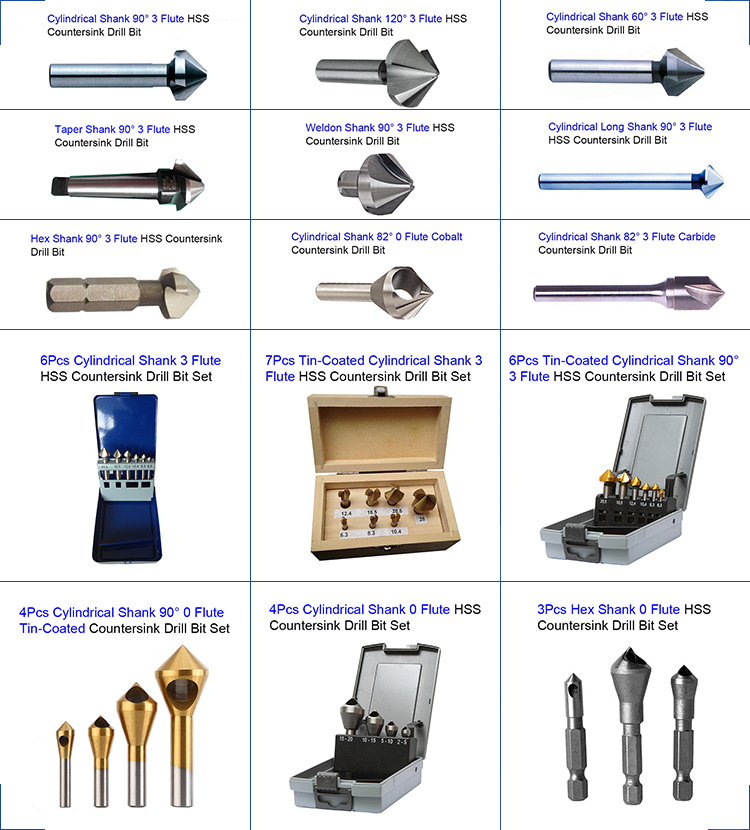

5. There are single flute, 3 flute, 5 flute, 6 flute available for your choice.
6.Standard:DIN335C
7.HSS, with cylindrical shank
8.CBN-deep-ground;Countersinks are deep-ground in the CBN Flutes. The 90° cone corresponds with the shape of the counter-sink screw or bolt head. Also available in 60°, 75°, and 120° versions. Radial back-off clearance makes it possible to work without rattling, and also removes chipos and swarf perfectly.

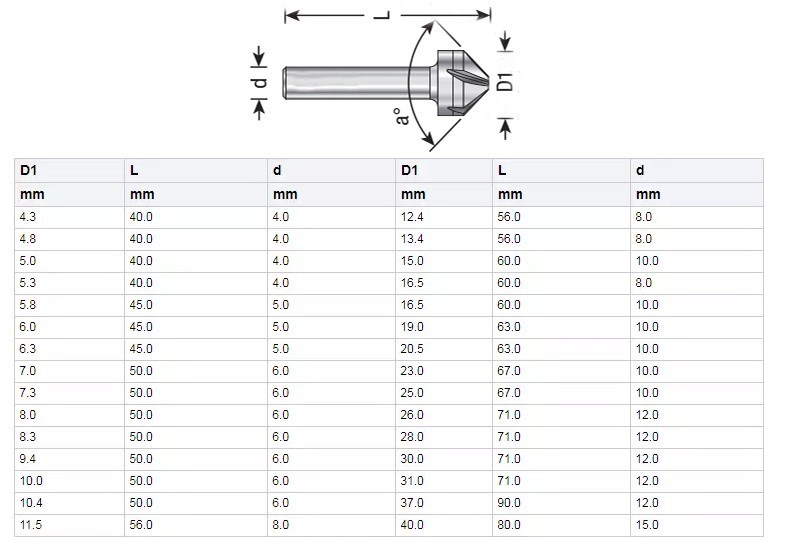

Size	Shank	Overall Length
10mm	6mm	90mm
13mm	6mm	90mm
16mm	6mm	90mm
20mm	8mm	90mm
3/4"	1/2"	2-3/4"
7/8"	1/2"	2-3/4"
1"	1/2"	2-3/4"
1-1/4"	3/4"	2-3/8"
1-1/2"	3/4"	2-3/8"
2"	3/4"	2-3/8"
