| Quantity: | |
|---|---|
Customized
DIN
Jobber-length
Countersink Drill Bit
High Speed Steel
Metal Drilling
SED-CS3F-60
1/2 Inch, 5/8 Inch, 3/4 Inch
Fully Ground or Forged
100PCS/Size
PVC Bag,Setcase,Plastic Box,Metal Box
Original
PVC Bag, Blister Card, Plastic Box, Metal Box etc
ISO9001, SGS, CE
EASYDRILL
China
820750900
200, 000PCS/Month
US$ 20/Piece 1 Piece(Min.Order) | Request Sample
Product Description

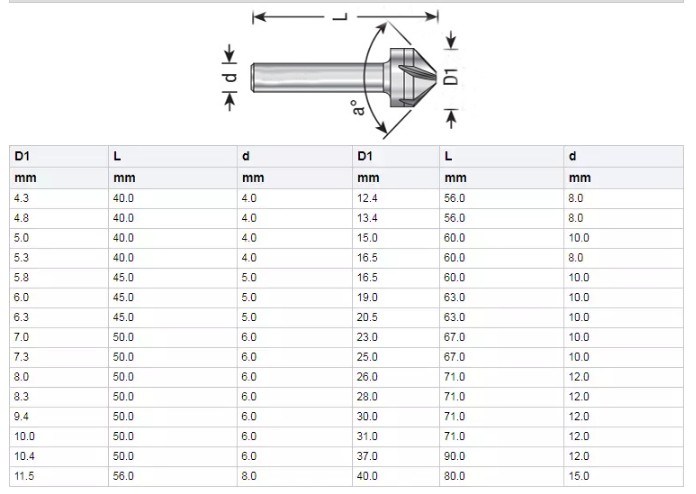

| Product Name | DIN334C Cylindrical Shank 60 Degree 3 Flute HSS Chamfer Countersink Drill Bit for Metal Deburring |
| Size | 4.3MM - 40.0MM |
| Material | High Speed Steel (Cobalt5%-M35, Carbide Steel , Carbon Steel are Available) |
| Flute Type | 3 Flute (5 Flute, Single Flute, 0 Flute, 6 Flute, 7 Flute, Multi Flute are Available) |
| Cutting Angle | 60° (120°, 90°, 82° are Available) |
| Shank Type | Round Shank (Hex Shank, Taper Shank, Tri-Flat Shank, Weldon Shank, Long Shank are Available) |
| Surface Finish | White (Tin-Coated, Black and White, Black, Black and Yellow are Available) |
| Package | 1 Piece in One Plastic Box (Double Blister Card is Available) |
| Features | 1. Three-flute designed to reduce clogging, improve clearance and be chatter free 2.High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance. 3.Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications. 4.Round shanks allow use with a wide variety of toolholding systems. 5.Made from industrial grade High-Speed Steel for increased durability. 6.Ideal for wooden planks,fiberboard,particle board,plywood,plastic,alumiumn board ,pcb board and more |
