DIN335c HSS Countersink with 3flutes (SED-CS3F)

Quantity:



Inquire Add to Basket

Customized:
Customized
Standard:
AISI
Length:
Jobber-length
Type:
Countersink Drill Bit
Material:
High Speed Steel
Usage:
Metal Drilling
Model NO.:
SED-CS3F
Packaging:
Box
Min Qty:
200PCS
Feature:
Countersink Burr
Shank:
Round Shank
Flute:
3 Flutes
Transport Package:
Box
Specification:
hollow cutter
Trademark:
EASYDRILL
Origin:
China
Production Capacity:
80000PCS/Month
Customization:
Available | Customized Request

Product Description

Product Description

DIN335C HSS Countersink with 3flutes
1. Ideal for chatter-free and burr-free work on sheet metal, nonferrous metal, cast iron, light metals;
2. It's designed for fast shearing and chatterless cuts;
3. It's with an exceptionally fine finish and can be run at maximum speed;
4. The cutting edges quickly center in hole and produce a smaller chip load for chatterless machining;

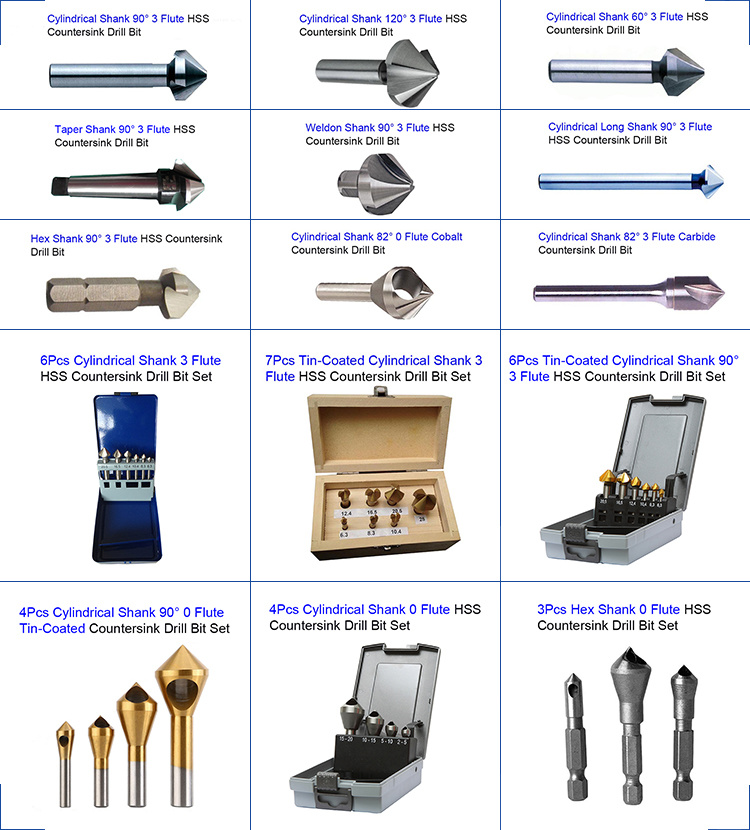

5. There are single flute, 3 flute, 5 flute, 6 flute available for your choice.
6.Standard:DIN335C
7.HSS, with cylindrical shank
8.CBN-deep-ground;Countersinks are deep-ground in the CBN Flutes. The 90° cone corresponds with the shape of the counter-sink screw or bolt head. Also available in 60°, 75°, and 120° versions. Radial back-off clearance makes it possible to work without rattling, and also removes chipos and swarf perfectly.

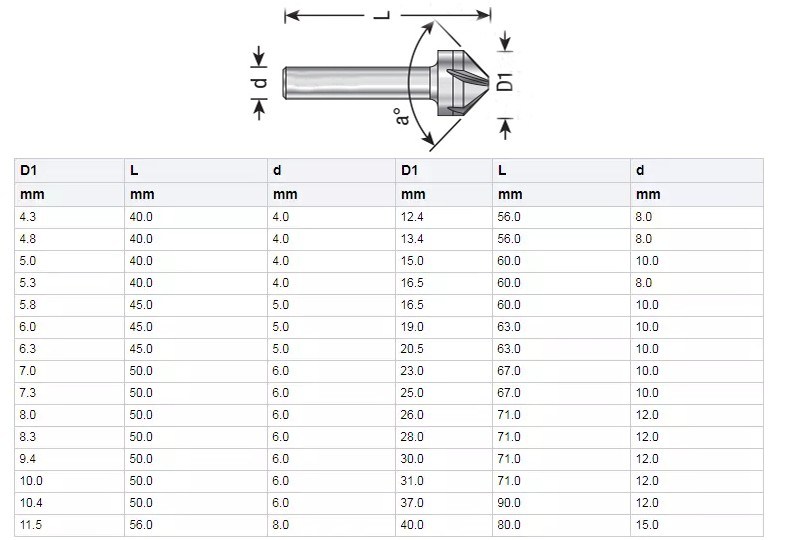

Size	overall L.	Shank Dia.
4.3	40mm	4.0mm
4.8	40mm	4.0mm
5	40mm	4.0mm
5.3	40mm	4.0mm
5.8	45mm	5.0mm
6	45mm	5.0mm
6.3	45mm	5.0mm
7	50mm	6.0mm
7.3	50mm	6.0mm
8	50mm	6.0mm
8.3	50mm	6.0mm
9.4	50mm	6.0mm
10	50mm	6.0mm
10.4	50mm	6.0mm
11.5	56mm	8.0mm
12.4	56mm	8.0mm
13.4	56mm	8.0mm
15	60mm	10.0mm
16.5	60mm	10.0mm
19	63mm	10.0mm
20.5	63mm	10.0mm
23	67mm	10.0mm
25	67mm	10.0mm
26	71mm	10.0mm
28	71mm	12.0mm
30	71mm	12.0mm
31	71mm	12.0mm
40	80mm	15.0mm
