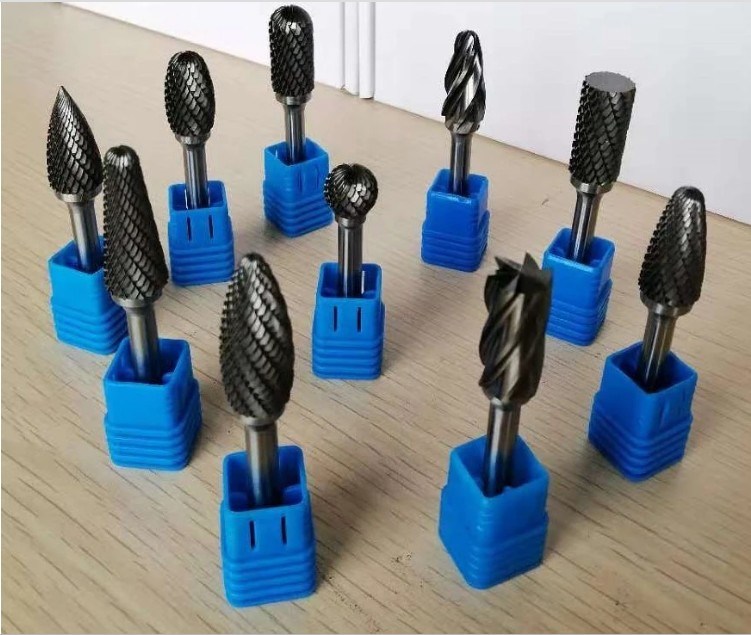

cone pointed tungsten carbide rotary burr carbide rotary files
Material: Tungsten Carbide
Shape: Many Different Shapes

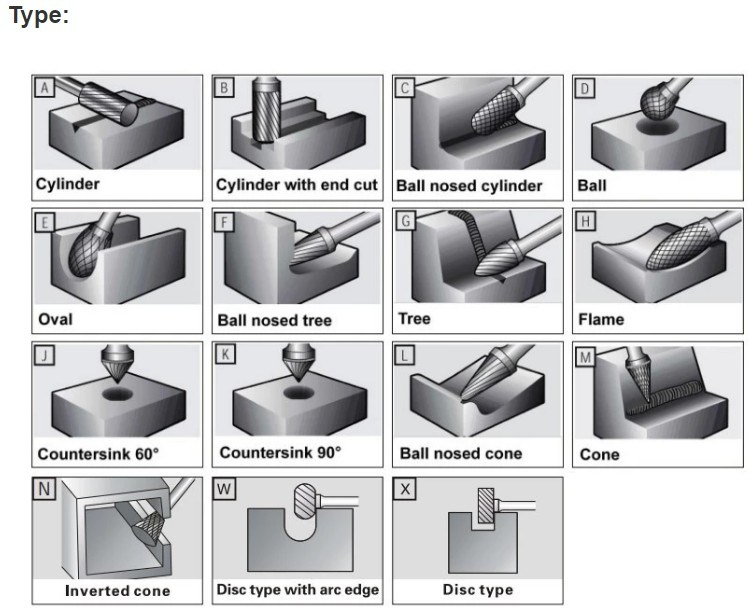

Type: Carbide Burrs, Type A/B/C/D/E/F/G/L etc.
Product Name: cylinder Tungsten Metal Burrs
Tool Type: Hand tool/power tool/pneumatic tool
Hardness: HRC≥70
Cut: double cut/single cut
Shank Diameter: 3mm/6mm or Customized
Overall Length: 50-200mm
packing: 1.Inside packing: each carbide burr is packed in a separate plastic case, separat protection is made to avoid damage.
2. Outside packing: carton box, usually in cartons size(40*30*20 cm)
Product Application
widely using on all kinds industrial department ,like machine,cars,vessel,Craft sculpture etc.
1.Fine finishing on all kinds of metal mould cavity,like shoes mould.
2.working on all kinds of metal and nonmetal's Craft sculpture.
3.cleaning those trimming,burrs and weld line on casting ,forge and weldment part.
4.chamfering and rounding and processing the bore surface on machine part , cleaning the pipeline.
5 sleeking on the impeller runner part.
Main Advantage
1. can cut all kinds of metal which hardness under HRC70(include quenched steel ),and those nonmetal (marble,jade,bone).
2. can instead of samll handle granding wheel on most works,and no any dust pollution
3. high peoduction efficiency,10 times higher than manual file and samll handle grinding wheel .
4.good quality processing,highly polishing,can work on all kinds of high-precision mould cavity .
5.longer working lifetime ,on durability side ,ten times longer than high speed steel tools,200 times longer than alumina grinding wheel.
6.Safe and easy using,can reduce workers' labour intensity and improve the working condition.
7.Enhancing the economic efficiency,ten time production cost will be saving . Application:
Widely used in machining iron, ship building, machinery, chemical industry, craft carving and other industrial departments.
1.Processing all kinds of metal workpieces, such as cast iron, cast steel, carbon steel, alloy steel, stainless steel, copper, aluminum and so on. Processing hardness up to HRA85.
2. Processing non-metal handicraft, such as marble, jade, bone.
3. Suitable for plastics processing and wood carving, etc.
*Cleaning trimming,veining and weld joint of casting, forging and weldment.
*Finishing all kinds of metal molds.
*Impeller passage of finishing processing.
*A variety of mechanical parts chamfer,round and groove processing.
*Inner hole surface of machinery parts finishing. | Diameter | Shank | Length of Flute | Length | Overall Length |
| 2 | 2.35 | 10 | 38.5 | 55 |
| 3 | 3 | 14 | 38.5 | 55 |
| 4 | 3 | 14 | 45 | 55 |
| 6 | 3 | 16 | 45 | 65 |
| 8 | 6 | 20 | 45 | 65 |
| 10 | 6 | 20 | 45 | 65 |
| 12 | 6 | 25 | 45 | 65 |
| 14 | 6 | 25 | 45 | 65 |
| 16 | 6 | 25 | 45 | 65 |
| Diameter | Length of Flute | Overall Length | Standard Cut |
| 1/8" | 1/2" | 2" | Standard |
| 3/16" | 5/8" | 2" | Standard |
| 1/4" | 5/8" | 2" | Standard |
| 1/4" | 1" | 2" | Standard |
| 5/16" | 3/4" | 2 1/2" | Standard |
| 3/8" | 3/4" | 2 1/2" | Standard |
| 3/8" | 1" | 2 3/4" | Standard |
| 7/16" | 1" | 2 3/4" | Standard |
| 1/2" | 1" | 2 3/4" | Standard |
| 5/8" | 1" | 2 3/4" | Standard |
| 3/4" | 1" | 2 3/4" | Standard |
| 1" | 1" | 2 3/4" | Standard |
| Diameter | Length of Flute | Overall Length | Double cut |
| 1/8" | 1/2" | 2" | double |
| 3/16" | 5/8" | 2" | double |
| 1/4" | 5/8" | 2" | double |
| 1/4" | 1" | 2" | double |
| 5/16" | 3/4" | 2 1/2" | double |
| 3/8" | 3/4" | 2 1/2" | double |
| 3/8" | 1" | 2 3/4" | double |
| 7/16" | 1" | 2 3/4" | double |
| 1/2" | 1" | 2 3/4" | double |
| 5/8" | 1" | 2 3/4" | double |
| 3/4" | 1" | 2 3/4" | double |
| 1" | 1" | 2 3/4" | double |
