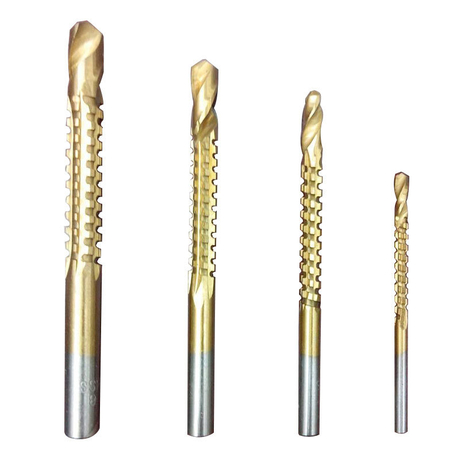

HSS Saw Drill Bits for woodworking
1.Material: HSS4241, 4341, 9341, M2, M35 Co5%, M42 Co8%.
2. Finish: Black finish, White finish, Tin-coated Finish, Amber / Coffee Finish.
3. Multi function bit drills, saws, and reams steel,cast steel,cast iron, brass, aluminum, wood and plastics.
4. Cross ground cutting edges for rapid, non clog cutting.
5. Fits any electric drill or drill press. Cuts own starting hole and any sharp in any direction tool is moved.

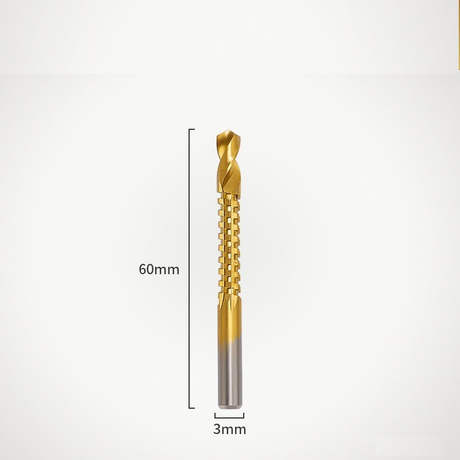

4.135degree split point, Dia. 6 and 8mm Length: 90mm, other sizes available.
5. HSS saw drill is for milling any type of contour in thin-walled materials.

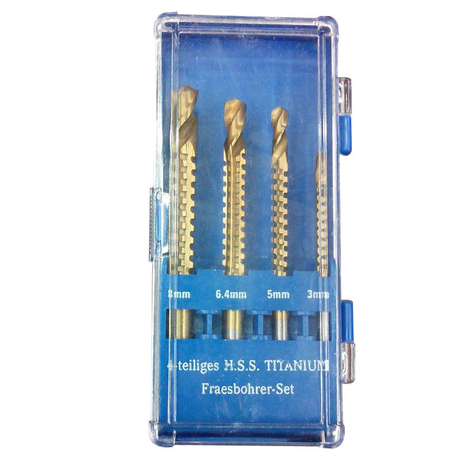

6.Package: PVC Pouch, Paper Box, Plastic Box, Plastic tube, Metal Box or as per the customer's requirement.
| Diameter(mm) | Length(mm) | Drilling Depth(mm) |
| 1.0-1.5 | 38 | 17 |
| 1.6-1.7 | 43 | 20 |
| 1.8-1.9 | 46 | 22 |
| 2.0-2.1 | 49 | 24 |
| 2.2-2.3 | 53 | 27 |
| 2.4-2.6 | 57 | 30 |
| 2.7-3.0 | 61 | 33 |
| 3.1-3.3 | 65 | 36 |
| 3.4-3.7 | 70 | 39 |
| 3.8-4.2 | 75 | 43 |
| 4.3-4.7 | 80 | 47 |
| 4.8-5.3 | 86 | 52 |
| 5.4-6.0 | 93 | 57 |
| 6.1-6.7 | 101 | 63 |
| 6.8-7.5 | 109 | 69 |
| 7.6-8.5 | 117 | 75 |
| 8.6-9.5 | 125 | 81 |
| 9.6-10.5 | 133 | 87 |
| 11-11.5 | 142 | 94 |
| 12 | 151 | 101 |
| 12.1-14 | 151 | 121 |
