Dmo5 HSS Circular Saw Blade for Cutting Stainless Steel (SED-HSSB-DM)

Quantity:



Inquire Add to Basket

Certification:
ISO9001:2008
Function:
Cutting
Shape:
Curve Saw Blade
Coating:
Nitride Saw Blade
Type:
HSS Saw Blade
Size:
D230mm
Model NO.:
SED-HSSB-DM
Application:
Stainless Steel Cutting
Material:
HSS Dmo5
Outer Size:
D200mm-D500mm
Surface Finish:
Ticn-Black
Transport Package:
Paper Box, Set Case
Specification:
SGS
Trademark:
EASYDRILL
Origin:
China
HS Code:
82023900
Production Capacity:
20, 000PCS/Month
Customization:
Available | Customized Request

Product Description

Product Description

Dmo5 HSS Circular Saw Blade for Cutting Stainless Steel

1, Circular saw blades in HSS Dmo5
2.Diameter: 200mm,225mm,275mm,300mm,315mm,325mm,350mm,370mm,380mm,400mm,425mm
3, Surface finish:It produces a layer of iron oxide(F33O40) on the surface, which increases the wear-resisting and increases the overall life. Suitable for general cutting work.
4.Tooth form: A/AW/B/BW/HZ

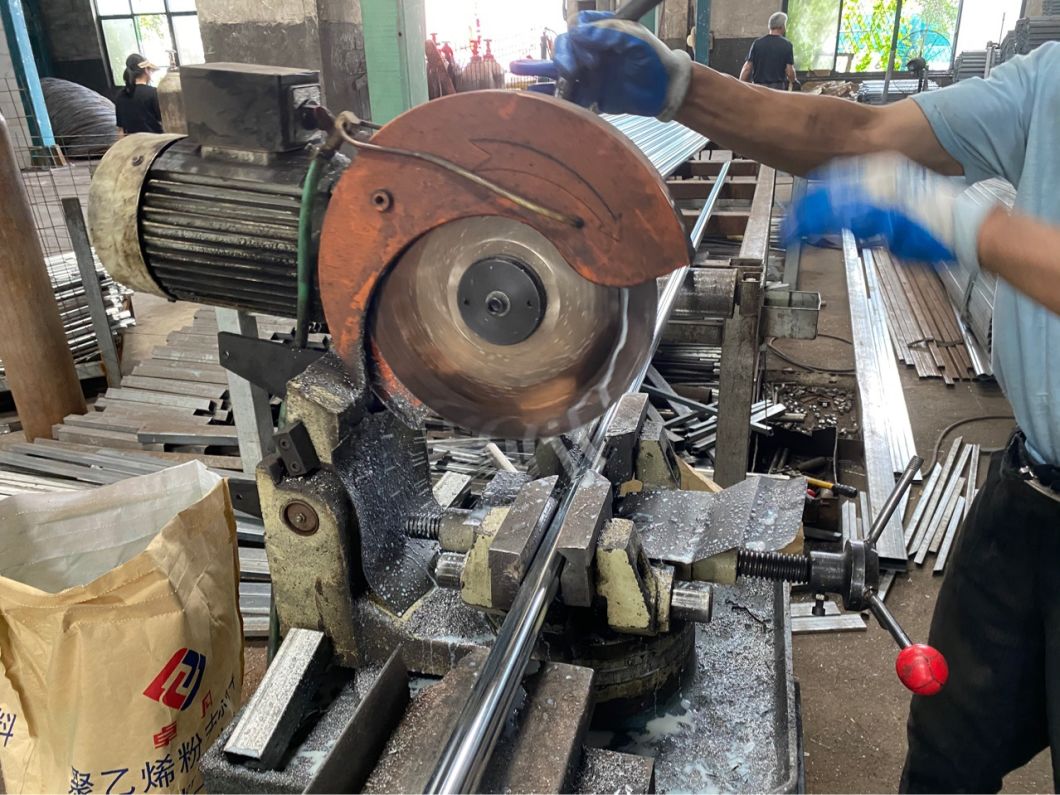

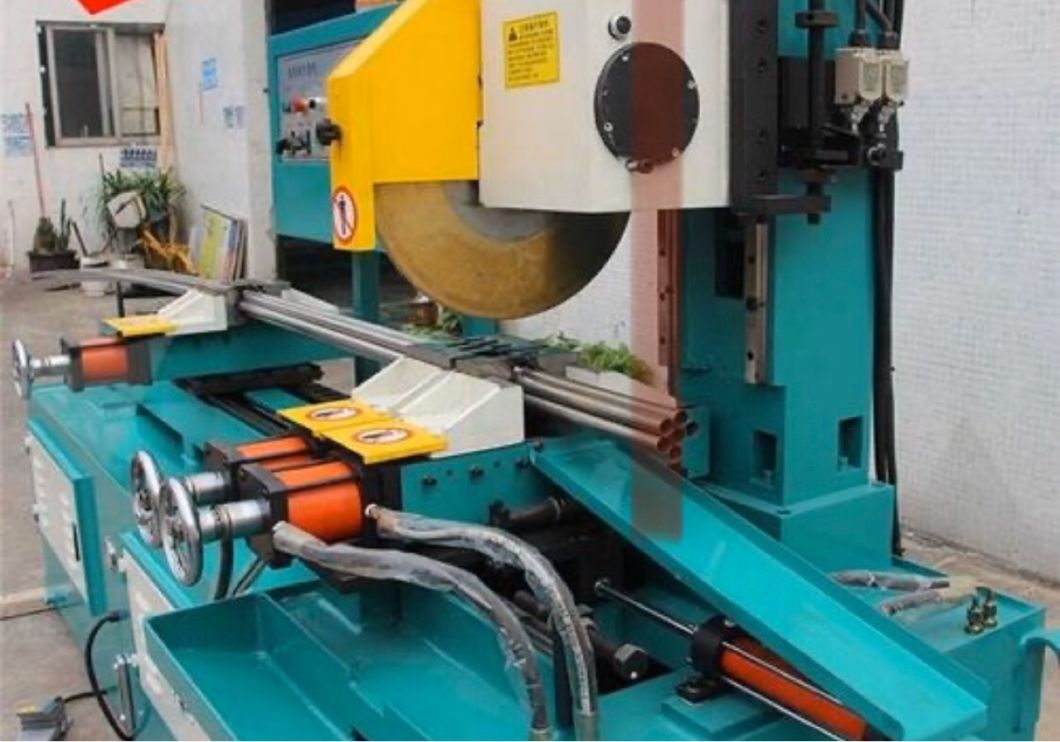

5.Used in Semi-automatic saqing machine.

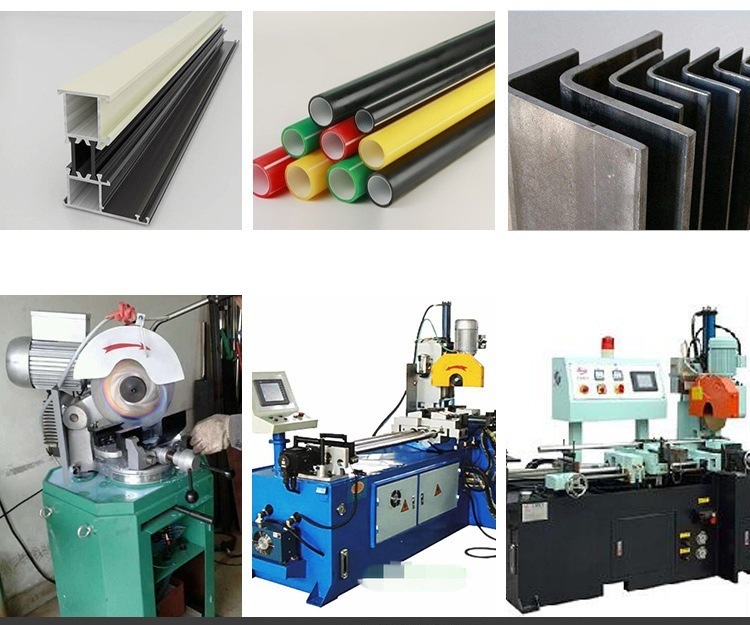

6.Application: For steel, iron, copper, aluminum and other metal materials under hard narrow and deep channel processing.
7.Different surface finish:
Titanium Nitrider Coating-TIN
Titanium Aluminium Nitride Coating-TIALN
Titanium Carbonit Nide Coating - TICN
Chromium Nitride Coating-Crn
8.Type: Teeth or without Teeth
9.Teeth Types: Acuate, arc stagger, rugged. It is made according to application

Diameter (mm)	Thickness (mm)	Bore (mm)	Hob (mm)	Diameter (mm)	Thickness (mm)	Bore (mm)
				300	1.6	32/40
200	1	32	100	300	2	32/40
200	1.2	32	100	300	2.5	32/38/40
200	1.5/1.6	32	90	300	3	32/40
200	1.8	32	90	315	2	32/40
200	2	25.4/32	90	315	2.5	32/40
200	2.5	32	90	315	3	32/40
210	2	32	90	315	3.5	32/40
225	1.2	32	100	325	2	32/40
225	1.5/1.6	32	90	325	2.5	32/40
225	1.8/1.9	32/40	90	325	3	40
225	2	32	90	350	2	32/40/50
225	2.5	32	90	350	2.5	32/40/50
250	1.2	32	100	350	3	32/40/50
250	1.5/1.6	32	100	350	3.5	32/40/50
250	2	25.4/32/40	90	370	2.5	40/50
250	2.5	25.4/32/40	90	370	3	32/40/50
250	3	32	90	370	3.5	40
275	1.6	32	100	400	2.5	40/50
275	2	32/40	90	400	3	40/50
275	2.5	25.4/32/40	90	400	3.5	40/50
275	3	32/40	90	400	4	50
300	1.6	32/40	100	425	2.5	40/50
300	2	32/40	100	425	3	40/50
300	2.5	32/38/40	90	425	3.5	50
300	3	32/40	90	425	4	50

Saw Blade Circular Saw Blade Cutting Blade
