DIN333 Tin-Coated HSS Spot Center Drills for Centre Drilling (SED-SCD-T)

Quantity:
  • Customized

  • DIN

  • Jobber-length

  • Center Drill Bit

  • High Speed Steel

  • Metal Drilling

  • SED-SCD-T

  • 1mm-20mm

  • Fully Ground or Forged

  • 100PCS

  • PVC Bag,Setcase,Plastic Box,Metal Box

  • Tincoated

  • PVC Bag, Blister Card, Plastic Box, Metal Box etc

  • ISO9001, SGS, CE

  • EASYDRILL

  • China

  • 820750900

  • 200, 000PCS/Month

  • US$ 100/Piece 1 Piece(Min.Order) | Request Sample

Product Description

DIN333 Tin-Coated HSS Spot Center Drills for Centre Drilling

Material:High Speed Steel, Co5%-M35
Use:Metal Drilling
Standard:DIN333A
Process:Fully Ground
Surface:tin-coated
Point Angle:60 Degree
Flute Type:Straight Flutes(2 Flute is Available)
Size:0.5MM-12.5MM
HRC:HRC63-67
Usage:Metal Drilling.
Procuct Name DIN333 Tin-Coated HSS Spot Center Drills for Centre Drilling
Material HSS4241,4341,6542(Co5%-M35,Carbide are Available)
Process Fully Ground
Flute

Straight Flutes(2 Flute is Available)

Surface Tin-coated(Bright Finishing,Amber,AlTiN coated ,are Available)
Size 0.5MM-12.5MM
Standard DIN333A(DIN333B,DIN333R,Extra Long ,GOST 14952-75 are Available)
Features

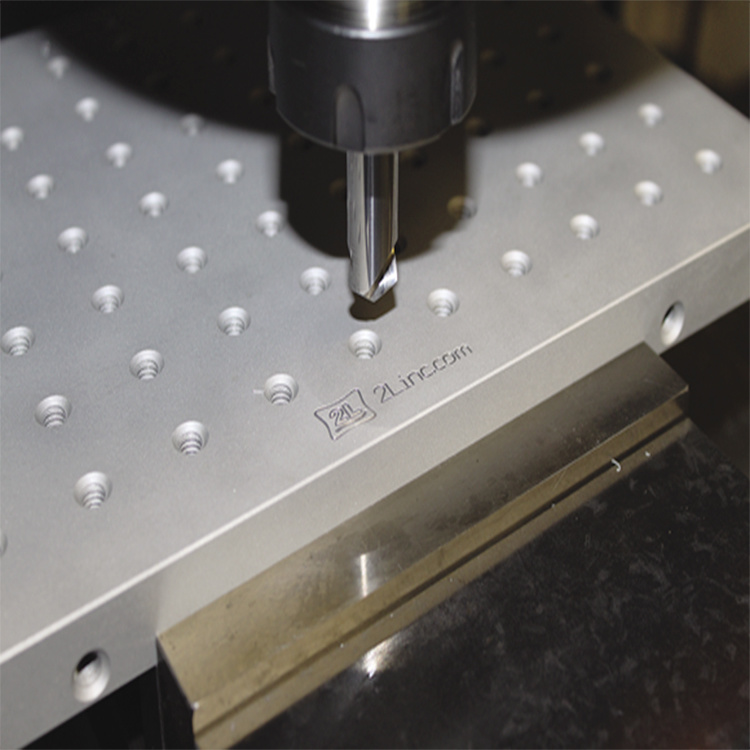

1.Center drill bits can be used to make conical holes for a lathe center in order to make a starting point for a standard twist drill, designed to prevent the twist drill from walking, as well as for producing center holds in components or work pieces with require machining between centers.
2.Available for all Kinds of Materials: Metal, Alloy, Copper, Iron, Wood, Aluminum, and so on.
3.Durable and Resistance: Center drill bit is made of HSS high speed steel, with extremely sharp blade, low consumption and durable with impact resistance, wear resistance.
4.center drills have flutes and cutting points on both ends. this allows the user with the ability to reverse the drill and utilize both ends.
5.Titanium-Coated High-Speed Steel for maximum durability and lasts up to 6X more than conventional bits. Titanium Coating acts to enhance the surface hardness of the drill to improve accuracy and reduce friction when drilling and also helps to control the temperature and wear resistance so as to increase efficiency

6.60 degree countersink angle fits all standard centers
7.High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance


DIN333 Tin-Coated HSS Spot Center Drills for Centre Drilling (SED-SCD-T)
DIN333 Tin-Coated HSS Spot Center Drills for Centre Drilling (SED-SCD-T) DIN333 Tin-Coated HSS Spot Center Drills for Centre Drilling (SED-SCD-T) DIN333 Tin-Coated HSS Spot Center Drills for Centre Drilling (SED-SCD-T) DIN333 Tin-Coated HSS Spot Center Drills for Centre Drilling (SED-SCD-T) DIN333 Tin-Coated HSS Spot Center Drills for Centre Drilling (SED-SCD-T)
