Competitive Wood Spade Flat Drill Bits (SED-FD)

Quantity:
  • Customized

  • DIN

  • Core Drill Bit

  • High Carbon Steel

  • Wood Drilling

  • Hex Shank

  • SED-FD

  • 6mm-55mm

  • 16mm*150mm

  • Wood Drilling

  • Pouch Bag, Blister Card, Plastic Box, Set Case

  • SGS

  • EASYDRILL

  • China

  • 820750900

  • 100, 000PCS/Month

  • US$ 0/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Wood Spade drill bits,Wood Flat Drill Bits

1. Material: High carbon steel or CV steel
2. Surface finishing: Polishing, Titanium coated, sand plated etc for choice;
3. Design for using in hand drills,electric portable drills,drill presses and lathes
4. hex shank;
5. Long life and fast drilling
6. Dia Size: 6mm-55mm.

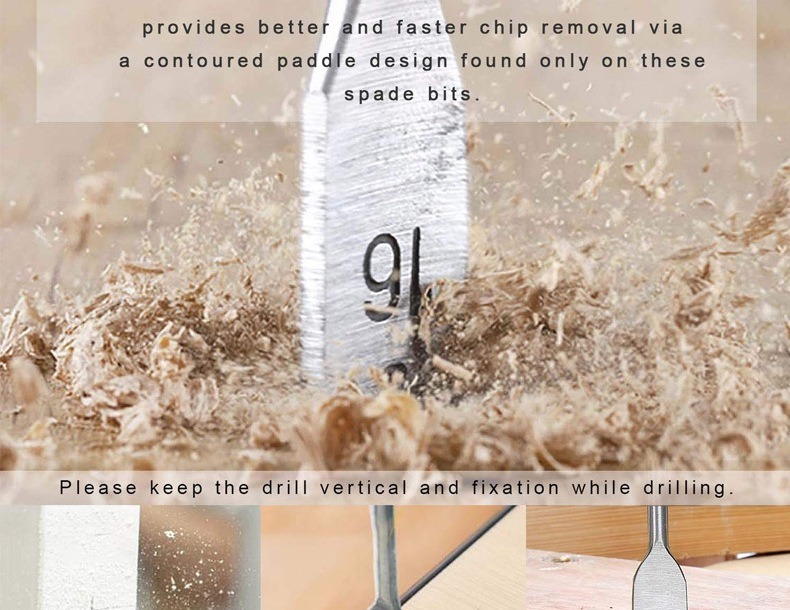

7.cutting flutes are engineered for optimum chip ejection so drill will not bindand burn out
8.angled cutting head and precision ground locating point.

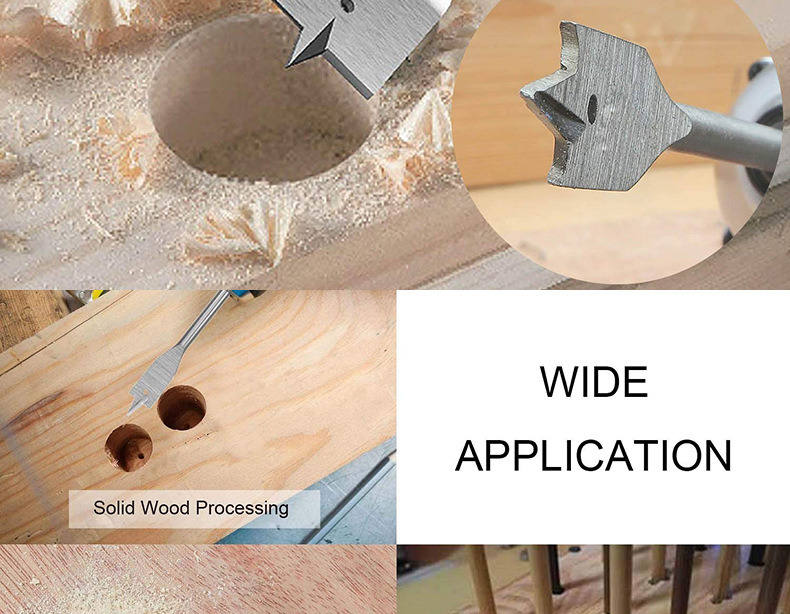

9.For fast accurate drilling into hardwoods, softwoods and man-made timber products. Suitable for most power drills
Diameter Overall Length Diameter Overall Length
mm inch Normal 300mm 400mm mm inch Normal 300mm 400mm
6 1/4 152mm(6") 12" 16" 22 7/8 152mm(6") 12" 16"
8 5/16 152mm(6") 12" 16" 24 15/16 152mm(6") 12" 16"
10 3/8 152mm(6") 12" 16" 25 1 152mm(6") 12" 16"
11 7/16 152mm(6") 12" 16" 26 1-1/32 152mm(6") 12" 16"
12 15/32 152mm(6") 12" 16" 28 1-1/8 152mm(6") 12" 16"
13 1/2 152mm(6") 12" 16" 30 1-3/16 152mm(6") 12" 16"
14 9/16 152mm(6") 12" 16" 32 1-1/4 152mm(6") 12" 16"
15 19/32 152mm(6") 12" 16" 34 1-5/16 152mm(6") 12" 16"
16 5/8 152mm(6") 12" 16" 35 1-3/8 152mm(6") 12" 16"
17 21/32 152mm(6") 12" 16" 36 1-7/16 152mm(6") 12" 16"
18 11/16 152mm(6") 12" 16" 38 1-1/2 152mm(6") 12" 16"
19 3/4 152mm(6") 12" 16" 40 1-9/16 152mm(6")
