Carbide Tip Wood Boring Drill Bits (SED-WBD)

Quantity:



Inquire Add to Basket

Customized:
Customized
Type:
Twist Drill Bit
Material:
Tungsten Carbide
Usage:
Wood Drilling
Dia:
3mm-15mm
Min Qty:
1000PCS/Size
Model NO.:
SED-WBD
Surface:
Red,Black,Blue etc
Package:
Plastic Box
Transport Package:
PVC Bag, Blister Card, Tube, Box etc
Specification:
4-15mm
Trademark:
EASYDRILL
Origin:
China
HS Code:
820750900
Production Capacity:
20, 000/Month
Customization:
Available | Customized Request

Product Description

Product Description

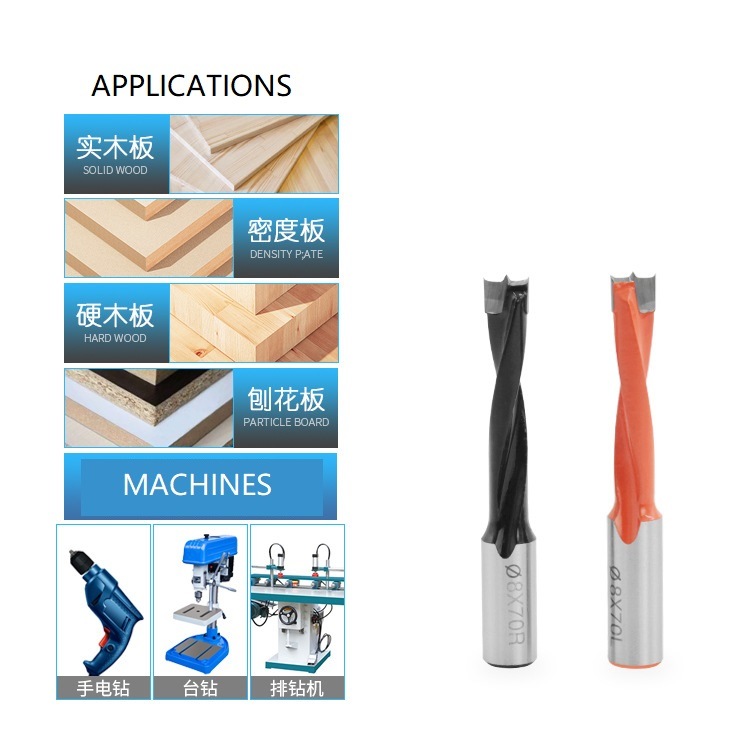

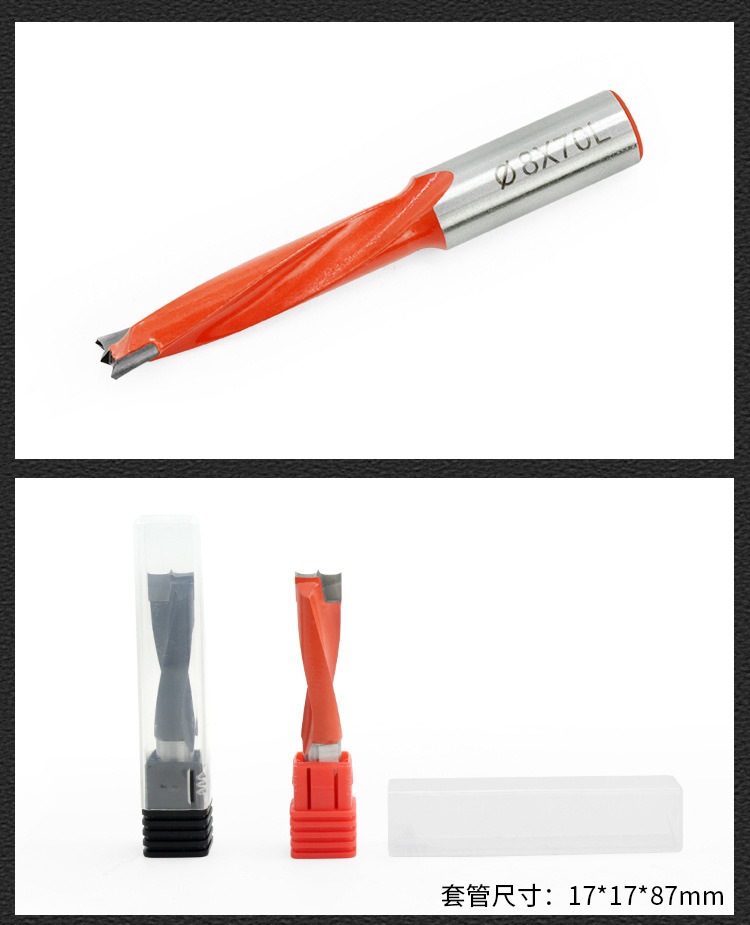

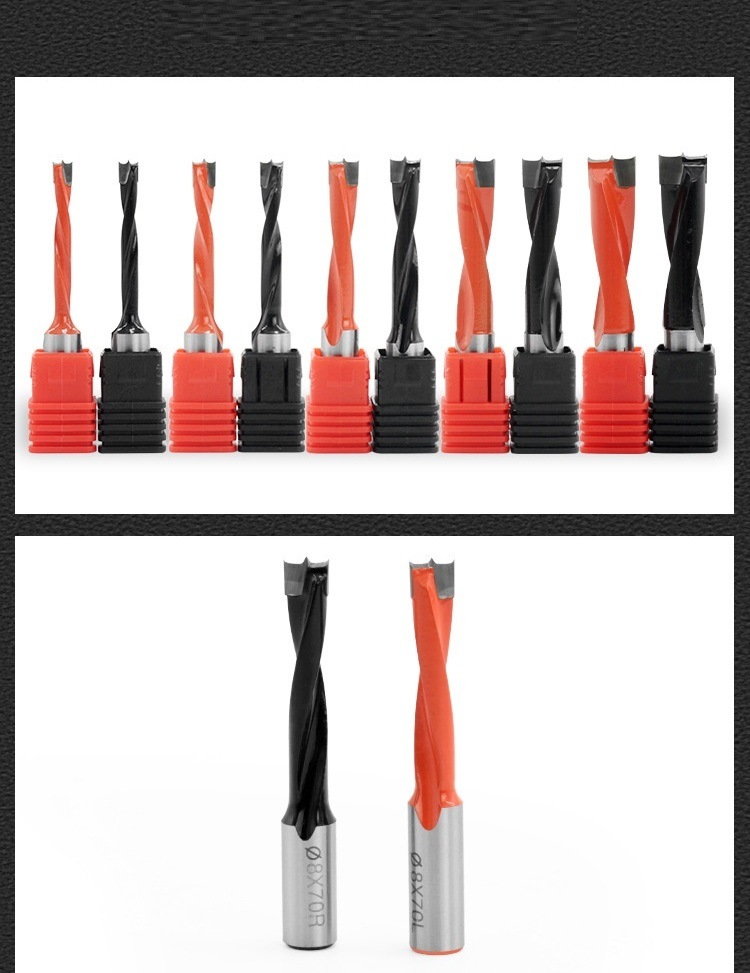

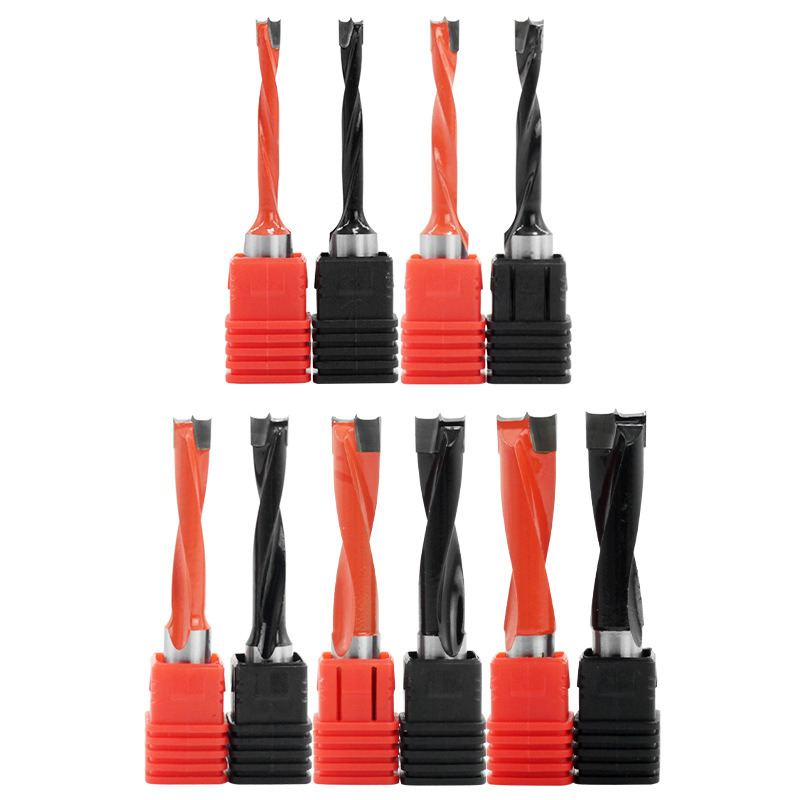

Wood Boring Drill Bits

1.material : tunsgten carbide
2.application: CNC machining center, RPM: 4500-8000r/min, Feed speed: 2-8m/min
3.Max. Hole depth: 20mm For 57mm drill; 33mm for 70mm drill;
4. High Precision;
5.Size:3*H57/70;

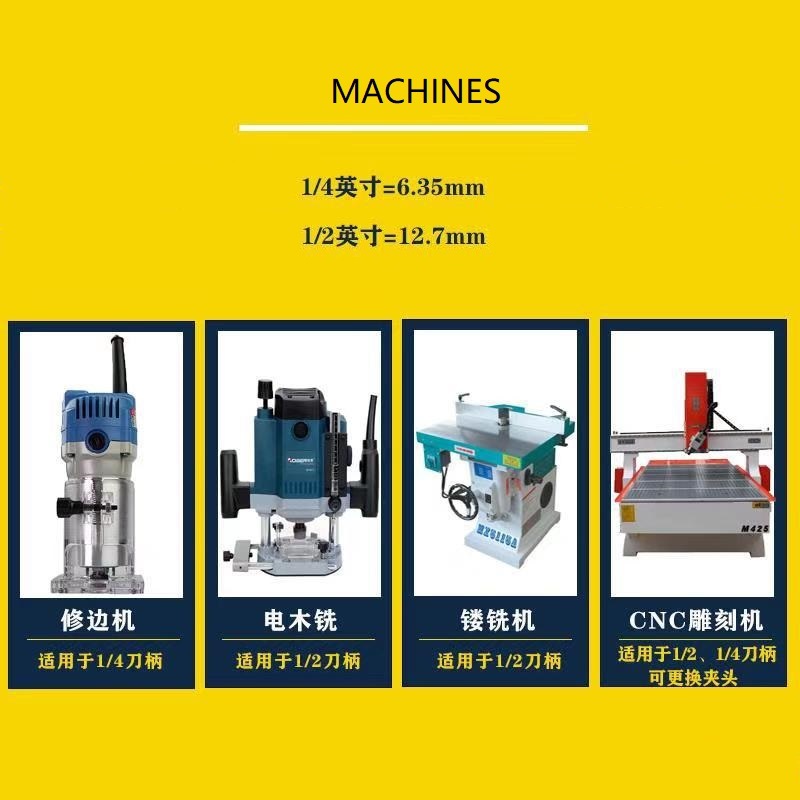

6. Drill Machine/CNC;
7. Certification:SGS, TUV/BV
8. Hole Diameter:<50mm; Number of Shaft:6
9.The advantages for Telfon Coating:
1). Heat-resisting, steady perdormance at high working temperature
2). Anti-sticking, high sliding for better chip removal
3). Better-corrodion resistance
4). With excellent adhesion properties with steel shank
5). Non-toxic
6). High hardness surface
7). Resistance to impact shocking
8). Good insulating ability and wear-resisting

Cutting Dia(mm)	Shank DiaSize(mm)	Shank Length (mm)	Overall Length(mm)
3	10	27/30	57/70
4	10	27/30	57/70
5	10	27/30	57/70
5.5	10	27/30	57/70
6	10	27/30	57/70
6.5	10	27/30	57/70
7	10	27/30	57/70
8	10	27/30	57/70
9	10	27/30	57/70
9.8	10	27/30	57/70
10	10	27/30	57/70
10.2	10	27/30	57/70
11	10	27/30	57/70
12	10	27/30	57/70
13	10	27/30	57/70
14	10	27/30	57/70
15	10	27/30	57/70
16	10	27/30	57/70
